Gold Note B-5.1 - Braccio

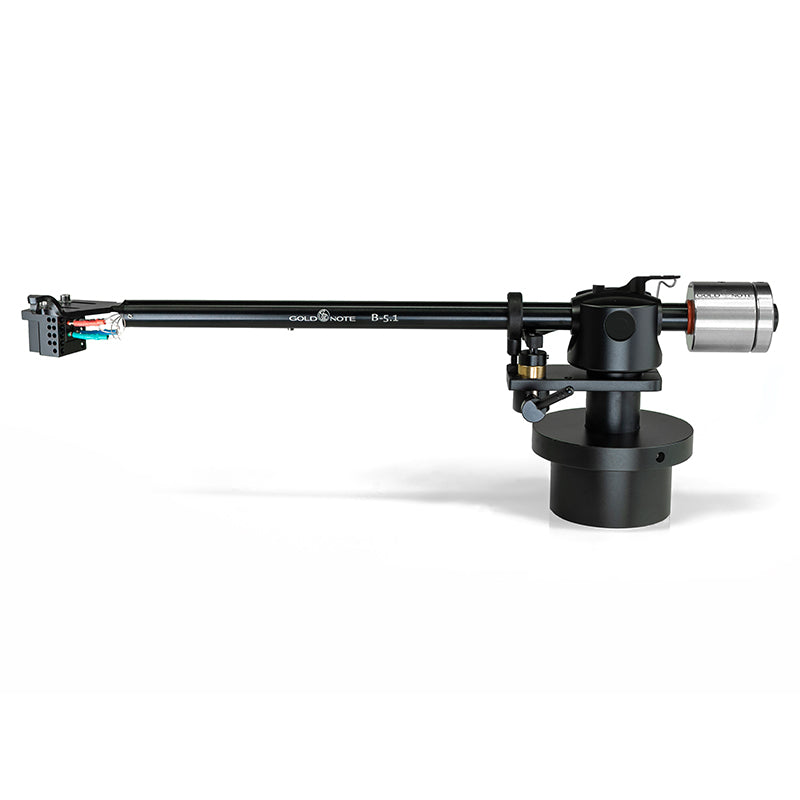

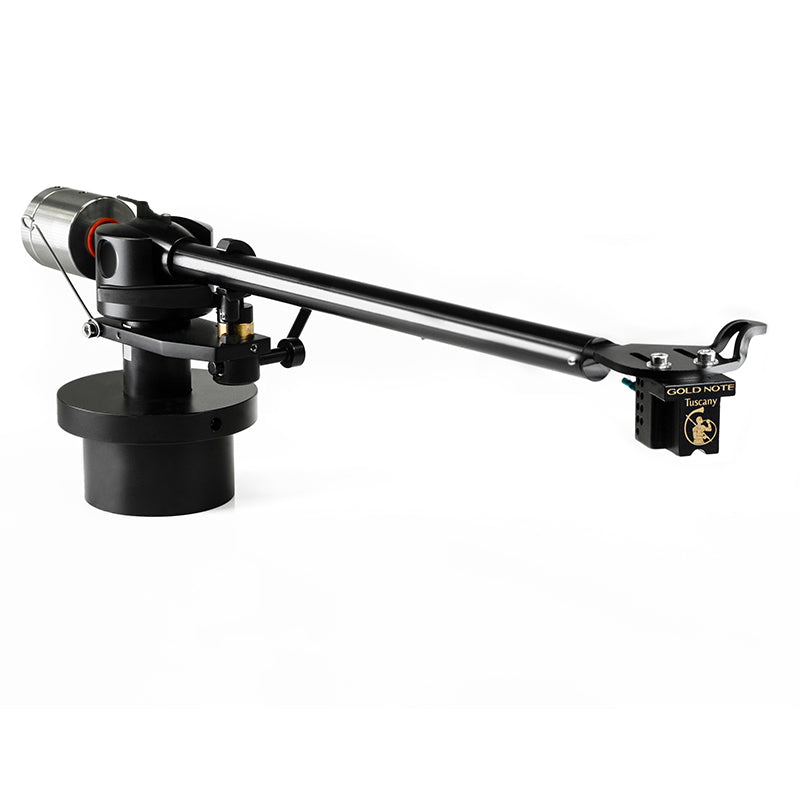

Braccio B-5.1
This high-precision tonearm combined with almost any cartridge will bring to life the most natural and detailed music. Made of extra high-quality Aluminium 6000, B-5.1 is our standard tonearm already pre-installed on Gold Note Mediterraneo, Pianosa and Giglio turntables.
HIGH-PRECISION TONEARM
B-5.1 is an elegant high-performance tonearm completely designed and handmade in Italy with the greatest attention to details to achieve maximum precision and to deliver the truly best sonic results.
The B-5.1 is powered by high-precision micro ball-bearings made in Germany by GRW – exclusively manufactured for Gold Note – singularly sealed and packed to preserve their perfect integrity.
The B-5.1’s effective length of 242mm with a 19mm overhang makes it easy to install on any turntable.
The tonearm features a double counterweight for perfect set up adjustment for virtually all phono cartridges. Optionally, extra weights are available to handle phono cartridges of higher mass.
The B-5.1 ultra precisely engineered tonearm will bring to life your favorite music getting natural, extra detailed and refined audio performances.
| TYPOLOGY |
9" Ball Bearing Tonearm |
|---|---|
| OVERHANG |
19mm |
| OFFSET |
24° |
| ARM WAND |
Straight aluminium 6000 alloy |
| INSERTING PLINTH SHAFT |
23mm |
| DYNAMIC EFFECTIVE MASS |
10g |
| VTF |
0.186N (19g) |
| VTA |
Adjustable on collar |
| LIFT |
Hydraulic |
| ANTI-SKATING |
Wire 5 position |
| AZIMUTH |
Adjustable on the headshell |
| INTERNAL CABLES |
AWG36 Hyper Litz shielded 99,99% OFC |
| EXTERNAL CABLES SUPPLIED |
1,5m custom 4 pole DIN/RCA |
| DIMENSIONS |
Effective length: 242 mm |
| WEIGHT |
195g (without counterweight) |
| FINISHES |
Shell and Pivot: Black anodized Aluminium |
