Gold Note PA-1175 MKII - Amplificatore di potenza
PA-1175 MkII - Potenza ed eleganza
Un amplificatore di linea con Damping Factor selezionabile, per un facile abbinamento con tanti tipi diversi di diffusori.
4 coppie di transistor finali per canale, capace di esprimere la considerevole potenza di 520watt per canale in mono.
Un sistema di BIAS proprietario a generatore di corrente costante per sviluppare potenza elevata ma con un minimo livello di distorsione.
Utile sistema di selezione del fattore di smorzamento che permette di impostare l’amplificatore a 250DF oppure 25DF.
La tecnologia Bridge-Tied-Load consente di mettere a ponte l’amplificatore stereo, trasformandolo con facilità in un finale mono.

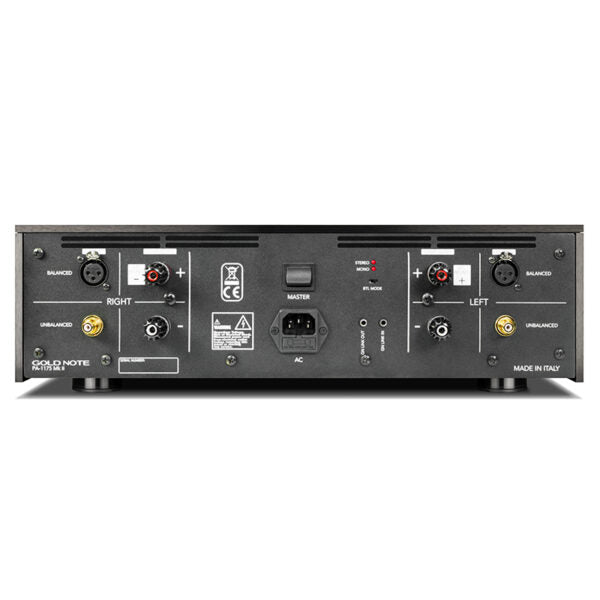

Here comes the best power amplifier ever made by Gold Note: PA-1175 MkII is the revised version of Gold Note’s first stereo amplifier, which replaced the awarded Demidoff Anniversary amplifier in 2017. Featuring 4 matched pairs of transistors per channel with a proprietary Gold Note optical BIAS system and a constant current generator which enables high currents and high power rates with ultra low distortion. Top-level electronic components combined with outer RCA and XLR connections as well as original Rhodium Gold Note speaker terminals complete the PA-1175 MkII’s high-level quality. It distinguishes itself by means of an adjustable damping factor (25/250DF) in order to drive any kind of loudspeaker on the market.
THE CONTEMPORARY POWER AMPLIFIER
The PA-1175 MkII is the second generation of Gold Note High-End stereo Class-A/B Power Amplifier. Its new solid state design features a proprietary Gold Note Optical BIAS proprietary creation that enables a constant current generator to achieve high current and high power with ultra low distortion.
Our proprietary and innovative Optical BIAS design controls the voltage of the unit. It features optical decoupling to overcome the downgrading solutions of traditional electronics. Analysing optically the signal while it gets completely separated from the audio signal path assures highest protection and unbeatable performance.
To avoid RFI and EMI interferences, the PA-1175 MkII is made of a massive steel chassis and thick aluminium panels vented by the unmistakable Gold Note curved slots design.
The BTL technology [Bridge-Tied-Load] allows the unit to be easily bridged in order to work as a mono amplifier. The remarkable 200W @ 8Ω per channel in stereo mode grow up to a considerable 520W per channel in mono. Pushing further the pure audio performance, it allows the PA-1175 MkII to drive easily the most demanding power speakers on the market.

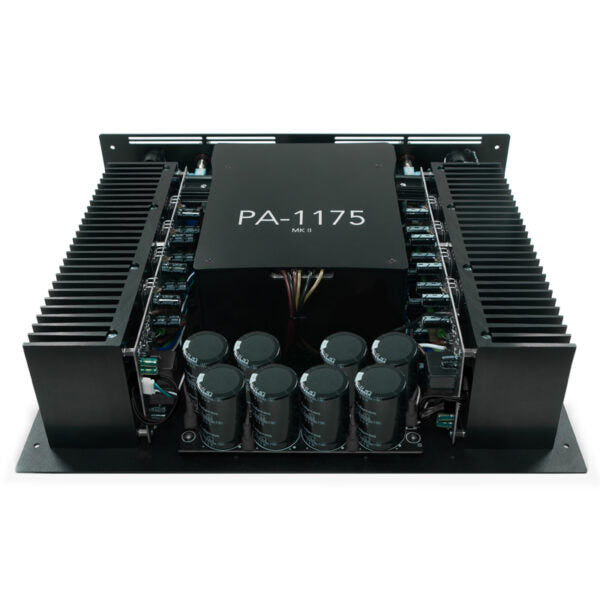

The PA-1175 MkII power transformer is a special toroidal model featuring a unique cut spiral nucleus. The refined mechanical process makes the nucleus completely stable, canceling any mechanical vibration to guarantee a terrific performance and perfect insulation, while a small secondary transformer powers the auxiliary functions with dedicated circuits outside of the audio path signal.
The PA-1175 MkII is an outstanding power amplifier featuring a proprietary adjustable Damping Factor technology that can be easily selected from the front panel. Setting the Damping Factor to 250 or 25 will let you find the ideal match with any kind of speaker. Use it at 250 to get the power and control necessary to drive large, low- sensitivity speakers or set it at 25 to use the amplifier as if it was a low-power tube amplifier, perfect to drive high-sensitivity and mini monitor speakers.
200W@8Ω per channel [520W@8Ω in mono BTL]
|RISPOSTA IN FREQUENZA||
1Hz – 100KHz @ ± 1dB
|THD (TOTAL HARMONIC DISTORTION)||
<0.01% @ 20Hz-20kHz
|SIGNAL TO NOISE RATIO||
1000mV RCA and 4000mV XLR
1200W max – 1,2 W idle
640VA custom GN toroidal
430mm W 135mm H 370mm D
Kg. 20.5 net
Brushed Aluminium in Black, Silver or Gold
