Pre Fono PH-10
2 ingressi stereo RCA indipendenti
È possibile collegare due testine contemporaneamente regolandole in modo indipendente sia MM che MC.
6 curve EQ
Permette di selezionare tre curve di equalizzazione (RIAA, DECCA-LONDON e AMERICAN COLUMBIA), tutte con funzione “Enhanced”.
Attraverso il monitor a colori tutte le opzioni sono sempre visibili, grazie alla gestione grafica in tempo reale del display.
Single Knob Control
La manopola di regolazione consente il controllo completo del preamplificatore in modo facile ed intuitivo.
Una nuova generazione di Pre Phono
Un pre phono sofisticato e innovativo che consente l’ideale riproduzione dei vinili.

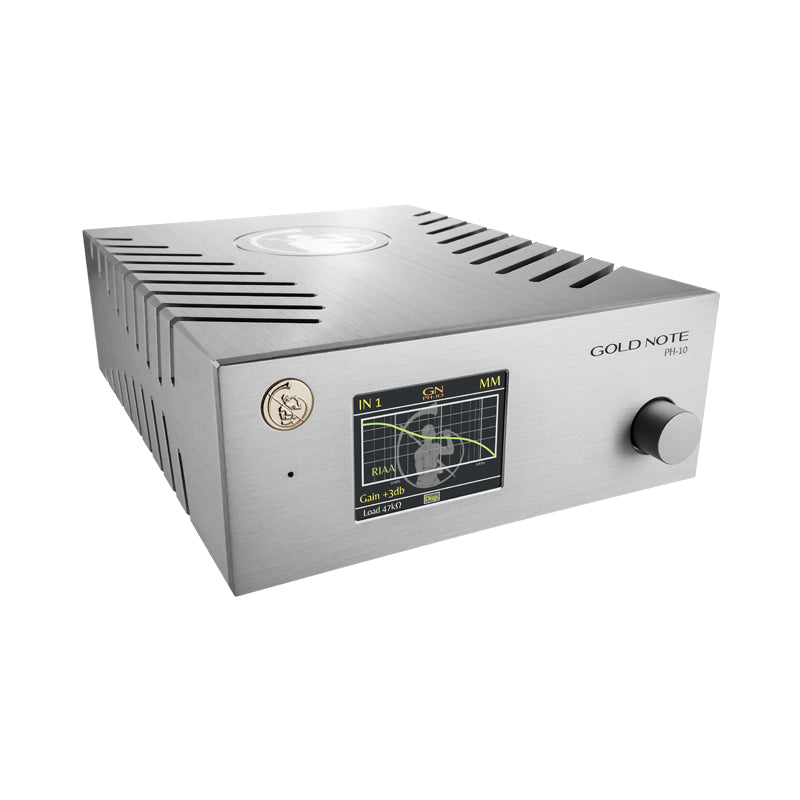

Designed to achieve the best possible sound and total control over the listening experience, on PH-10 everything has found its rightful place: on the front panel the large TFT display shows all the settings information through an intuitive and easy to read graphic. PH-10 also features our Single Knob Control technology, an elegant solution to browse and change functions instantly that lets you enjoy the maximum of your audio system by finding the perfect match between PH-10 and your MM or MC cartridges through intuitive gestures, without the need to disconnect cables or adjust switches. It has never been easier to extract the most detail from your vinyls!
THE MOST AWARDED PHONO STAGE
The PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD and GAIN adjustments: a fully analogue design engineered exclusively with the best components to recreate the musical event in the most natural way possible. Being the first amplification stage of the audio chain, the phono stage assumes great importance and this is why the PH-10 offers the very best sound and versatility using the latest technology.
To control the PH-10 we developed the user friendly Single Knob Control (SKG). Combined with the color display this rotary joggle allows quick adjustments of any function in real time during music playback.
The PH-10 lets you select the most appropriate EQ curve for every record: the RIAA, the DECCA-LONDON or the AMERICAN- CBS-COLUMBIA. All selection appears clearly as a graph on the large display. Each curve is enhanced by a modern Gold Note proprietary design that derived from the Neumann master cut machine project for superior dynamic and high-frequency extension.
The perfect cartridge matching is guaranteed with up to 9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ] and 4 different selectable GAIN levels [-3dB, 0dB, +3dB, +6dB] that will let you adjust the preamplifier accurately to achieve the best sound experience with any kind of MM and MC cartridges.
With his two separate RCA inputs the PH-10 can be connected to two different tonearms, each with independently adjustable settings stored into memory, even when the unit is switched off. This guarantees to the audiophile a unique flexibility and impressive user-friendliness.
To maximise the performance of the PH-10, we also developed the PSU-10, a dedicated external super inductive power supply that allows the PH-10 to achieve its fullest potential, reaching an even higher degree of musical realism, better dynamics and greater three-dimensionality sound.
2 ingressi MM/MC RCA indipendenti
Stereo unbalanced RCA and balanced XLR
|IMPEDENZA DI USCITA||
|TOTAL HARMONIC DISTORTION THD||
|SIGNAL TO NOISE RATIO||
|RISPOSTA IN FREQUENZA||
20Hz – 20KHz
|LINE OUTPUTS LEVEL (FIXED)||
Stereo RCA @ 2V and balanced XLR @4V
|CAPACITANZA INGRESSO MM||
0.1mV MC up to 7.0mV MM
9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ]
100-120V / 220-240V, 50/60Hz
200mm W 80mm H 260mm D
Alluminio spazzolato Nero, Oro o Argento
