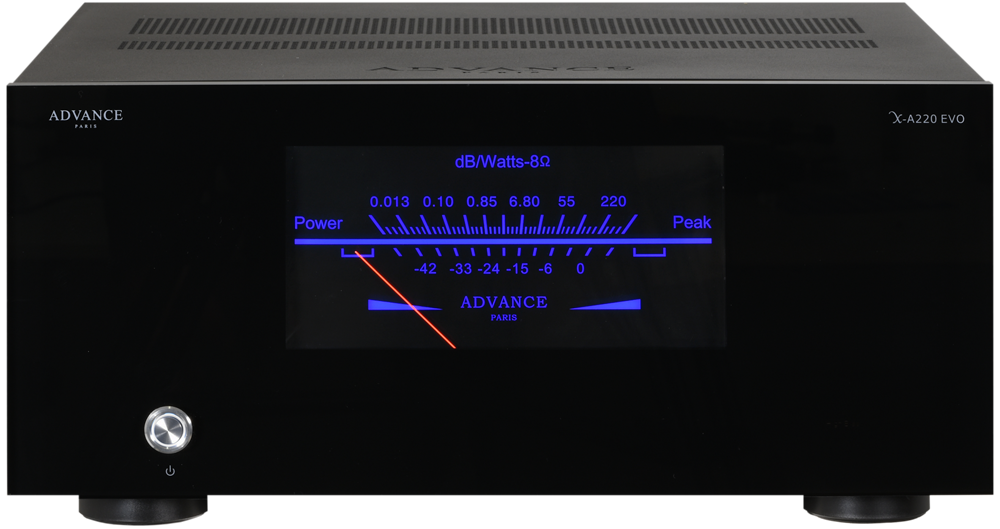

Advance Paris X-A220EVO - Mono Power Amplifier

X-A220EVO - SOLID STATE MONO POWER AMPLIFIER

- POWER 220 WATT RMS ON 8 OHM AND 350 WATT RMS ON 4 OHM - HIGH BIAS SWITCH FOR OPERATION SIMILAR TO CLASS A IN DELIVERY OF THE FIRST WATTS
- UNCOMPROMISING CONSTRUCTION WITH SELECTED AUDIOPHILE COMPONENTS
- ULTRA RIGID STEEL CHASSIS WITH INTERNAL DIVISION INTO INDEPENDENT AND ISOLATED COMPARTMENTS, FRONT PANEL IN ELEGANT HIGH THICKNESS METHACRYLATE
- POWER STAGE WITH 8 HIGH CURRENT TRANSISTORS NJW0281G / NJW0302G IN COMPLEMENTARY TRIPLE PUSH-PULL CONFIGURATION
- POWER STAGE WITH 700 VA TOROIDAL TRANSFORMER AND 4 10,000 UF / 80 V FILTER CAPACITORS
- BALANCED XLR AND UNBALANCED RCA INPUTS
- OUTPUT VU METER
- TRIGGER IN AND OUT
- FREQUENCY RESPONSE 10HZ -80KHZ
- TOTAL HARMONIC DISTORTION (THD) LESS THAN 0.08%
- SIGNAL/NOISE RATIO (S/N RATIO) ABOVE 100 DB
- DIMENSIONS (WXDXH) 430 X 200 X 450 MM
- WEIGHT 21 KG
