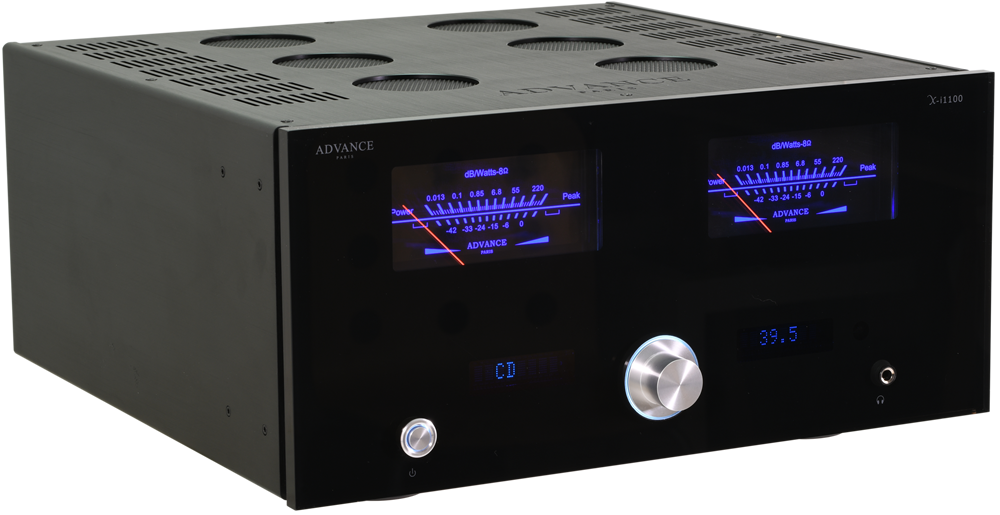

Advance Paris X-i1100 - Stereo Amplifier

X-i1100

Technical specifications

- INTEGRATED STEREO AMPLIFIER WITH BUILT-IN DAC - POWER 220 WATTS PER CHANNEL ON 8 OHM AND 400 WATTS PER CHANNEL ON 4 OHM - HIGH BIAS SWITCH FOR CLASS A ANALOGOUS OPERATION IN THE DELIVERY OF THE FIRST 45 WATTS
- XMOS ASYNCHRONOUS USB DIGITAL RECEIVER
- BURR BROWN PCM1796 D/A CONVERTER
- PLAYBACK OF DIGITAL FORMATS WITH SAMPLING UP TO 24 BIT / 192 KHZ
- MM PHONO STAGE
- EXCLUSIBLE TONE CONTROL CIRCUIT
- PRE AND POWER AMP SEPARATION, ALSO USABLE INDIVIDUALLY BY MEANS OF PRE OUT AND AMP IN CONNECTORS
- UNCOMPROMISING CONSTRUCTION WITH SELECTED AUDIOPHILE COMPONENTS, INCLUDING METAL FILM RESISTORS AND POLYPROPYLENE CAPACITORS
- AMPLIFICATION STAGE IN TRIPLE PUSH PULL CONFIGURATION PER CHANNEL, WITH 3 PAIRS OF HIGH CURRENT BIPOLAR TRANSISTORS NJW0281G / NJW0302G

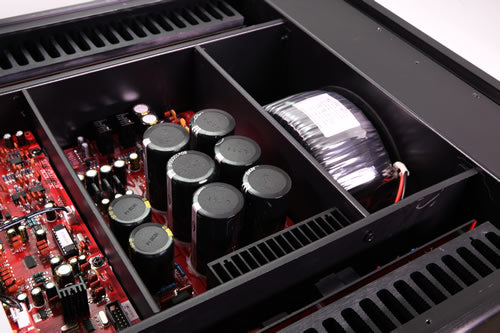

- POWER STAGE WITH OVERSIZED 700 VA TOROIDAL TRANSFORMER AND 60000 UF FILTER CAPACITORS TOTAL
- VERY ROBUST STEEL CHASSIS WITH INTERNAL STRUCTURE DIVIDED INTO 5 INDEPENDENT COMPARTMENTS, CAPABLE OF GUARANTEEING PERFECT GALVANIC ISOLATION AND HIGH RIGIDITY
- FRONT PANEL IN ELEGANT METHACRYLATE OF EXTREME THICKNESS - IMPRESSIVE HEAT SINKS DIRECTLY CONNECTED TO THE AMPLIFICATION CARDS AND SPECIAL DRILLINGS ON THE UPPER PANEL TO ENSURE CORRECT VENTILATION

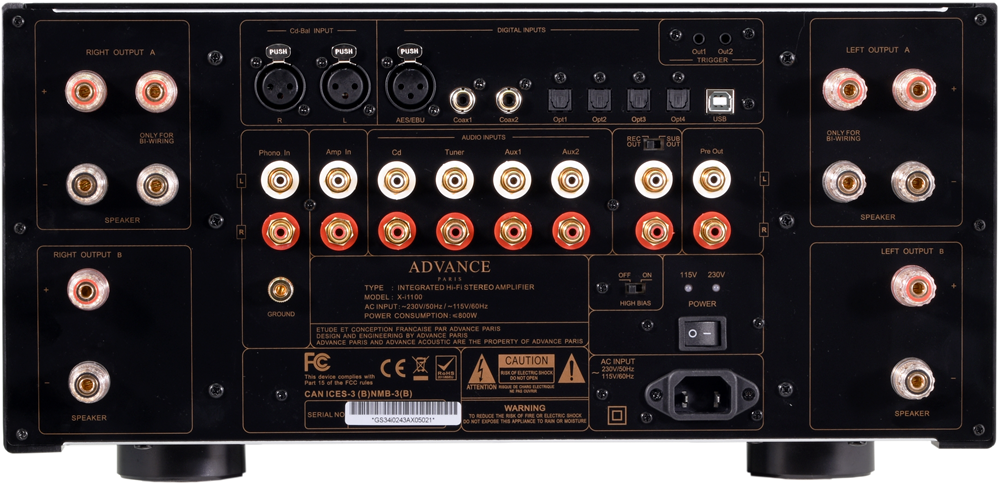

- STEREO ANALOG INPUTS: 1X BALANCED XLR, 5X UNBALANCED RCA (1X PHONO)
- DIGITAL INPUTS: 1X USB TYPE B, 1X AES/EBU XLR, 2X S/PDIF COAXIAL ELECTRIC RCA, 4X OPTICAL TOSLINK
- HEADPHONE OUTPUT
- DEDICATED UNBALANCED RCA SUBWOOFER AND REC OUT OUTPUTS, SWITCHABLE WITH SELECTOR
- DOUBLE SET OF SPEAKER TERMINALS WITH BI-WIRING CONNECTION OPTION (A) + ADDITIONAL TERMINAL SET (B)
- DOUBLE TRIGGER OUT PORT
- ALPHANUMERIC DISPLAY AND ANALOG VU-METER PANELS
- REMOTE CONTROL SUPPLIED
- DIMENSIONS (WXDXH) 430 X 210 X 425 MM
- WEIGHT 21.4 KG
