TECHNICAL SPECIFICATIONS

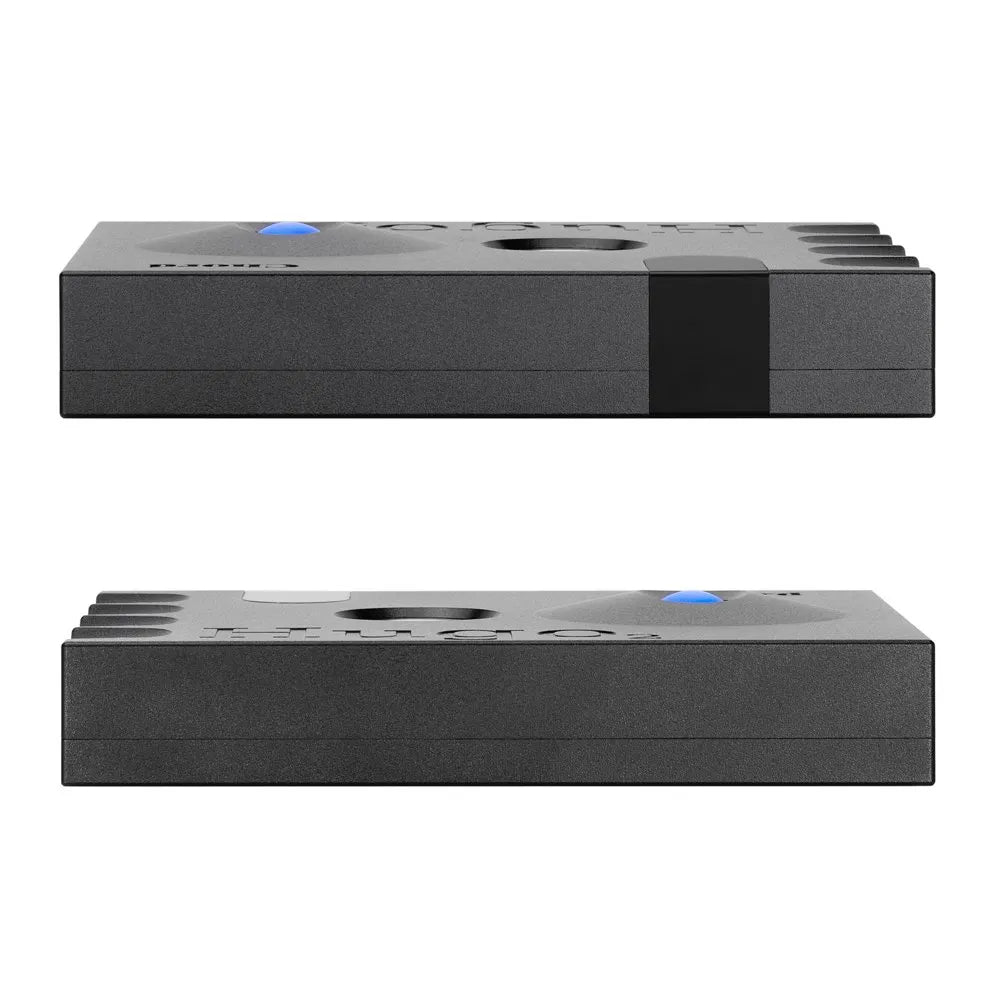

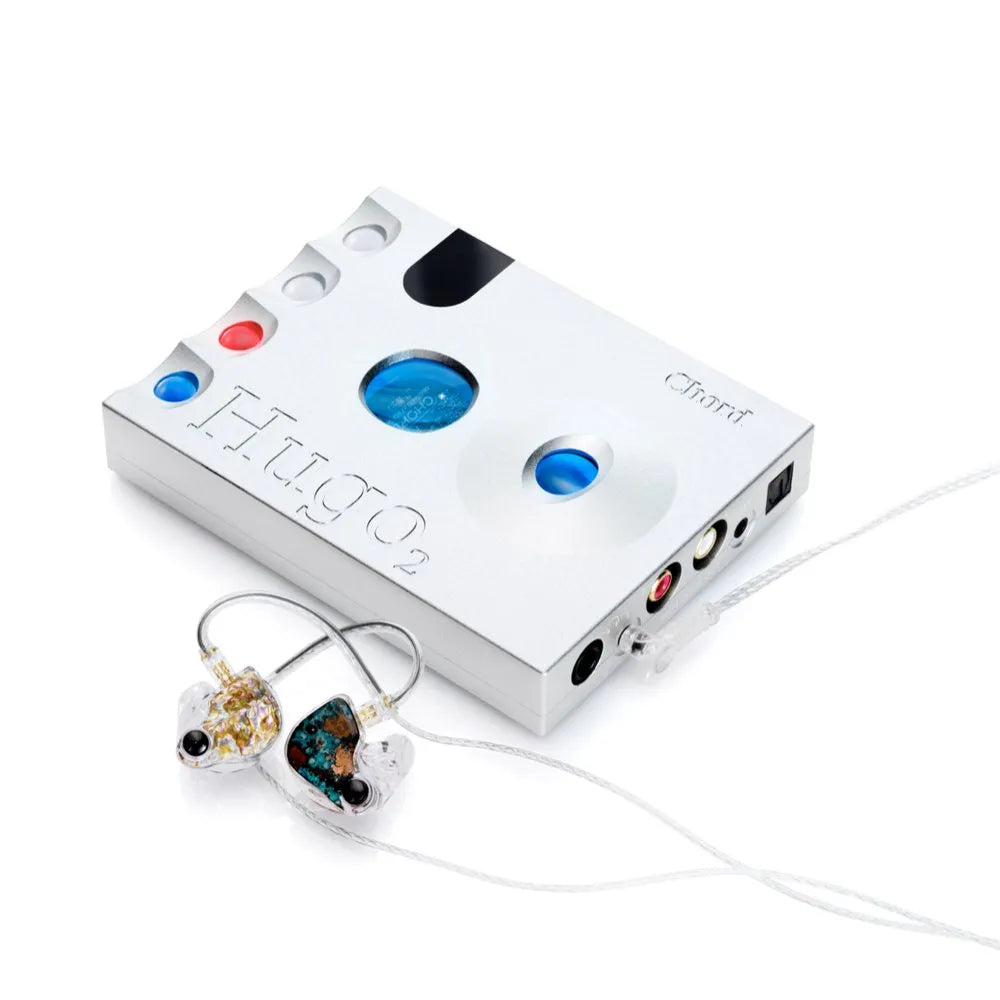

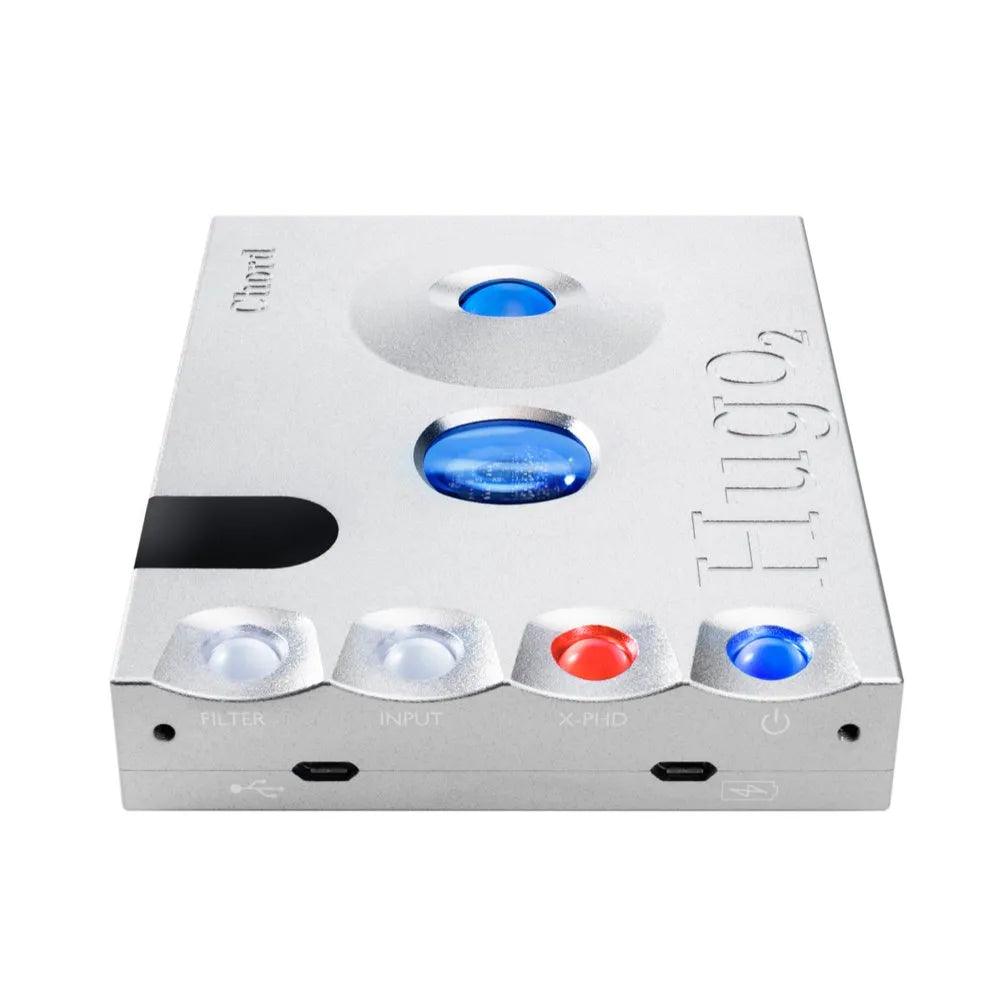

Materials: Precision-machined aluminum body with polycarbonate buttons, acrylic window, and glass viewing portal. Available in two colors: natural silver and satin black.
Battery: 2 Enix Energies 3.7v 9.6Wh Lithium-Ion rechargeable batteries (2600mAh)*
Filter tap length: 49.152 – 10 elements Pulse Array design
Playtime: Approximately 8 hours (average time)Charging: Rated six (6) hours via Micro USB at 1.8 amps (fast charge) – Rated eight (8) hours at 1 amp (slow charge)
Connectivity (input): Micro USB (white): 44.1 kHz to 768 kHz – 16-bit to 32-bit
Coaxial via 3.5mm jack (red): 44.1kHz to 384kHz – 16bit to 32bit
Coaxial via (same) 3.5mm jack (dual data mode: yellow): 44.1kHz to 768kHz – 16bit to 32bit
Optical (green): 44.1 kHz to 96 kHz – 16 bit to 24 bit
Connectivity (wireless input): Bluetooth (APTX ®) (blue): 44.1 kHz to 48 kHz – 16 bit
Connectivity (output): 1 x ¼” jack headphone output.
1 x 3.5mm jack headphone output
1x stereo RCA output (L & R).
PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 717.6kHz and 768kHz. 16 – 32 bits
DSD Support: Native playback supported. From DSD64 (single) to DSD512 (Octa-DSD)
Volume control: Digital, activated in 1dB increments. Last known state saved at power off, except in line-level mode.
Line Level Mode: Activated by double-pressing the center "Source" and "Crossfeed" buttons. Line level = 3V across all outputs. Reset by power cycling.
Power saving mode: Automatic shutdown after ten minutes of input inactivity
Driver Support: Driverless for Mac OS X and Linux, driver required for Windows OS
Filters (digital):
Neutral incisor (definitive reference) (white)
Sharp neutral HF roll-off (high frequency roll-off) (green)
Warm (“Smooth”) (Orange)
Hottest HF roll off (high frequency roll off) (red)
Crossfeed (Digital IIR):
Off – No cross feed
Level 1 – Light
Level 2 – Medium
Level 3 – Heavy
Control options:
Manual
Remote control (included)
DAC FPGA
49,152 TAP
7 hours of battery life
768kHz micro USB input
384 kHz coaxial jack input
768 kHz dual data mode jack input
96 kHz optical input
Bluetooth APTX®
1 x ¼” headphone output
1 x 3.5mm headphone output
Unbalanced RCA outputs
Supports up to 768 kHz
DSD512 (8x) Native
Native DSD support
4 playback filters
3x cross feed function
Supports up to 800 Ω
IR remote control included
CNC aluminum frame
Accessories included in the package:
Hugo 2 User Manual
Safety instructions
Soft bag
Micro USB 5V 2A Switching Power Supply
IR remote control
Micro USB to USB Type-A Cable
Micro to Micro USB OTG Cable
Optical cable
3.5mm Optical to Optical Cable
2 AAA batteries
Chipset: Xilinx Artix 7 FPGA (XC7A15T) with custom code from Chord Electronics
Tap: 49,152
Pulse array: 10-element pulse array design
Frequency response: 20Hz – 20kHz +/- 0.2dB
Output stage: Class A
Output impedance: 0.025Ω
THD: <0.0001% 1kHz 3v RMS 300Ω
THD and noise at 3v RMS: 120dB at 1kHz 300ohm 'A' wighted (5.3v reference)
2.6 uV 'A' weighted noise: no measurable background noise modulation
Signal-to-noise ratio: 126dB 'A' weighted
Channel separation: 135dB at 1kHz 300Ω
Output power at 1 kHz 1% THD:
94 mW 300 Ω
740 mW 32 Ω
1050 mW 8Ω
Weight: 390 g
Dimensions: 2.1cm (H) 10cm (W) 13cm (D)
Box dimensions: 8.5cm (H) 12.2cm (W) 22cm (D)
