Dynavector - Dv 20X2 - MC Cartridge - IN STOCK with HIGH OUTPUT
Dynavector - Dv 20X2 - MC Cartridge - IN STOCK with HIGH OUTPUT

Dynavector

Dynavector - Dv 20X2 - MC Cartridge - IN STOCK with HIGH OUTPUT

Sale price€1.071,00 Regular price€1.190,00
Save 10%

Tax included. Shipping calculated at checkout

Model:Dv 20X2-H (high output)
Quantity:

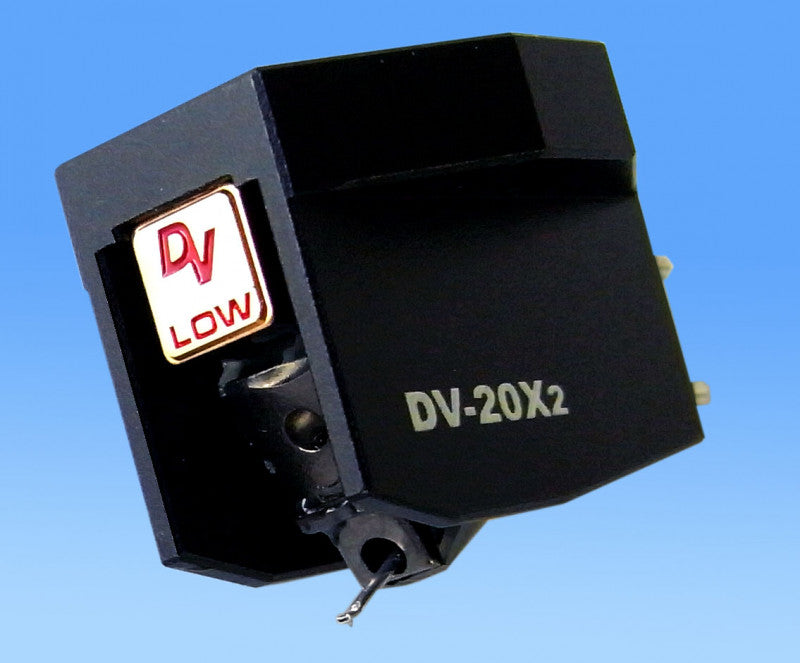

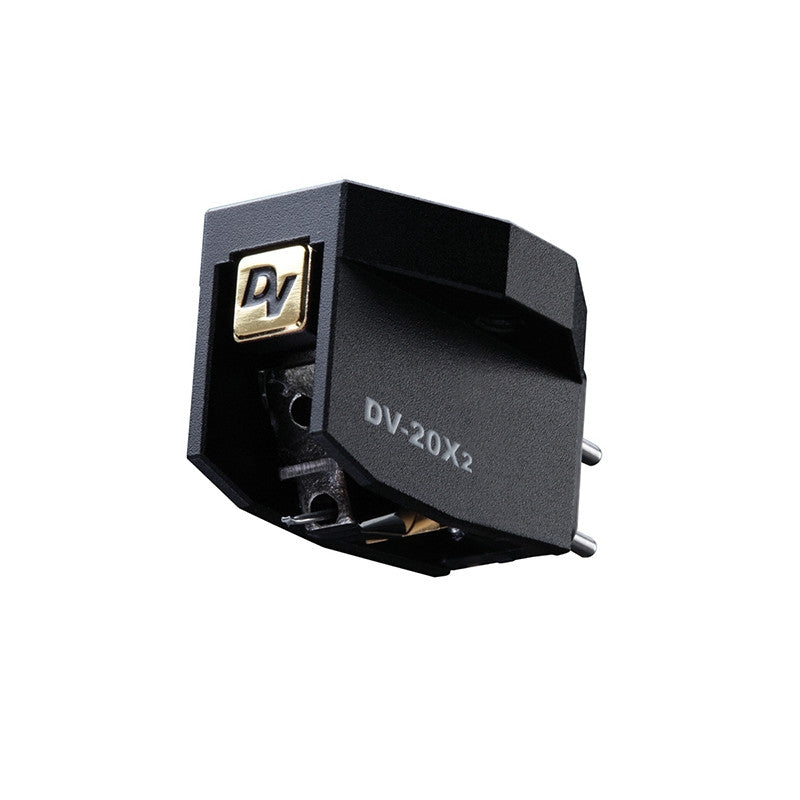

Dv 20X2-H (high output) and Dv 20X2-L (low output) cartridges

Description
For over 35 years, Dynavector has established an enviable reputation for producing high-quality, affordable moving coil cartridges. This is especially true for high-output models, which are designed to work with MM inputs, eliminating the need for equipment changes or setup devices required for lower-output cartridges. The exceptional performance of Dynavector's high-output moving coil cartridges can be attributed to Dynavector's exclusive coil winding system, which utilizes extremely thin coil wire, providing a high power-to-mass ratio.

Features and improvements
The DV-20X has a solid aluminum alloy body and a rigid magnetic structure similar to the XX-2MKII. The cantilever is a 6mm-long, hard aluminum tube with a Micro-Ridge stylus. Flux damping and softened magnetism, combined with powerful neodymium magnets, give the 20X2H a healthy 2.8mV output, suitable for most MM inputs. The 20X2L has a 0.3mV output, ideal for most MC phono stages.

Both high-output and low-output versions of their 20X2 are available to ensure optimal output. The high-output model is suitable for tube preamps or electronics that only offer MM inputs, while the low-output version offers excellent performance when combined with dedicated moving coil inputs.

Specifications

Type High/Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage 2.8mV / 0.3mV (at 1KHz, 5cm/sec.)
Channel Separation 25 dB (at 1KHz)
Channel balance 1.0 dB (at 1KHz)
Frequency response 20 - 20,000Hz (± 1dB)
Compliance 12 mm/N
Tracking force 1.8 - 2.2 g
Impedance 150 ohms / 5 ohms
Recommended load impedance > 1,000 ohms / > 30 ohms
Cantilever 6mm length, hard aluminum pipe
Stylus tip Micro Ridge Nude diamond
Weight 9.2 g
