| Inputs | 1x USB — accepts up to 24 bit PCM at 44.1, 48, 88.2, and 96 kHz sample rates 1x Toslink — accepts up to 24 bit PCM from 11 – 192 kHz sample rates 2x SPDIF — accepts up to 24 bit PCM from 11 – 192 kHz sample rates |
| Outputs | 1 pair balanced XLR and 1 pair unbalanced RCA 7 volts RMS max output level |
| Volume Control | Dual stage attenuation 70 dB range, plus 20 dB overdrive |
| Software/Drivers | No special drivers needed USB interface is plug-n-play with all operating systems, including PC, Mac, or Linux. |
| Clocks | 20 bit dynamic range Voltage Controlled Crystal Oscillators (VCXO) 44.1 kHz and 48 kHz < 1 picosecond RMS jitter |
| D/A Converter | Differential output 352.8kHz, 24bit |
| Digital Filter | Finite Impulse Response (FIR) symetrical Flat phase and group delay |
| THD+N | Analogue outputs < 0.0006% |
| Output Impedance | RCA / XLR 120 ohms |
| DAC and Power Supply Weight | 24.4 lbs / 11kg |
| Dimensions | 2.4″ x 15.5″ x 11.6″ 61mm x 394mm x 294mm |
Jeff Rowland

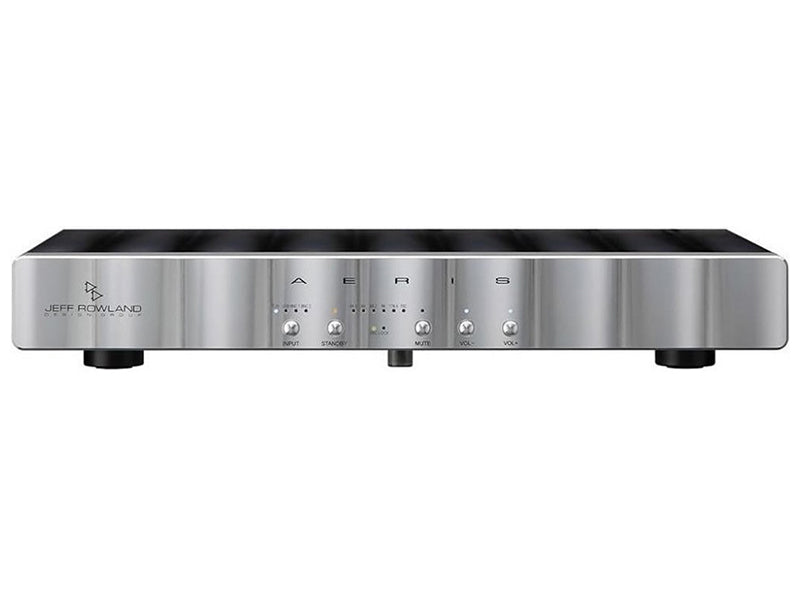

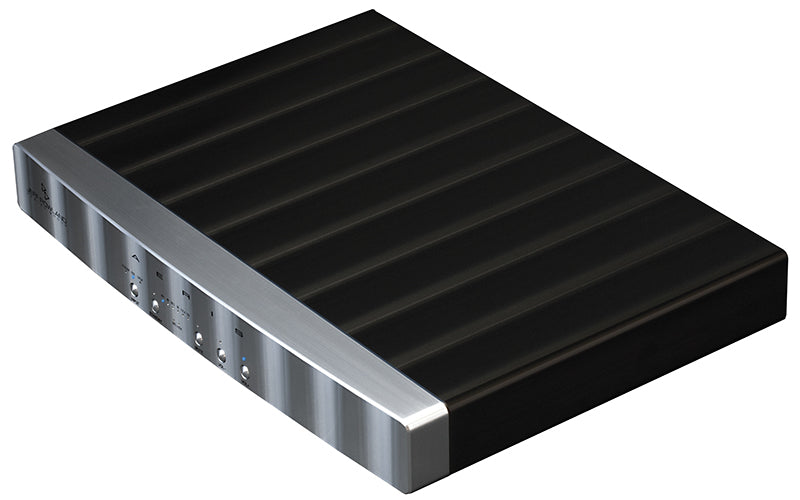

Jeff Rowland Aeris DAC - D/A Converter
Quantity:
Aeris DAC
Hi-end D/A converter. 24bit/192KHz conversion. Synchronous isolation error correction system. Virtual jitter-free conversion. Dual internal clock. Fully isolated and separately powered analog and digital circuits. Volume-controlled outputs. 6-layer electronic boards with ground-coupled signal paths.
Hi-end D/A converter. 24bit/192KHz conversion. Synchronous isolation error correction system. Virtual jitter-free conversion. Dual internal clock. Fully isolated and separately powered analog and digital circuits. Volume-controlled outputs. 6-layer electronic boards with ground-coupled signal paths.

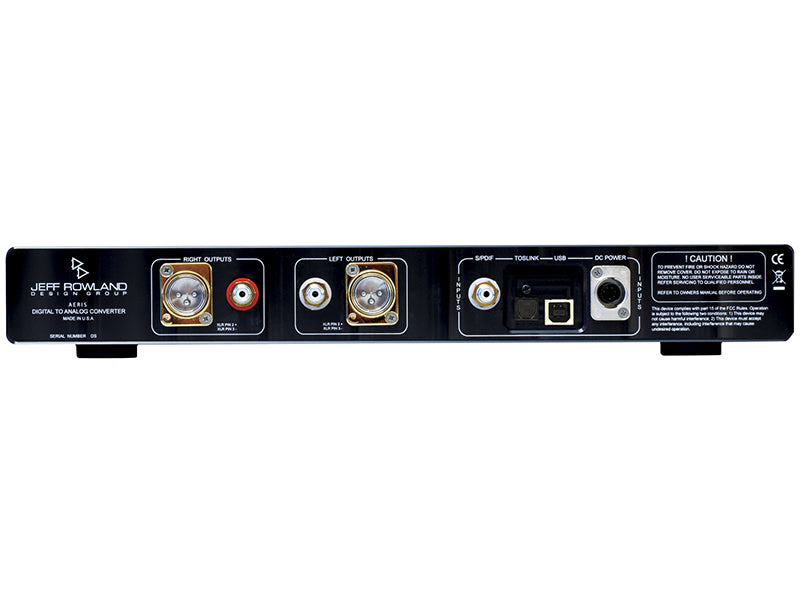

Inputs: 1 USB, 1 optical, 2 SPDIF. Outputs: 1 RCA and 1 XLR. Completely separate power supply in a separate chassis. Cardas Rhodium/Teflon output connectors. Remote control included.
Specifications
Choose options
Quantity:
