Luxman D-N150 - CD Player
Stereo CD player, D/A converter TI PCM 5102A 192kHz/32bit RCA analog outputs, optical digital output, USB input for files up to 192kHz/32bit, optical and coaxial digital inputs, remote control dimensions (WxHxD) 297x98x222mm, weight 5kg . Silver finish.
Exceptional playback of Compact Discs and high-resolution audio files
Part of LUXMAN’s NeoClassico II series, the compact D-N150 combines uncompromising audiophile design with exceptional flexibility. The bona fide audio includes a 5mm thick aluminum chassis and internal parts selected through exhaustive listening tests. Flexibility comes in the form of coaxial, optical and USB digital inputs to convert high-resolution audio files into beautiful, unconstrained analog sound.
CD transport and D/A converter

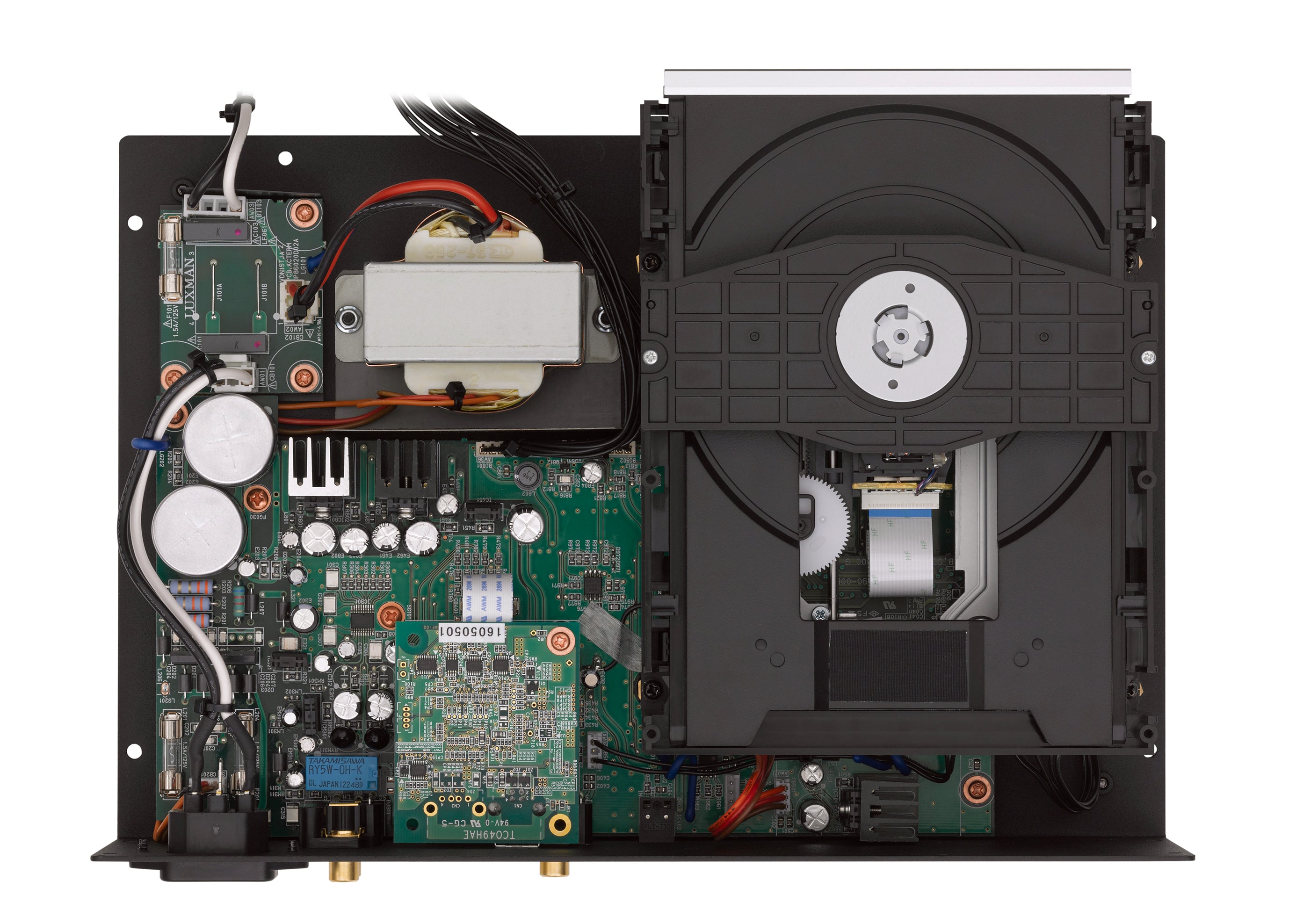

The D-N150 shares the same CD transport as LUXMAN’s highly regarded D-380. Carefully auditioned parts include LUXMAN’s power transformer, filter capacitors, Schottky barrier diodes, and OFC (Oxygen Free Copper) wire. The Texas Instruments PCM5102A digital-to-analog converter helps deliver a signal-to-noise ratio of 110 dB, presenting the music against a background very close to absolute silence.
Coaxial, Optical and USB input with Bulk Pet® transfer
You can use the D-N150’s built-in digital-to-analog converter to play external sources. The coaxial and optical inputs accept S/PDIF signals up to 192 kHz/24-bit, while the USB input accepts PCM signals for personal computers up to 192 kHz/32-bit. The D-N150 is the first LUXMAN product to support Bulk Pet®* transmission in addition to conventional isochronous USB transfer. This achieves great sound while reducing the processing load on the DAC. The optical output allows the D-N150 to be used as a single DAC hub.*Bulk Pet® is a registered trademark of INTERFACE Co.,LTD.
High quality aluminum remote control
The aluminum remote control feels substantial in the hand. This remote not only controls the D-N150 digital player, but also the volume of the corresponding amplifier SQ-N150.
Sober design
The D-N150 has a compact “A4” footprint, measuring just 210 x 297 mm (8-1/4 x 11-3/4 inches), excluding protruding parts. The 5 mm thick aluminum chassis features an elegant sandblasted white finish. The finished controls provide a subtle contrast between the white and silver.
Applicable disc 2-channel CD, CD-R
Supported sampling rates USB input: 32kHz, 44.1kHz, 48kHz, 88.2kHz
96kHz, 176.4kHz, 192kHz (16, 24, 32 bit)
COAX/OPT Input: 32kHz, 44.1kHz, 48kHz, 88.2kHz
96kHz, 176.4kHz, 192kHz (16, 20, 24 bit)
Analog output voltage/impedance 2.1V/300Ω
Frequency response CD: 5Hz to 20kHz (+0, -0.5dB)
COAXIAL/OPT/USB: 5Hz to 50kHz (+0, -3.0dB)
Total harmonic distortion 0.005%
Signal to Noise Ratio (IHF-A) 110dB
Power supply 230V~(50Hz) / 115V~(60Hz)
Power consumption 13W
External dimensions 297 (W) x 98 (H) x 222 (D) mm
4mm front panel knob and 8mm rear panel
Terminals are included in the depth measurement
Net weight 5.0kg (main unit)
Accessories Remote control (RD-27), power cord
| Applicable disc | 2channel CD, CD-R |
|---|---|
| Supported sampling frequencies | USB input: 32kHz, 44.1kHz, 48kHz, 88.2kHz 96kHz, 176.4kHz, 192kHz(16, 24, 32bits) COAX/OPT input : 32kHz, 44.1kHz, 48kHz, 88.2kHz 96kHz, 176.4kHz, 192kHz (16, 20, 24bits) |
| Analog output voltage / impedance | 2.1V/300Ω |
| Frequency response | CD: 5Hz to 20kHz (+0, -0.5dB) COAX/OPT/USB :5Hz to 50kHz (+0, -3.0dB) |
| Total harmonic distortion | 0.005% |
| S/N ratio (IHF-A) | 110dB |
|---|---|
| Power supply | 230V~(50Hz) / 115V~(60Hz) |
| Power consumption | 13W |
| External dimensions | 297(W) x 98(H) x 222(D) mm 4mm front panel knob and 8mm rear panel terminals are included in the depth measurement |
| Net weight | 5.0kg(main unit) |
| Accessories | Remote control(RD-27),Power cable |
