Luxman
Luxman JPS-15000 - Power Cable 3mt
Luxman JPS-15000

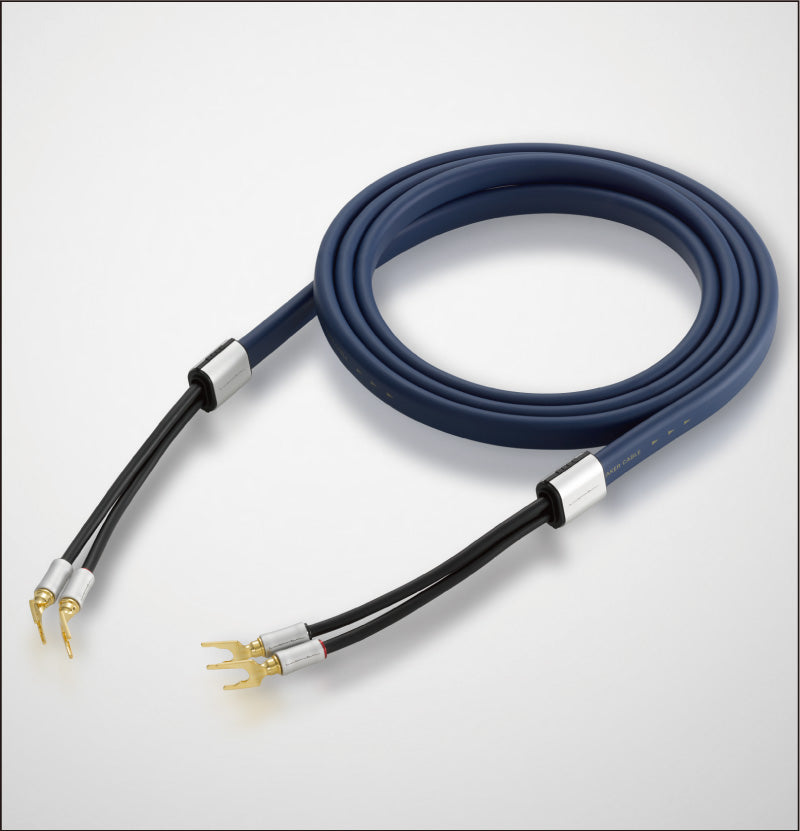

Stereo power cable with spade terminals with individual shielding, braided structure conductors, 7N Class DUCC high purity copper conductors, OFC copper shielding, Polyethylene insulation, blue PVC outer jacket, gold plated terminals adjustable in length. Cable length 3 m.
JPS-15000 Best Flagship Speaker Cables
LUXMAN's flagship 15000 series cables have been designed to optimize the wide range of innovative technologies developed and the know-how acquired from decades of experience in developing class-leading audio amplifiers.
The LUXMAN 15000 Series speaker cable features a large-diameter core using high-purity 7N CLASS DUCC (99.99998%+ pure copper*) to ensure lower impedance. Each conductor of the JPS-15000 is composed of 60 strands of 7N Class DUCC and 40 strands of oxygen-free copper (OFC). This structure ensures crystal-clear, pure, and relaxed high-end characteristics and accurate, rich bass characteristics. The non-twisted structure of hot and cold lines constrained in parallel eliminates unwanted inductance. The JPS-15000 features newly developed, easy-to-assemble, high-quality Y-type lug terminals made of high-conductivity materials. A newly developed adjustable branch holder with full aluminum cover allows for easy adjustment of the length from the terminal to the holder without compromising structural performance or appearance.
Structure Non-twisted construction
Core wire High purity copper wire (CLASS 7N DUCC)
0.26mm x 60pcs,
Oxygen Free Copper Wire (OFC), 0.26mm x 40pcs
Insulator / Sheath Polyethylene (red, primary color) / PVC (blue)
Drain Wire Oxygen Free Copper (OFC) Wire, 0.08mm x 30pcs
Conductor resistance 4mΩ/m or less (at 20°C)
Insulation resistance 5000MΩ/m or more (at 20°C)
Capacitance 86pF/m or less
Withstand voltage 1,000V AC (for 1 minute)
Cable outer diameter 10.5mm x 20mm
* DUCC Class 7N Ultra Crystallized Copper（Dia: Utilizing the world's highest purity copper, while maintaining the same crystal size as conventional high-purity conductors, DUCC enables an even higher grade conductor with optimized crystal structure alignment, resulting in significantly improved conductivity dedicated to high-end audio cables. DUCC is a registered trademark of Mitsubishi Cable Industries, Ltd.
| Structure | Non-twisted construction |
|---|---|
| Core wire | High-purity copper (7N CLASS DUCC)wire Φ0.26mm x 60pcs, Oxygen-free copper (OFC) wire, Φ0.26mm x 40pcs |
| Insulator / Sheath | Polyethylene (red, primary color)/PVC(blue) |
| Drain wire | Oxygen-free copper (OFC) wire, Φ0.08mm x 30pcs |
| Conductor resistance | 4mΩ/m or less (at 20°C) |
|---|---|
| Insulation resistance | 5000MΩ/m or more (at 20°C) |
| Capability | 86pF/m or less |
| Withstand voltage | 1,000VAC (for 1 minute) |
| Cable outside diameter | 10.5mm x 20mm |
| * 7N-Class DUCC（Dia Ultra Crystallized Copper: Using the world's highest purity of copper, while keeping the same crystal size of conventional high-purity conductors, DUCC allows for an even higher grade conductor with optimized alignment of the crystal structure resulting in significantly improved conductivity dedicated for high end audio cables. DUCC is a registered trademark of Mitsubishi Cable Industries, Ltd. |
