Lyravox

Lyravox Karl III - Active Speakers

Sale price€69.900,00

Tax included. Shipping calculated at checkout

Tweeter:Diamond
Color:White

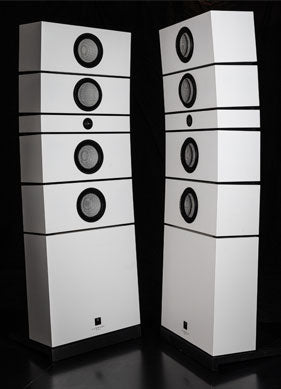

CHARLES III

is opening a new chapter for high-end audio.

A full-size speaker with the most advanced drivers available today, each driven directly by a revolutionary Class-D power amplifier, seamlessly fused into a coherent system by a high-resolution DSP.

The KARL concept is based on the belief that the current generation of Accuton® ceramic and diamond drivers are capable of delivering the best possible acoustic imaging, but only if directly driven and DSP controlled.

This concept would not be possible without Class D amplification equal to or superior to traditional high-end amplification.

The latest generation of Class D meets this requirement, together with unprecedented speaker control, dynamics, low noise, efficiency and reliability.

The resulting sonic experience, representing the best of several worlds of audiophile preferences, marks a leap forward for high-end audio and paves the way for a whole new generation of ultra-fidelity audio systems.

Quantity:

Type:
4-way dynamic tweeter plus diffuse field, vented woofer, bass reflex subwoofer (downfire), fully active 5 x Class
D with DSP signal processing and integrated preamplifier. Master-slave configuration with digital interconnection.
Recommended room size:
35 - 140 m2 (with normal living height up to 2.8 m) Recommended listening distance:
3.5 - 9 meters
Recommended distance from the wall:
At least 0.8m (with room measurement of 0.3m)
Typical frequency response:
23 - 130,000 Hz (depending on the room)
Housing concept:
Multi-segment housing made of heavy, thick-walled MDF, H-braced internal skeleton made of K-material (highly damping artificial stone). Multi-component acoustic chamber insulation. Bass reflex on the underside. Polished multi-component K-material base plate with sharp bearing base and optional hidden spikes. Ultra-smooth matt nano-coated multi-layer surface (ring-resistant, furniture quality) in pure white NCS-S 0500N. Individual RAL or NCS colours at extra charge.
Dimensions:
52cm x 160cm x 23cm (W x H x D), base plate 46cm deep
Weight:
about 90 kilograms
Mechanics:
Accuton® BD25 all-diamond front tweeter 25mm Accuton® C168-990 4D all-ceramic 7" midrange 3x Accuton® C173 all-ceramic woofer 7" Scan Speak® 30W aluminum subwoofer 12" AMT L50 wide-field tweeter
Electronics:
TECHNICAL INFORMATION
5 x 3rd Gen NCore® power amplifiers per speaker, total power 1350 W. High-resolution multi-channel DSP with integrated remote-controllable preamplifier for digital and analog sources (upgradable). Alphanumeric OLED front display.
Internal wiring:
Pure copper OCC with matched cross-sections, high frequency pure silver OCC profile.
Connection options:
Digital XLR AES (via main speakers)
Coaxial RCA Digital SPDIF (via main speaker) Fiber Optic Digital Toslink (via main speaker) Analog XLR Balanced (each Right/Left) Analog RCA ("Cinch") (each Right/Left)
Sound customization:
Up to three custom audio presets after expert measurement in your listening room (additional cost option). For example, additional presets for older sources, historical recordings or cinematic audio with virtual center.
Supply:
Aluminum remote control to control all functions including source selection and sound presets; 2 x power cables; 4.5m Lyra-Link SPDIF connection cable for main and sub speakers; Lyra-Link cable connects the subwoofer section; Dust covers; Instruction manual.
EU Manufacturer's Warranty:
3 years on electronics, 5 years on mechanics (speaker chassis), 10 years warranty on spare parts. In Germany, on-site service is mostly possible.
Product variations:
KARL III C with Accuton® Cell® C25 full ceramic tweeter instead of BD25 diamond tweeter
