Lyravox Karlsson Monolith - Active speakers

€19.900,00

Tax included. Shipping calculated at checkout

Color:White

Variant

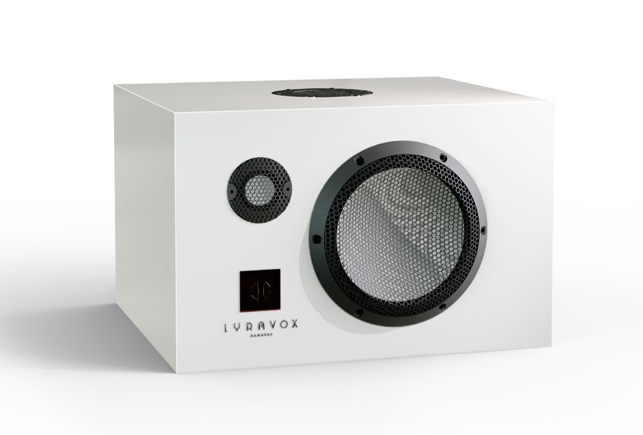

Lyravox Karlsson Monolith

Pair of active speakers

MAXIMUM SOUND EXPERIENCE IN A SMALL SPACE

Audiophile listening experiences don't have to be about big rooms or big speakers, at least not with Karlsson. Thanks to its unusual design, it covers the entire frequency range from 23 Hz upwards.
40 kHz without compromise. It achieves an unsurpassed level in terms of resolution, transparency, purity, spatial representation, authenticity and homogeneity. Anyone who listens to music at short distances or in small to medium-sized rooms will also be treated perfectly differentiated and defined as dynamically explosive bass reproduction up to rewarded at the lowest levels. Recordings of every musical genre can be physically experienced authentically and intoxicatingly. Powered by a music source at the same level, with Karlsson you can explore the limits of what is possible today in terms of sound in the near and midfield. It is also suitable for studio applications with the highest demands.

HANDMADE IN HAMBURG
Karlsson artificial stone cabinets are individually handcrafted in the Hamburg manufactory using a specially developed process. In contrast to classic cabinet construction with wood-based materials, the K-material is chemically welded to itself, resulting in a monolithic block. After installation of the speaker drivers, which are always selected in pairs, and the electronic modules, a comprehensive functional test is performed, followed by a 48-hour import process of the entire system, exclusively with a real music program.

Technical information:

Type: Dynamic, 2-way plus ambient tweeter, bass reflex (rear),

fully active dual Class D with DSP signal processing.

Master-slave configuration with integrated preamplifier.

Recommended room size:

6 - 25 m2 (with Karlsson subwoofer 25 - 50 m2)

Recommended listening distance: 1 - 4 m (with subwoofer 3 - 5 m)

(Specifications based on normal living room height)

Recommended distance from the wall:
0.5 - 0.8 m (for room size 0.15 m)

Frequency response:
23 - 42.000 Hz

Construction:
Artificial stone housing, 13 l volume, integrated bass reflex channel (rear door), additional inner wall, stiffening made of complementary material, multi-component sound insulation, internal Helmholtz absorber.

Pure white or jet black surfaces (for a fee), finely sanded or polished (for a fee).

Dimensions:
35cm x 23cm x 31cm (W x H x D)
The weight:
19 kg

Components:
Bass-midrange Accuton® C-168-6-890, selected in pair Tweeter Accuton® C25-6-158, selected in pair Diffused-field tweeter AMT L50

5th Gen NCore® Power Amplifiers, 400w Bass / 100w Tweeter
Connection options:
AES Digital XLR (balanced) SPDIF Digital RCA Coaxial Toslink Optical
Balanced Analog XLR
Analog RCA

EU Manufacturer Warranty: 3 years on electronics, 5 years on mechanics (speaker chassis), 10 years on spare parts.

Quantity:

Type:
2-way dynamic tweeter plus diffuse field, bass reflex (rear), 2 x fully active Class D with DSP signal processing and integrated preamplifier. Master-slave configuration with digital interconnection.
Recommended room size:
6 - 30 m2 / with KARLSSON tower subwoofer 25 - 75 m2 (with normal living height up to 2.8 m)
Recommended listening distance:
1 - 4 m (with KARLSSON tower subwoofer 3 - 6 m)
Recommended distance from the wall:
0.5 - 0.8 m (with room measurement of 0.15 m)
Typical frequency response:
23 - 42,000 Hz (depending on the room)
Housing concept:
Artificial stone housing, 13 l volume, integrated bass reflex channel (rear door), additional inner wall, reinforcement made of complementary material, multi-component acoustic chamber insulation, internal Helmholtz absorber. Surfaces pure white or deep black (for an additional charge), finely ground or polished (for an additional charge).
Dimensions:
35cm x 23cm x 31cm (W x H x D)
Weight:
19kg
Mechanics:
Accuton® C25 all-ceramic front tweeter 25mm Accuton® C168-890 all-ceramic woofer 7" AMT L50" diffuse field tweeter
Electronics:
1 x 400 we 1 x 100 w Class D NCore® 4th generation speaker.
Generation. High resolution multi-channel DSP with integrated remote-controlled preamplifier for digital and analog sources. Alphanumeric OLED front display.
Internal wiring:
Pure copper OCC with matched cross-sections. A KARLSSON D. Pure silver OCC profiles in the treble.
Connection options:
Digital XLR AES (via main speakers)
Digital RCA Coaxial SPDIF (via main speaker) Digital Fiber Optic Toslink (via main speaker)
Sound customization:
Up to three custom audio presets after expert measurement in your listening room (additional cost option). For example, additional presets for older sources, historical recordings or cinematic audio with virtual center.
Supply:
Aluminum remote control to control all functions including source selection and sound presets; 2 power cables; 4.5m Lyra-Link SPDIF connection cable for main and secondary speakers; Dust covers; Instruction manual.
EU Manufacturer's Warranty:
3 years on electronics, 5 years on mechanics (speaker chassis), 10 years warranty on spare parts. In Germany, on-site service is mostly possible.
Product variations:
KARLSSON D with Accuton® BD25 full diamond tweeter. KARLSSON ANALOG with analogue inputs only, for operation on external preamplifiers, without remote control and interconnect cable. KARLSSON TOWER with modular stereo double subwoofer (KARLSSON SUB) based on Accuton® AS190 / 2 x 1000 with solid stone housing.
TECHNICAL INFORMATION
Lyravox Gerätemanufaktur GmbH & Co. KG | Jaffestrasse 6 | 21109 Hamburg, Germany Telephone +49 – 40 – 32089798 – 0 | Fax +49 – 40 – 32089798 – 9 info@lyravox.de | www.lyravox.com
