Lyravox Karlsson Tower Monolith - Active speakers
Lyravox Karlsson Tower Monolith - Active speakers
Lyravox Karlsson Tower Monolith - Active speakers

Lyravox

Lyravox Karlsson Tower Monolith - Active speakers

Sale price€39.900,00

Tax included. Shipping calculated at checkout

Model:Slim Tower
Tweeter:Ceramic

Lyravox Karlsson Monolith

Pair of active speakers

MAXIMUM SOUND EXPERIENCE

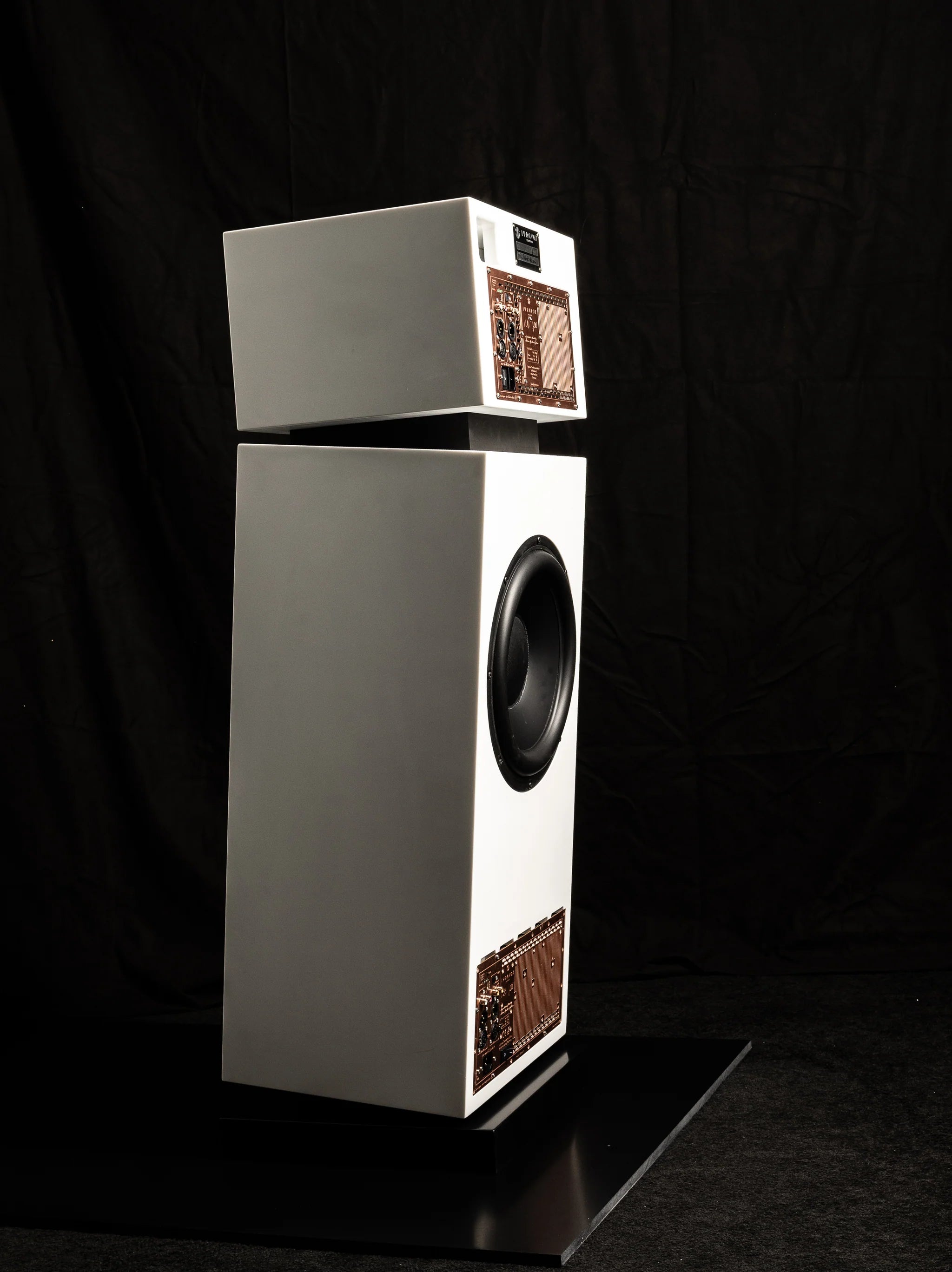

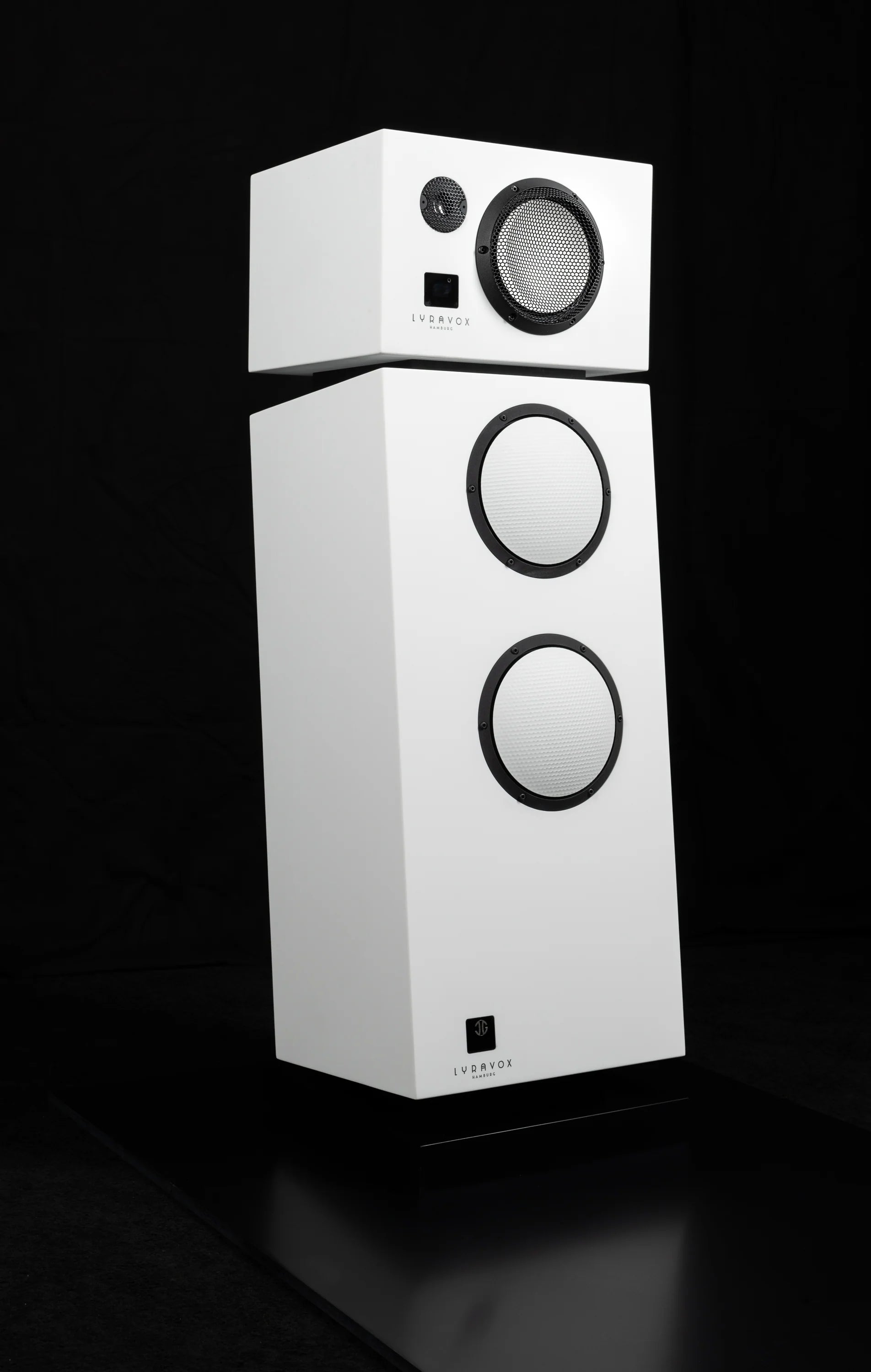

KARLSSON TOWER is the combination of the KARLSSON MONOLITH monitor and
its KARLSSON SUB bass extension. This expansion extends the unprecedented performance of KARLSSON to larger spaces, higher dynamics and a wider soundstage. The most complex ceramic sound transducers ever built, together with the acoustically optimal solid stone housings of the KARLSSON TOWER, offer technical requirements that no other loudspeaker in this size class has ever met. Thanks to lossless active DSP technology with multiple direct-drive power amplifiers and integrated adaptability to room acoustics, this potential can be converted into breathtaking sound performance, unhindered by passive crossovers or disruptive room influences. These cover all aspects of sound quality, regardless of the music genre.

THE IDEAL STRUCTURE: MADE OF SOLID STONE
In addition to perfect electrical and mechanical components, the key to completely pure sound conversion is the housing made of heavy, acoustically "dead" materials. With the Monolith series, Lyravox introduces a solid stone housing made of K-Material, an acoustically optimized technical artificial stone. Its sound transmission attenuation is 30 times that of concrete, with only a slightly lower density. The surfaces are available in finely ground or hand-polished finish, in pure white or deep black. A case for eternity.
SUPERLATIVE ELECTROMECHANICS
The KARLSSON design was only made possible by a completely new type of sound transducer, developed by ceramic membrane pioneer Accuton® at the suggestion of Lyravox. Unlike conventional ceramic mid-bass drivers, the Pulheim specialist's Cell® series C-168-890 is an oversized inverted dome with a gigantic 114 mm voice coil, which would normally be found in a speaker driver twelve times larger. Enable
the light in the midrange creates a compelling musical quality
Realism that was not possible before. In combination with the same tweeter (available in ceramic and
Diamond) also creates a previously unknown acoustic homogeneity in multi-way loudspeakers. Finally, the new AS190 piston bass drivers of the KARLSSON SUB, thanks to their design - especially in the context of direct drive and the stone housing - enable acoustic performance that cannot be achieved with classic cone drivers. The bass impulses explode smoothly and flawlessly, regardless of the volume level.
DIFFUSE FIELD EXPANSION
An additional AMT super tweeter is used in the upper part of the housing
the generation of a so-called high-frequency expanded diffuse field (indirect sound in the room). This corresponds to the real musical event, where the sound is distributed around the instruments throughout the room and not directional towards the listener (as with conventional loudspeakers).

Quantity:

Type:
Dynamic, 2-way monitor combination (bass reflex, with additional diffuse field tweeter) and bass extension unit (closed with passive radiator). Fully active 4 x Class D per unit, with DSP signal processing and integrated preamplifier. Master-slave configuration with digital interlink, also between monitor and bass extension.
Recommended room size:
25 - 80 m2 (with normal living room height up to 2.8 m) Recommended listening distance:
2 - 5 meters
Recommended distance from the wall:
At least 0.6m (with room measurement of 0.25m)
Typical frequency response:
22 - 42,000 Hz, with BD25 - 130,000 Hz (depending on the room)
Housing concept:
Solid artificial stone housing, volume 13 l and 51 l, additional inner walls, reinforcements made of complementary material, multi-component acoustic chamber insulation, internal Helmholtz absorber in the monitor. Base and connecting element made of solid artificial stone, jet black. Speaker housing surfaces pure white or jet black (for an additional charge), finely ground or polished (for an additional charge).
Dimensions:
35cm x 112cm x 31cm (W x H x D), base at the back + 4cm depth
Weight:
about 68 kilograms
Mechanics:
Monitor: 25mm Accuton® C25 all-ceramic front tweeter (optionally BD25 all-diamond)
Accuton® C168-890 Mid-Bass Driver 7" All-Ceramic Diffused Field Tweeter AMT L50
Bass Extension: 2 x Accuton® AS190 MkII, Scan Speak® 30w passive radiator on the back
Electronics:
Monitor every 1x400w and 1x100w/bass extension every 2x500w Class D NCore® the 3rd/4th. Generation. High resolution multi-channel DSP with integrated remote controllable preamplifier for digital and analog sources (upgradeable). Alphanumeric OLED front display in the monitor.
Internal wiring:
Pure copper OCC with adapted cross-sections. With KARLSSON D monitor. Pure silver OCC profiled in the treble.

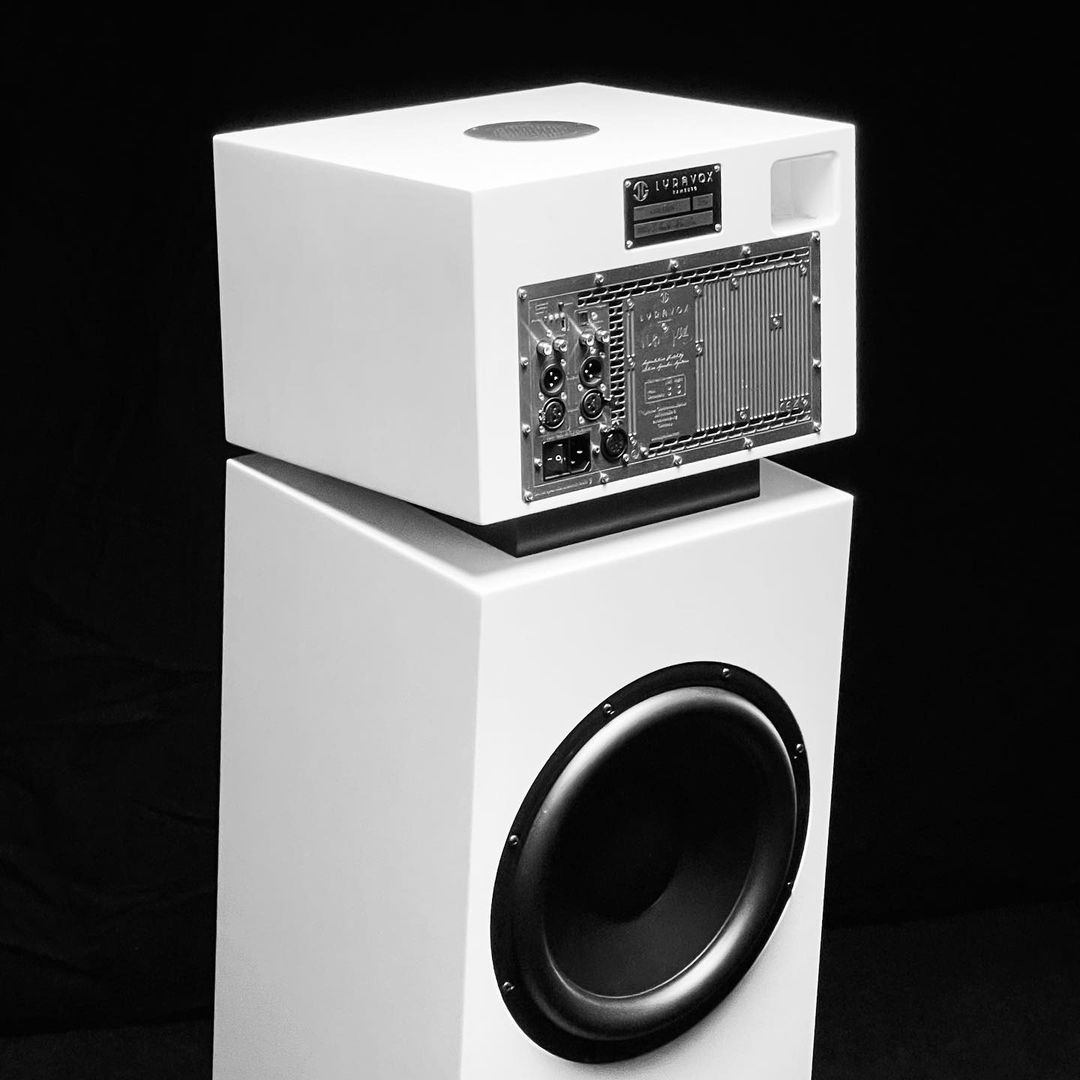

Connection options:
Digital XLR AES (via main speakers)
Coaxial RCA Digital SPDIF (via main speaker) Fiber Optic Digital Toslink (via main speaker) Analog XLR Balanced (each Right/Left) Analog RCA ("Cinch") (each Right/Left)
Sound customization:
Up to three custom audio presets after expert measurement in your listening room (additional cost option). For example, additional presets for older sources, historical recordings or cinematic audio with virtual center.
Supply:
Aluminum remote control to control all functions including source selection and sound presets; 4 x power cables; 4.5m Lyra-Link SPDIF connection cable for main and secondary speakers; Lyra-Link cable bridges for bass extension; Dust covers; Instruction manual.
EU Manufacturer's Warranty:
3 years on electronics, 5 years on mechanics (speaker chassis), 10 years warranty on spare parts. In Germany, on-site service is mostly possible.
Product variations:
Monitor available as KARLSSON D with Accuton® BD25 all-diamond tweeter.
KARLSSON and KARLSSON SUB are each available in the ANALOG version with analog inputs only, for operation on external preamplifiers, without remote control, with analog wiring only.
