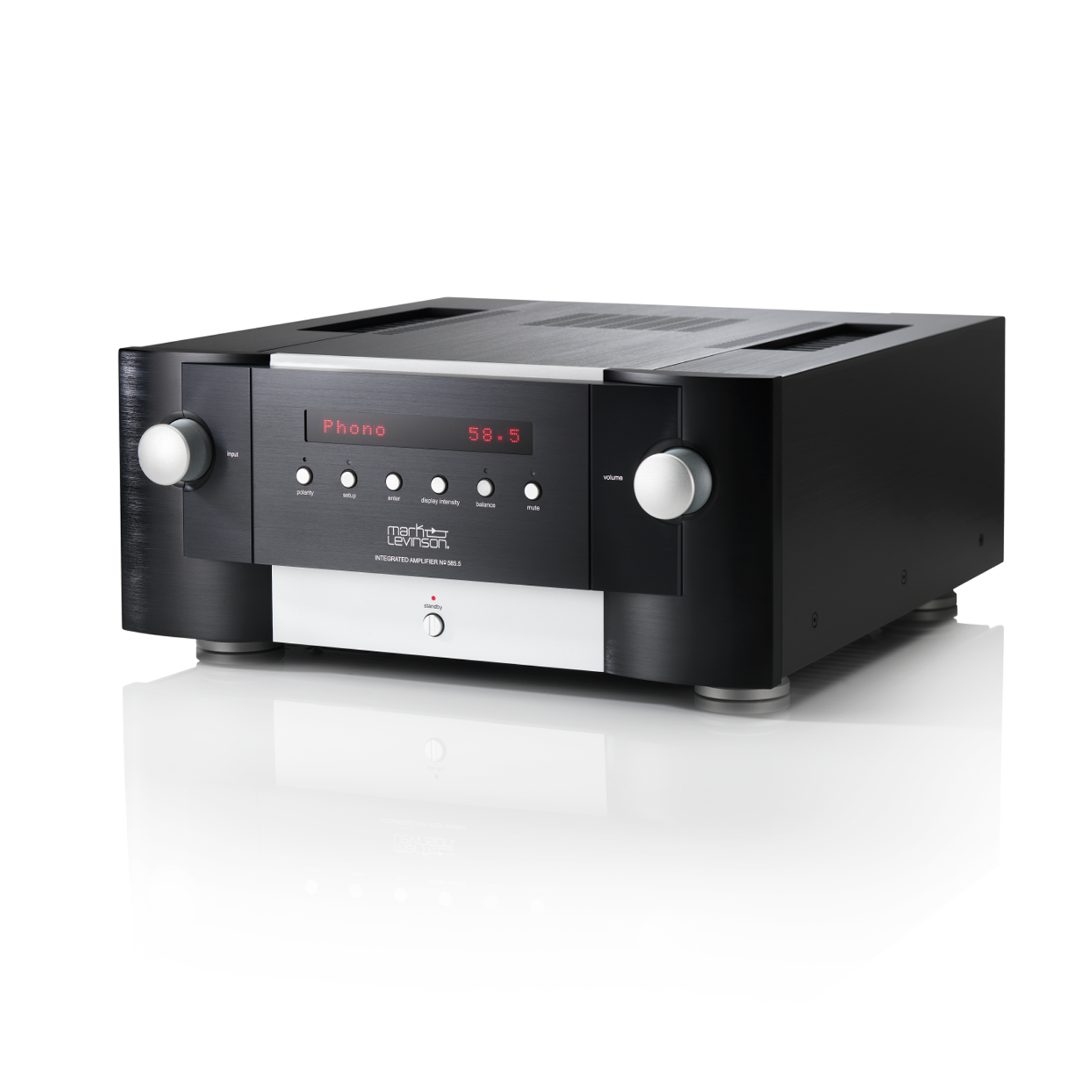

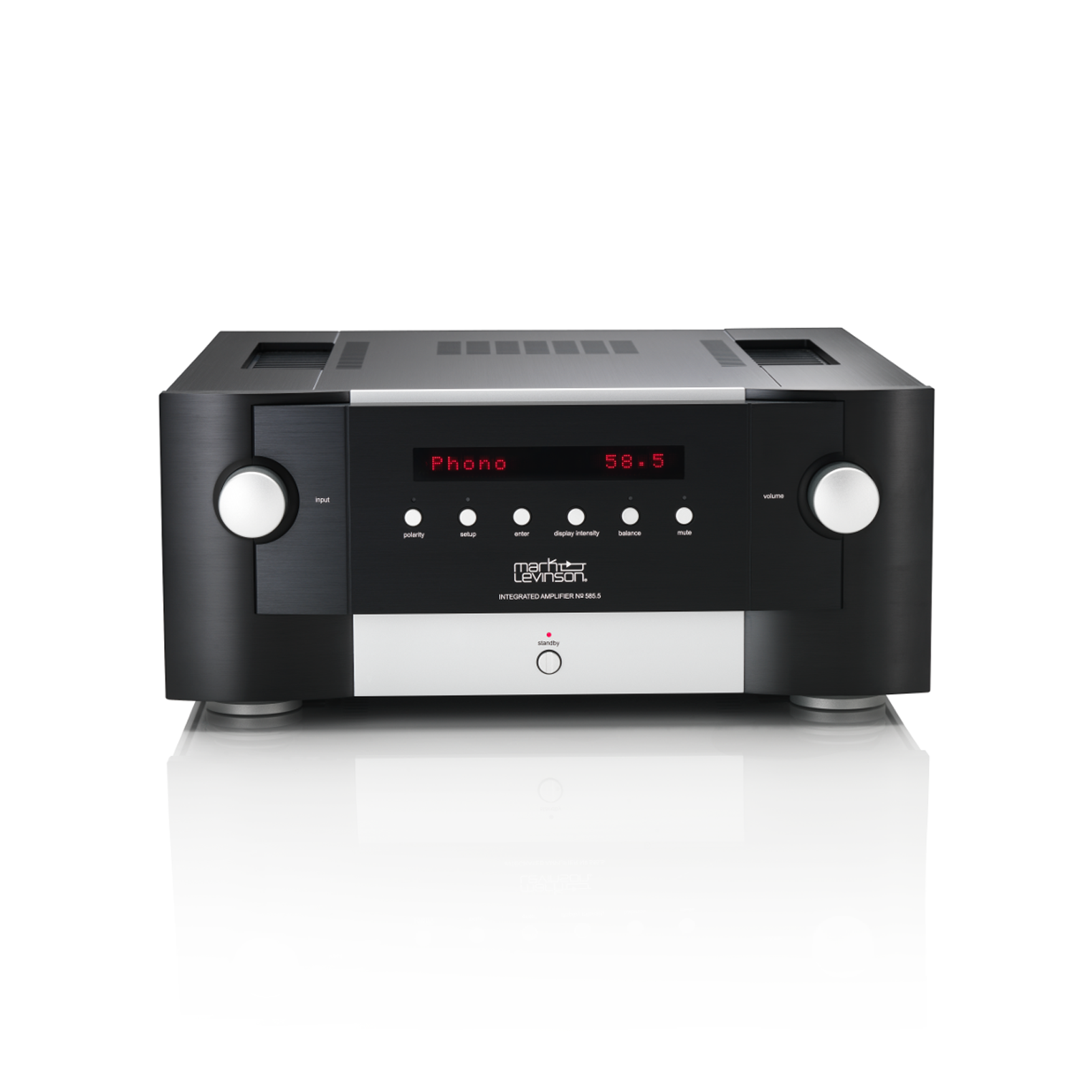

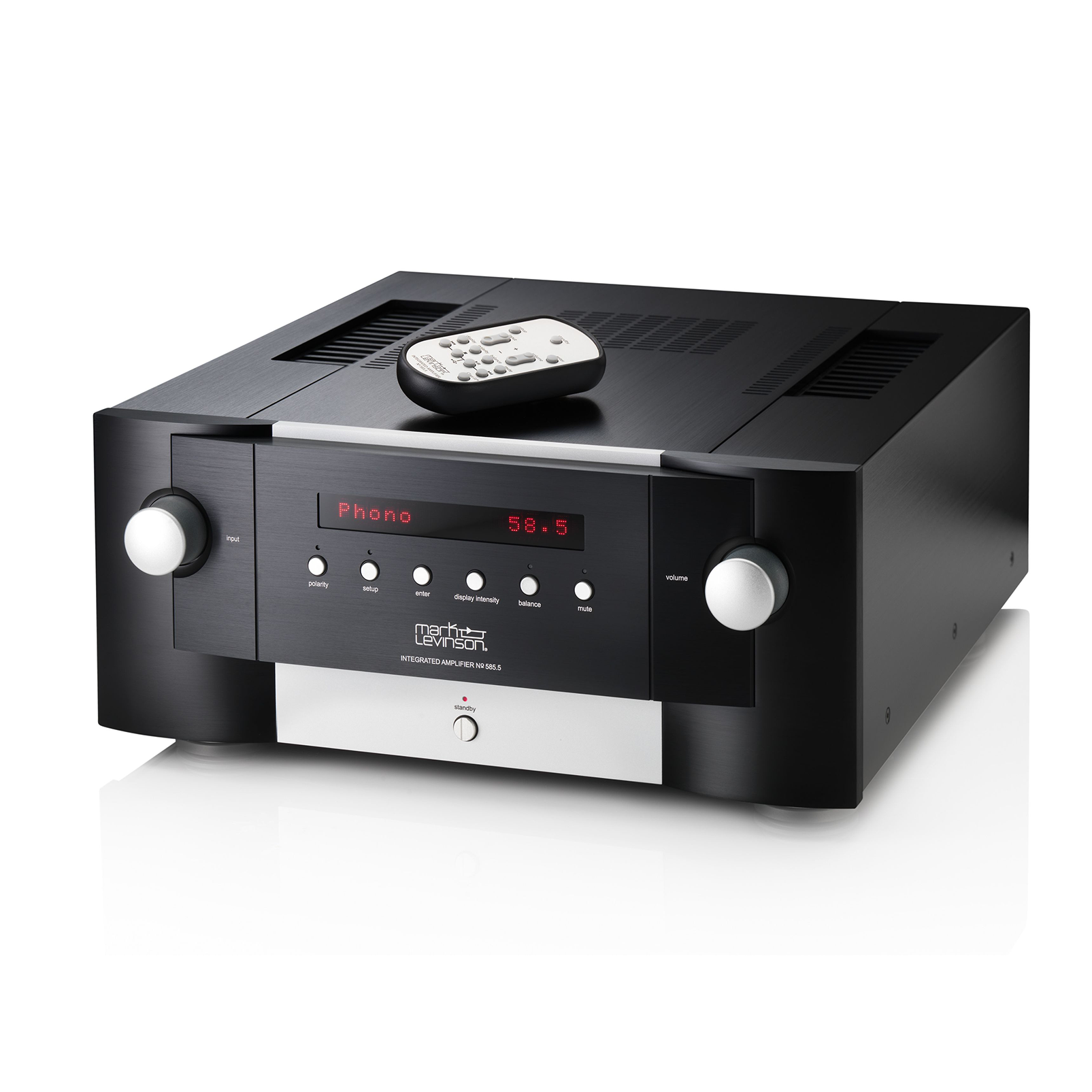

Mark Levinson N° 585.5 - Integrated Amplifier

Sale price€23.500,00

Tax included. Shipping calculated at checkout

Find a deeper connection to the music you love with the № 585.5. This integrated amplifier delivers superb performance, reproducing any source material with exceptional realism, so you’ll be drawn into the details of your music with every listen.

Detailed digital audio

Unlock the full potential of your digital music collection. The № 585.5 features a high-quality Precision Link digital-to-analog converter (DAC) that accurately reproduces audio signals and minimizes noise, so you can hear the truth, passion and detail of every note.

Pure power

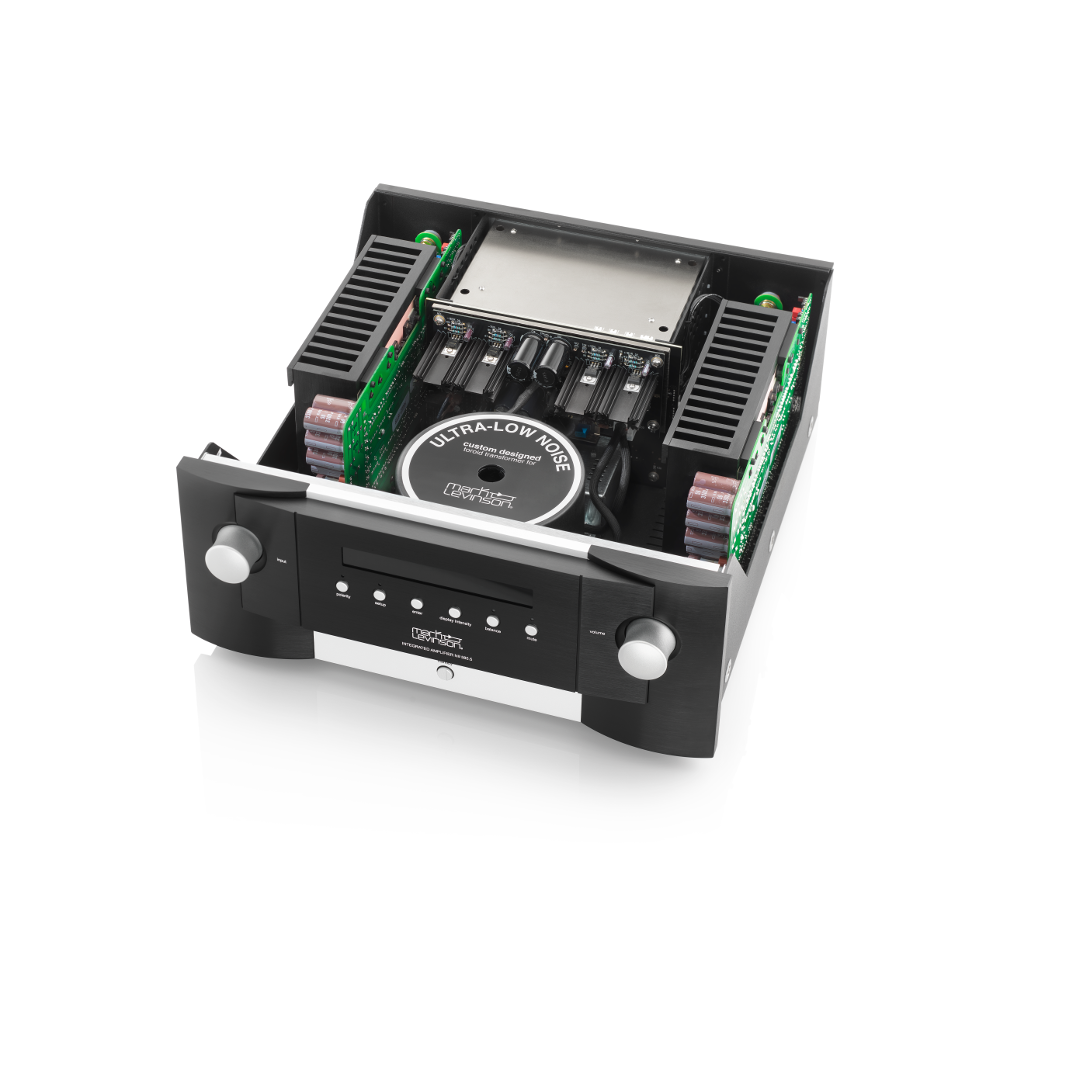

Fill your home with distortion-free sound. The № 585.5 features an oversized toroidal transformer and massive capacitors that provide all the headroom you need for your most dynamic performances.

Pure Path Circuit Design

Our proprietary approach to circuit design delivers uncompromising musical purity and an immersive listening experience. Using discrete components carefully selected for their precise function, the № 585.5 delivers unparalleled sound quality that captures the nuances of every note.

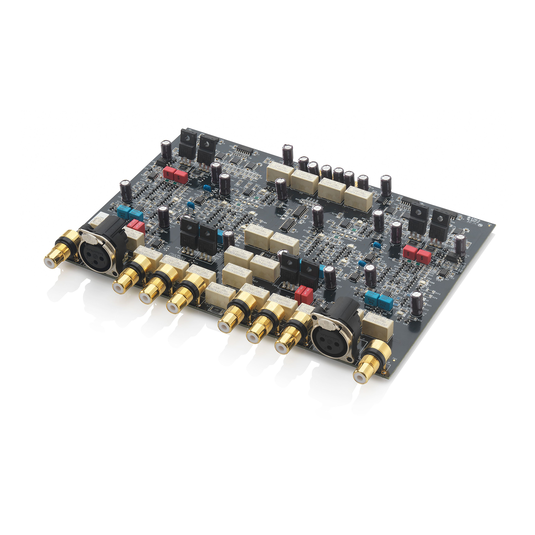

Pure Path Phono Preamplifier: A discrete design with no op-amps and operates exclusively in Class A throughout

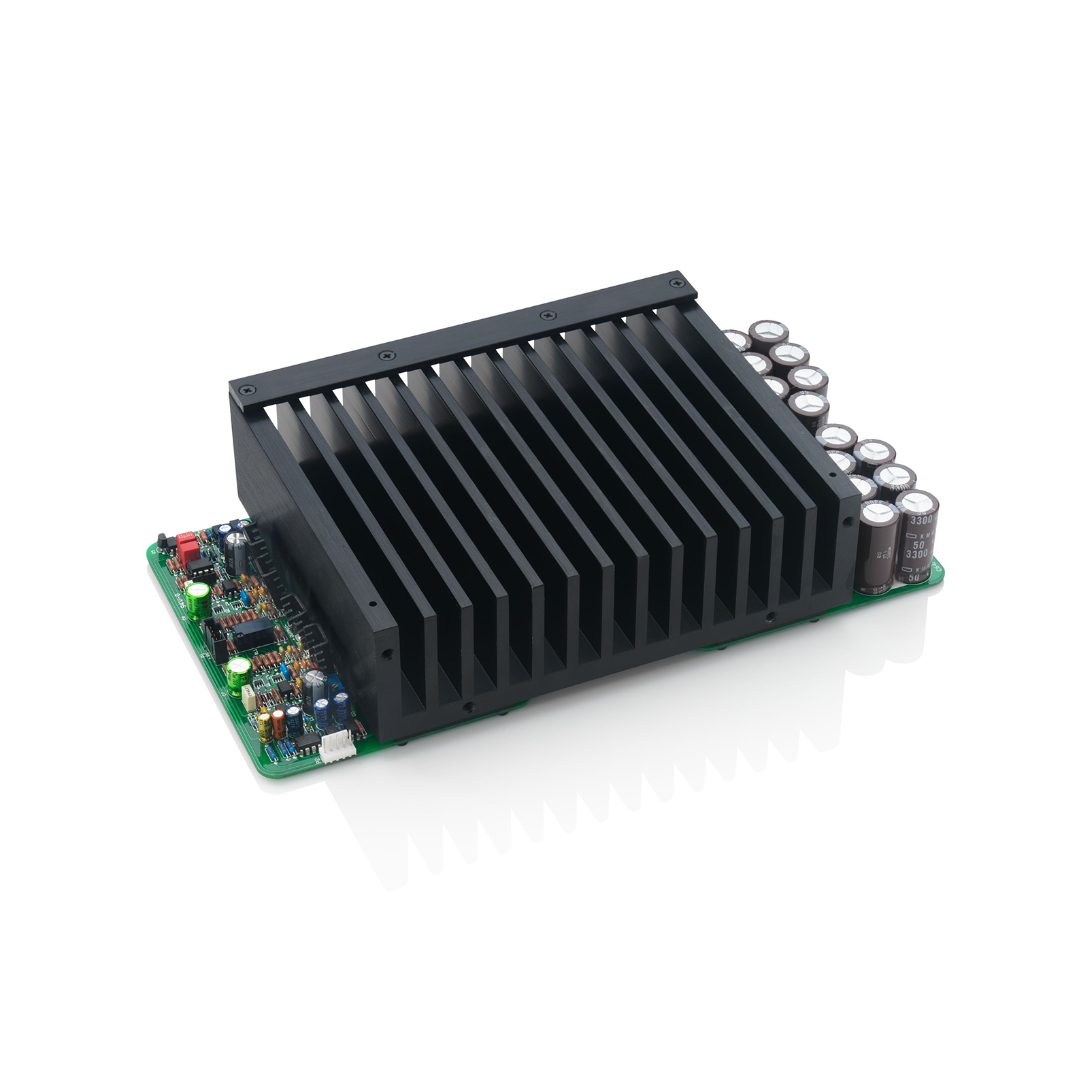

High-resolution sound from Class A/B amplifiers
Fixed gain moving magnet (MM) section with 5 capacitive cartridge loading settings
Discrete analog circuitry throughout
Moving coil (MC) section with three gain settings and 10 resistive cartridge loading settings
The ultrasonic filter intelligently compensates for reverberation and distortion
32-bit/192kHz performance, including DSD over PCM via USB 80Hz high-pass option allows proper operation of a 2.1-channel system
Designed and handcrafted in the USA

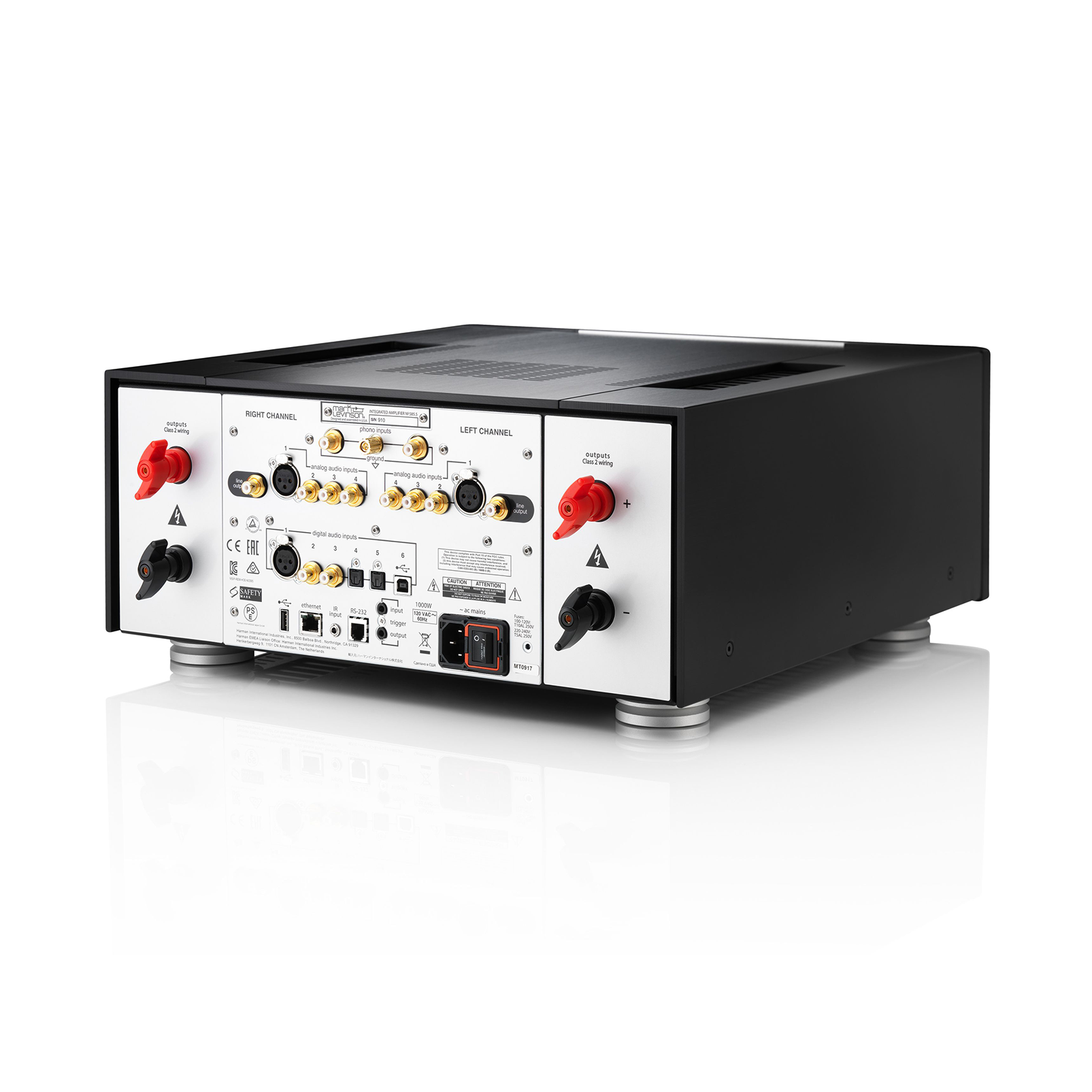

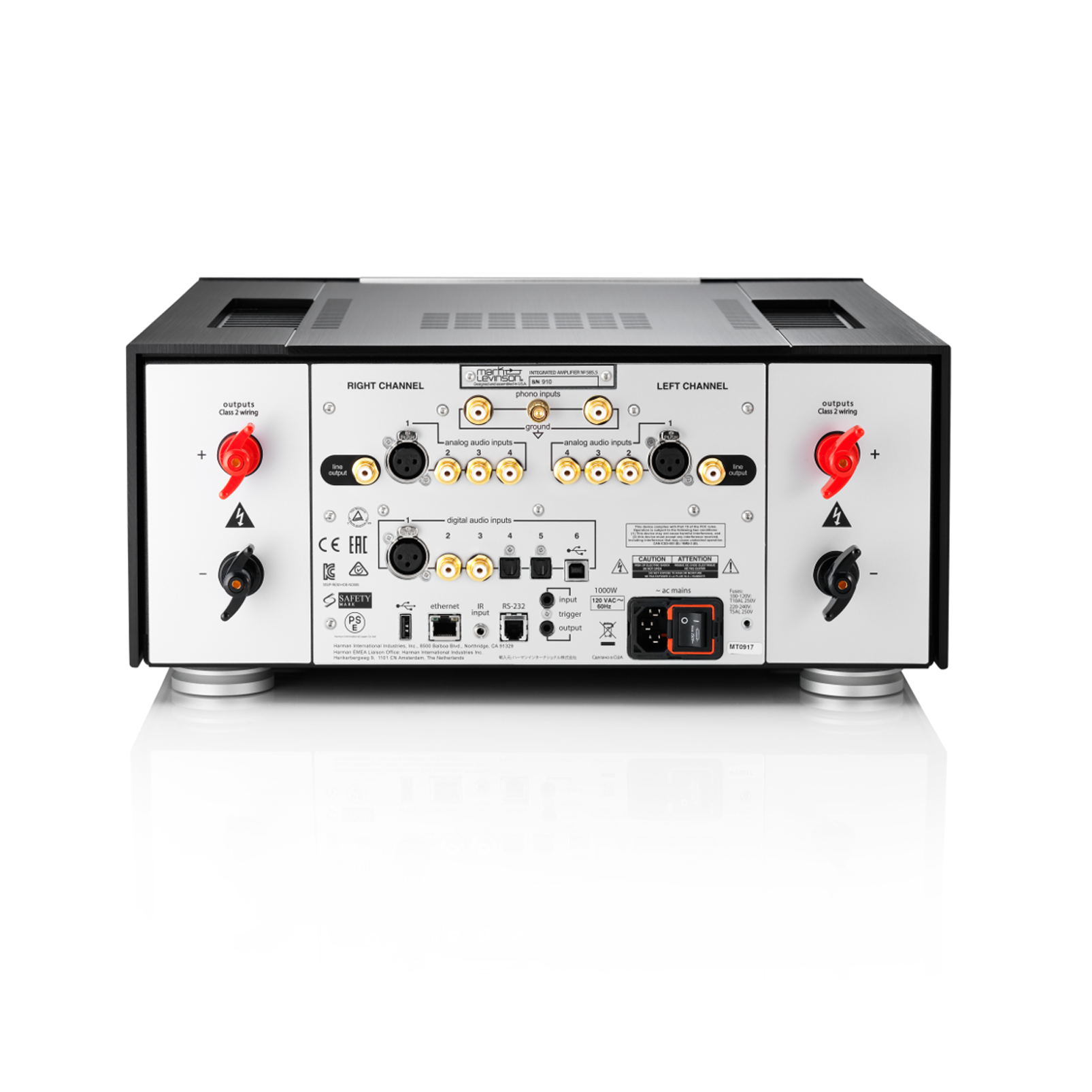

Entrances
6 digital inputs: USB, AES/EBU, S/PDIF
4 analog inputs

Quantity:

Audio Specifications
RIAA frequency response
20 Hz to 20 kHz, ±0.3 dB
Deactivatable infrasonic filter, 15 Hz, 2nd order (12 dB/octave)

Input Resistance (Moving Magnet Mode)
47kΩ
Input capacity (Moving magnet mode)
selectable; 50, 100, 150, 200 or 680 pF
Gain (Moving Magnet Mode)
40dB at 1kHz
THD+N, 20Hz to 20kHz, 2VRMS output (Moving Magnet Mode)
<0.03%
Input Resistance (Moving Coil Mode)
selectable; 20, 33, 50, 66, 100, 200, 330, 500, 1000 or 47k
Input Capacitance (Moving Coil Mode)
50pF
THD+N, 20Hz to 20kHz, 2VRMS output (Moving coil mode)
<0.02%, 50 or 60 dB settings, <0.04%, 70 dB setting
Gain (Moving Coil Mode)
selectable; 50, 60 or 70 dB at 1 kHz
Output power
200 W RMS per channel at 8 Ω, 20 Hz – 20 kHz
Damping factor
>400 at 20 Hz, referenced to 8 Ω
Frequency response
20Hz – 20kHz, ±0.13dB; 2Hz – 250kHz, +0.2dB/–3dB
Signal to noise ratio
>98dB (20Hz – 20kHz, unweighted); >103dB (20Hz – 20kHz, A-wtd), referred to full power – maximum volume setting
Voltage gain
40.7dB (maximum volume setting)
Total Harmonic Distortion
<0.01% at 1kHz, 200W, 8 Ω; <0.1% at 20 kHz, 200 W, 8 Ω
Preamplifier section (analog)
Input impedance
Preamplifier section (analog)
Input overload
Preamplifier section (digital)
DAC card - same as no. 585
Full scale DAC output voltage (0 dBFS)
3.7 VRM
DAC Frequency Response
20 Hz to 20 kHz, +0 / ¬–0.2 dB
THD DAC, full scale (0 dBFS)
<0.0001% at 1 kHz, <0.0003% at 20 kHz
DAC SNR (referred to 3.7 VRMS / 0 dBFS output)
>120 dB (A-weighted)
PCM sampling rates/bit depths
32, 44.1, 48, 88.2, 96, 176.4 or 192 kHz; up to 32 bits
DSD
Native or DoP (DSD over PCM), single and double speed (2.8 and 5.6 MHz)
