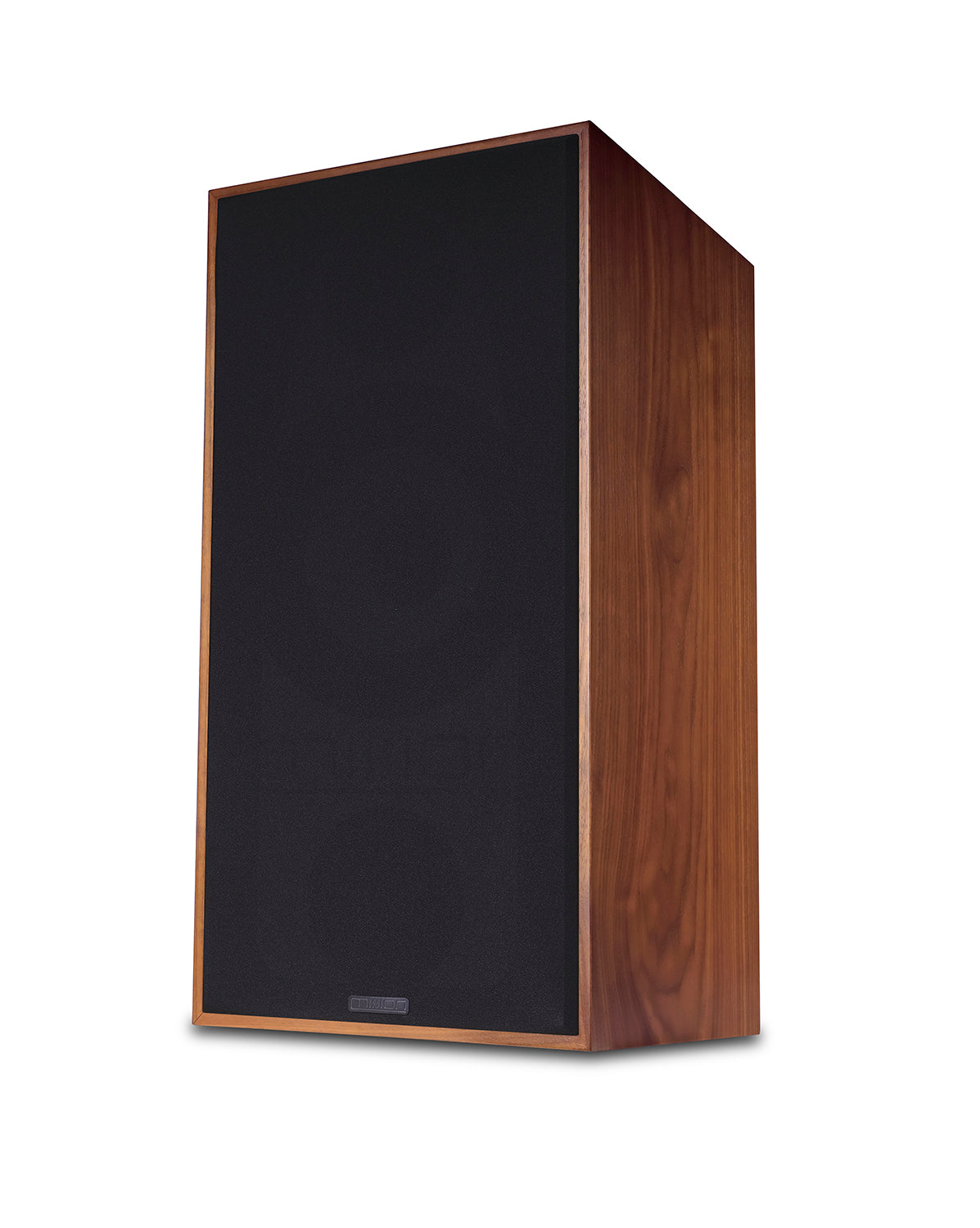

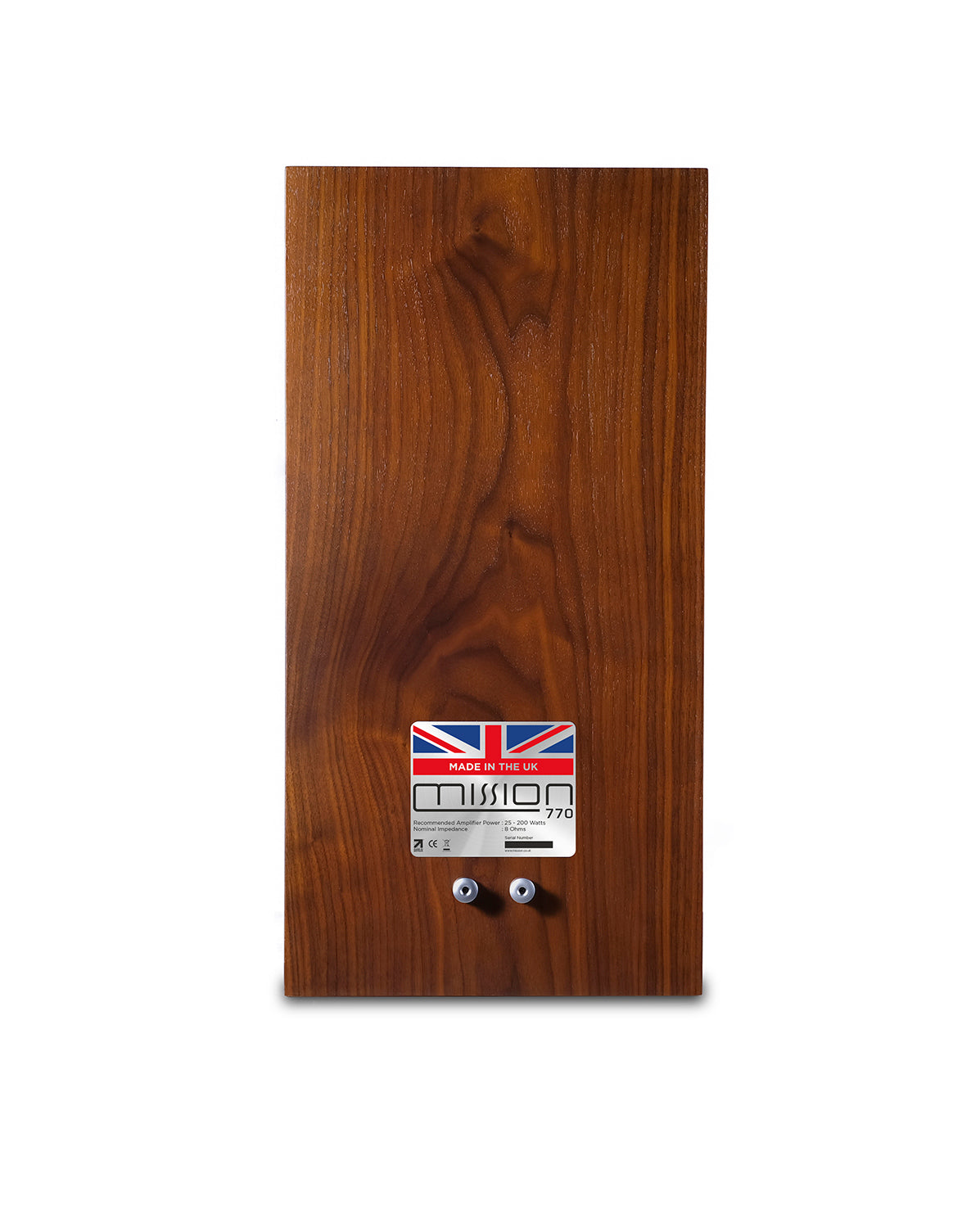

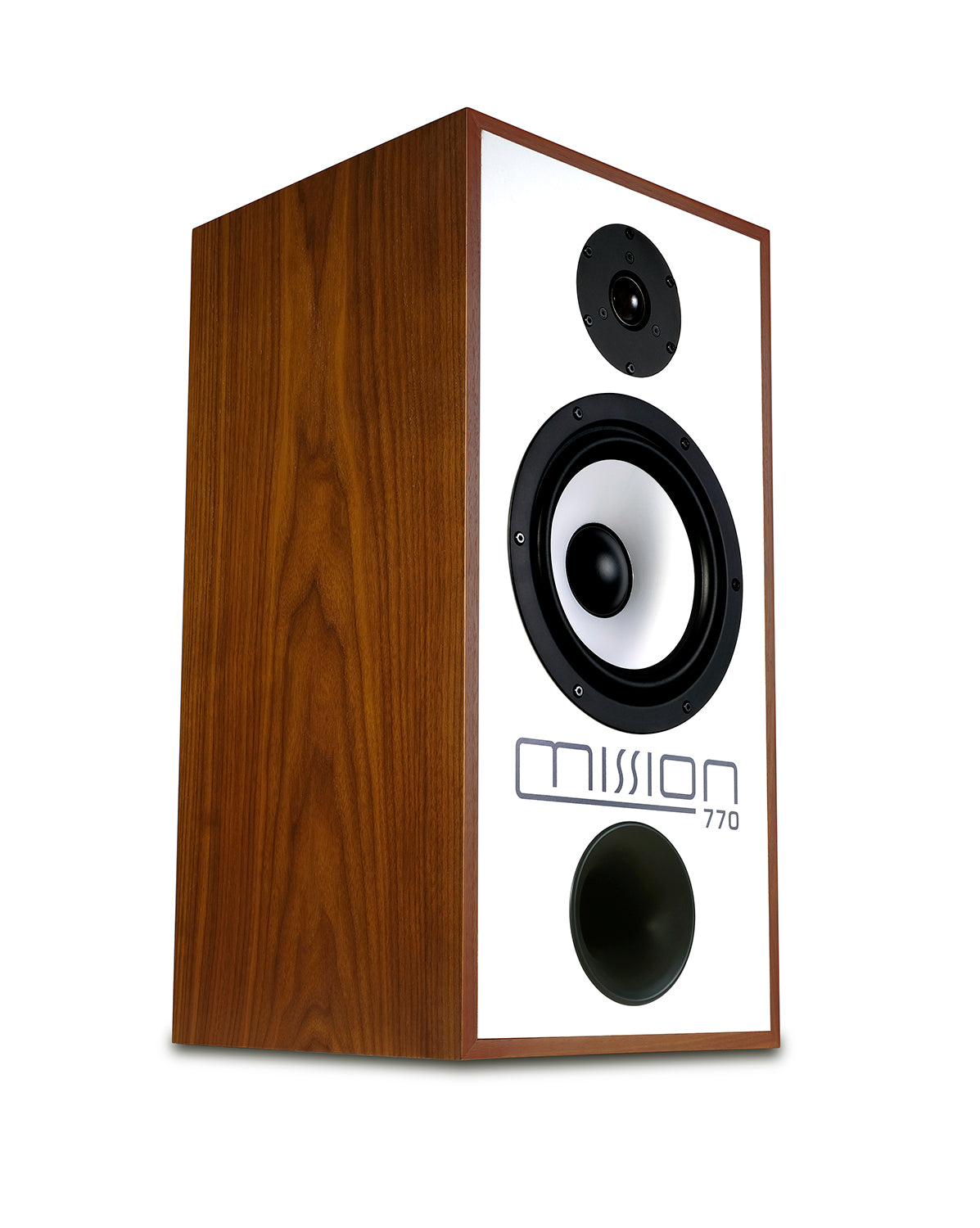

Mission 770 - Pair of speakers
The Mission 770 represents one of the most iconic models in the long history of Mission loudspeakers. The original Mission 770 debuted in 1978. It quickly became Mission's best-selling loudspeaker and naturally gravitated into the MK2 and MK3 modifications with improvements to sensitivity and power handling.
The original 770 was well known for its warm, rich, natural sonic character and the new Mission 770 maintains that standing but infuses it with an open, detailed performance that will entice you to explore your entire music collection once again.
The design emphasis of the new Mission 770 is, in fact, that combination of polypropylene cone and controlled-resonance cabinet.
As a result, Mission developed a new polypropylene driver, mimicking the extended response and low coloration of the original, while updating the motor system to account for modern power handling and dynamic requirements.
Characteristics
- Pair of 2-way bass reflex standmount speakers (included)
- 25 - 200 W, Impedance 8 OHm, Sensitivity 88 dB
- 1 200 mm polypropylene/mineral fiber woofer
- 1 x 28mm Soft Dome Tweeter
- Front panel finish White, cabinet Walnut, stand Black
- Diffuser dimensions (WxHxD): 300x590x322 mm
- Stand dimensions (WxHxD): 300x445x300 mm
- Speaker weight (each): 19.2 kg
- Stand weight (each) 17.9 kg
Price per pair, stands included.
Technical specifications
| General Description | 2-way vented box / standmount |
| Enclosure Type | Bass reflex |
| Transducer Complement | 2-way |
| Bass Driver | 8" (200mm) mineral loaded polypropylene cone |
| Treble Driver | 1.25" (28mm) soft dome |
| AV-Shield | No |
| Sensitivity (2.83V @1m) | 88dB |
| Recommended Power Amplifier | 25-200W |
| Peak SPL | 117dB |
| Nominal Impedance | 8 |
| Minimum Impedance | 6 |
| Frequency Response (+/-3dB) | 42Hz ~ 20kHz |
| Bass Extension (-6dB) | 30Hz |
| Crossover Frequency | 2.9kHz |
|
Cabinet Volume (in litres) |
38.5L |
|
Dimensions (mm) |
|
| Height (on plinth) | 590mm |
| Width | 300mm |
| Depth (with terminals) | (300+22)mm |
| Net Weight | 19.2kg/pcs |
