MoFi MasterPhono - Phono Preamplifier - USED

USED, EXCELLENT CONDITION

WITHOUT ORIGINAL PACKAGING

6 MONTH WARRANTY

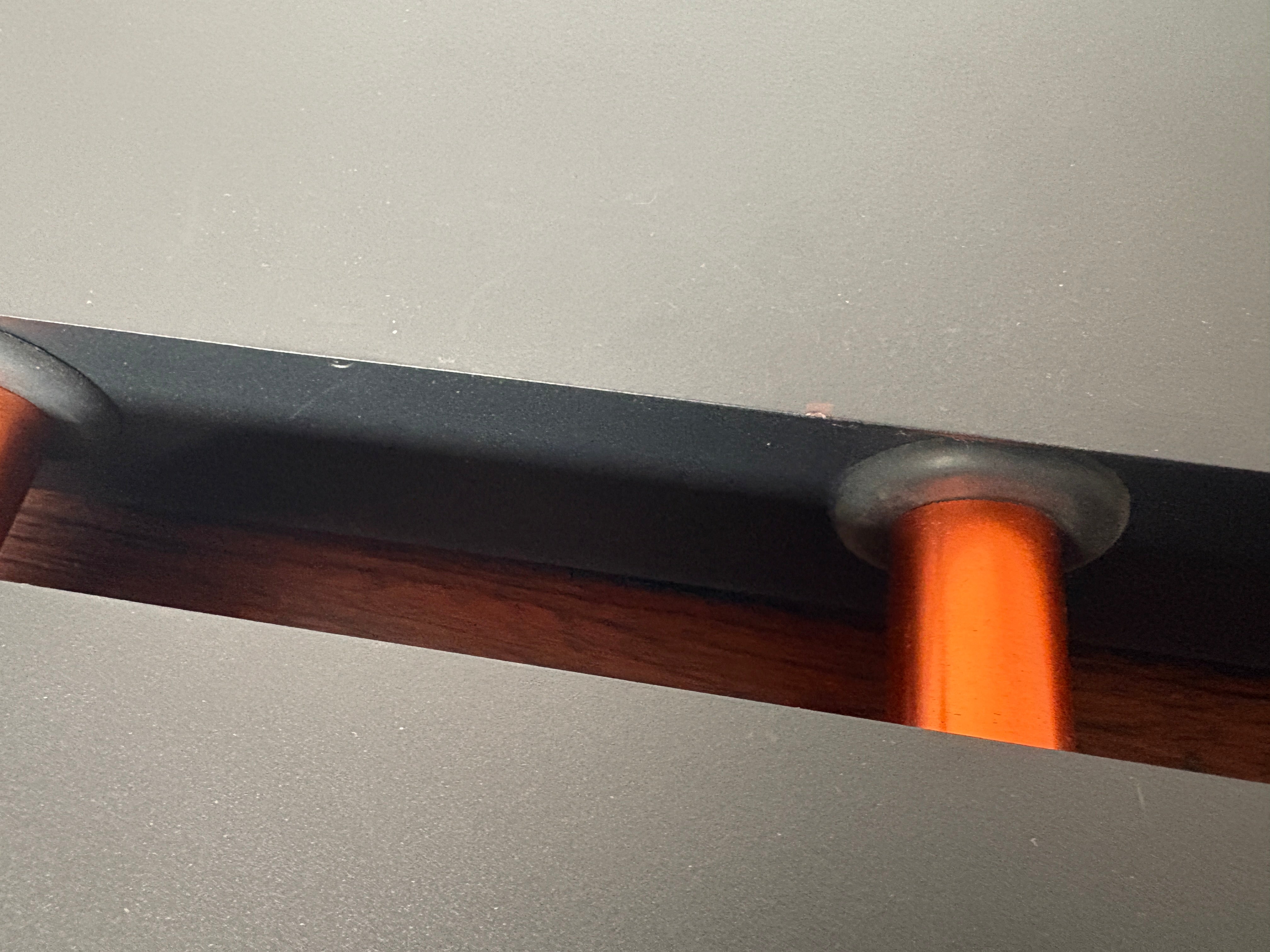

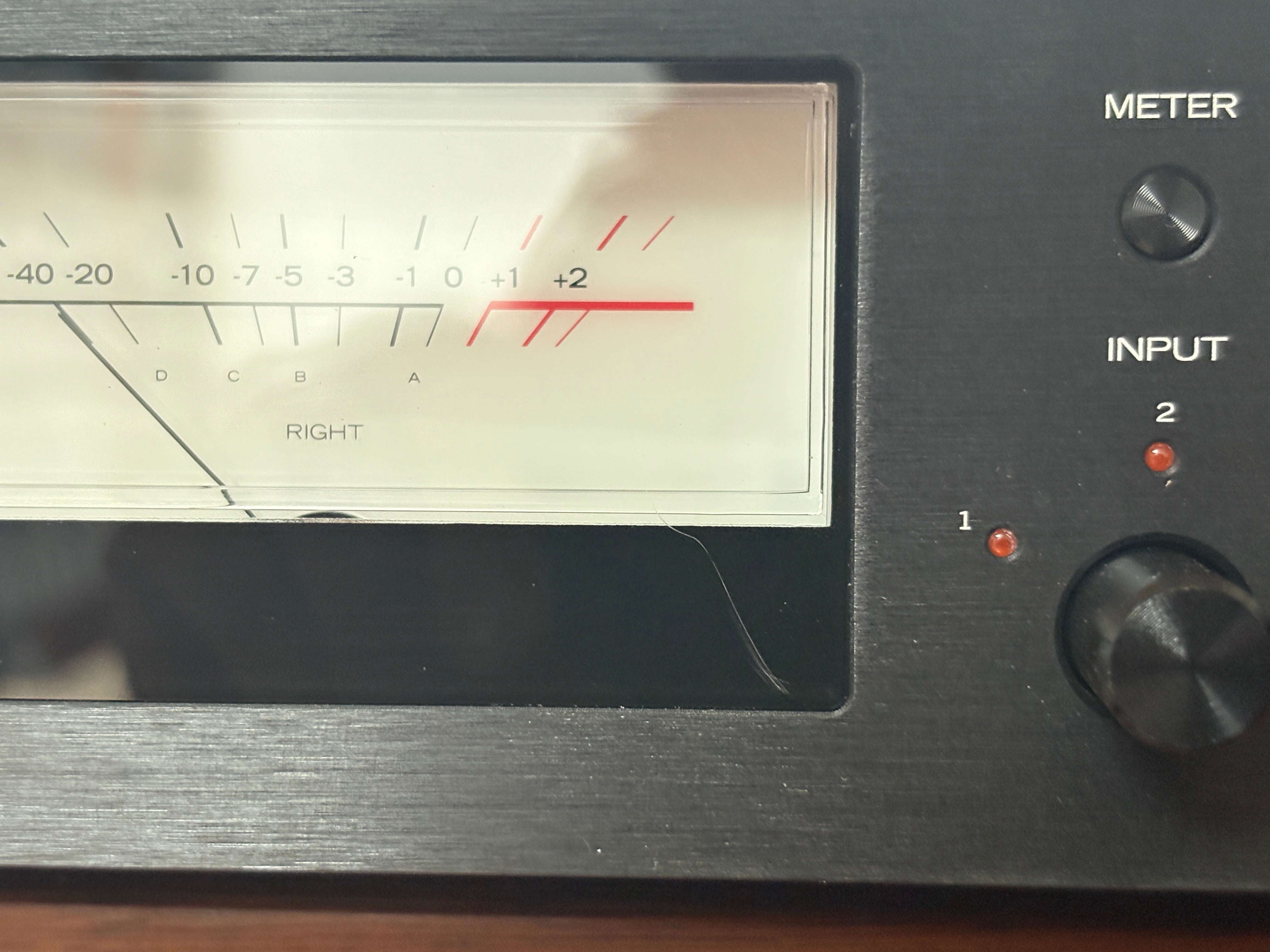

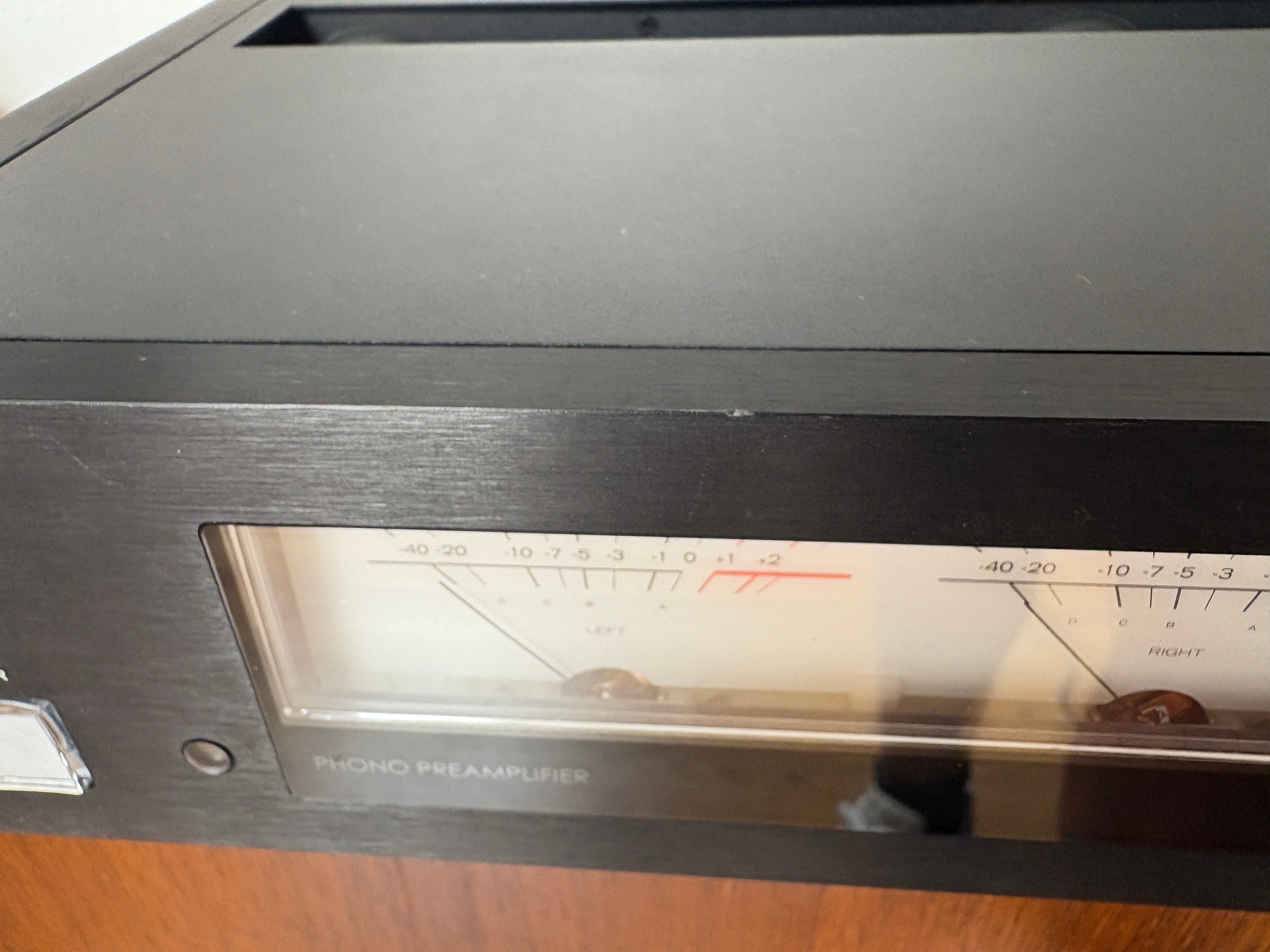

SOME SMALL AESTHETIC SIGNS AS PER PHOTO

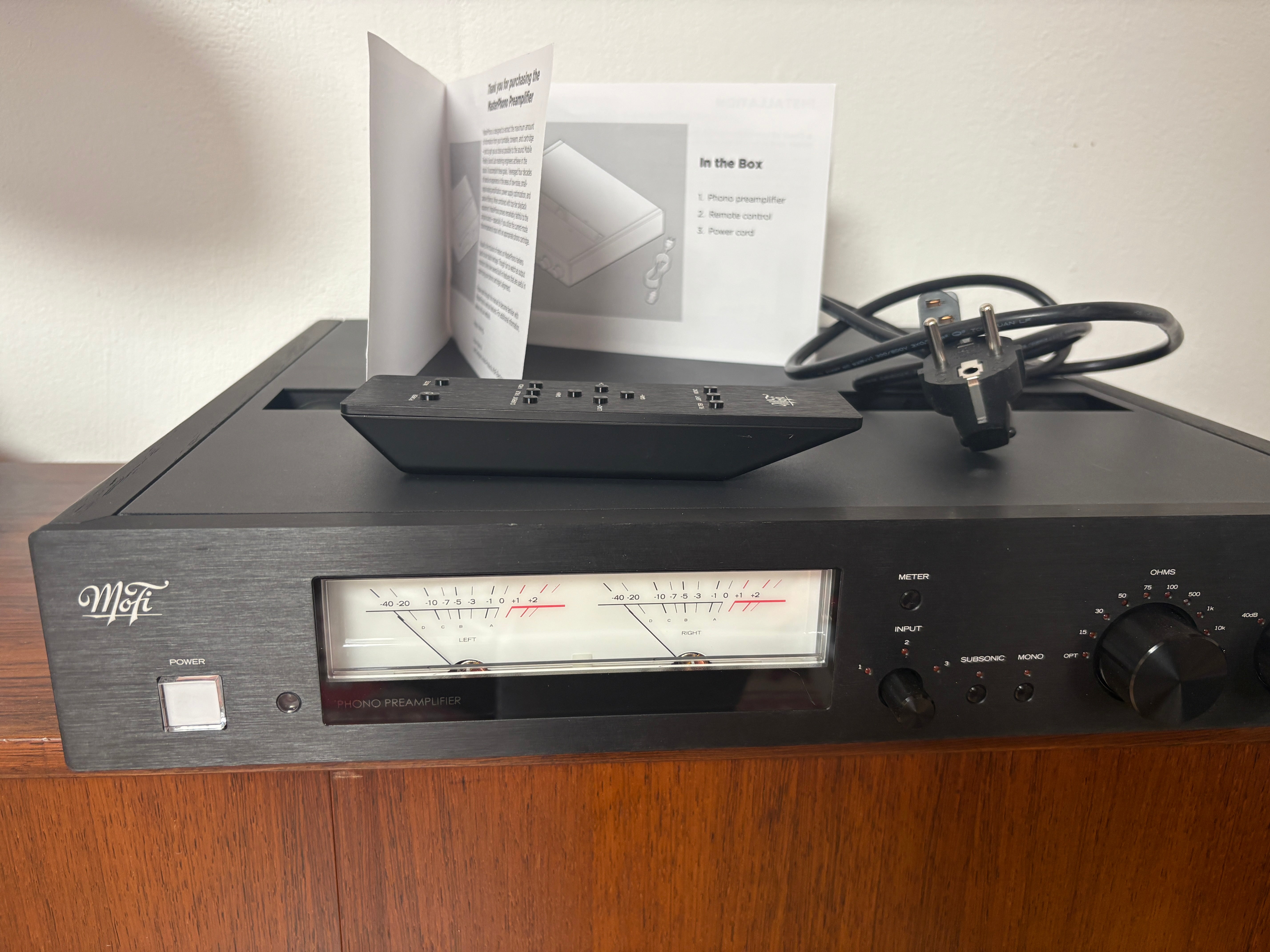

MoFi MasterPhono,

The all-analog MasterPhono preamplifier was developed in collaboration with renowned audio engineer Peter Madnick, known in the audio industry for his extraordinary audiophile designs.

Versatility
In addition to its superior audio quality, the MasterPhono stands out for its extraordinary versatility. With multiple separate inputs and balanced and unbalanced outputs, the preamplifier offers a wide range of user-configurable settings, all easily accessible from the front panel. The analog meters on the front panel embody true MasterPhono tradition. A USB input allows for the addition of future features and software updates, ensuring a future-proof user experience.

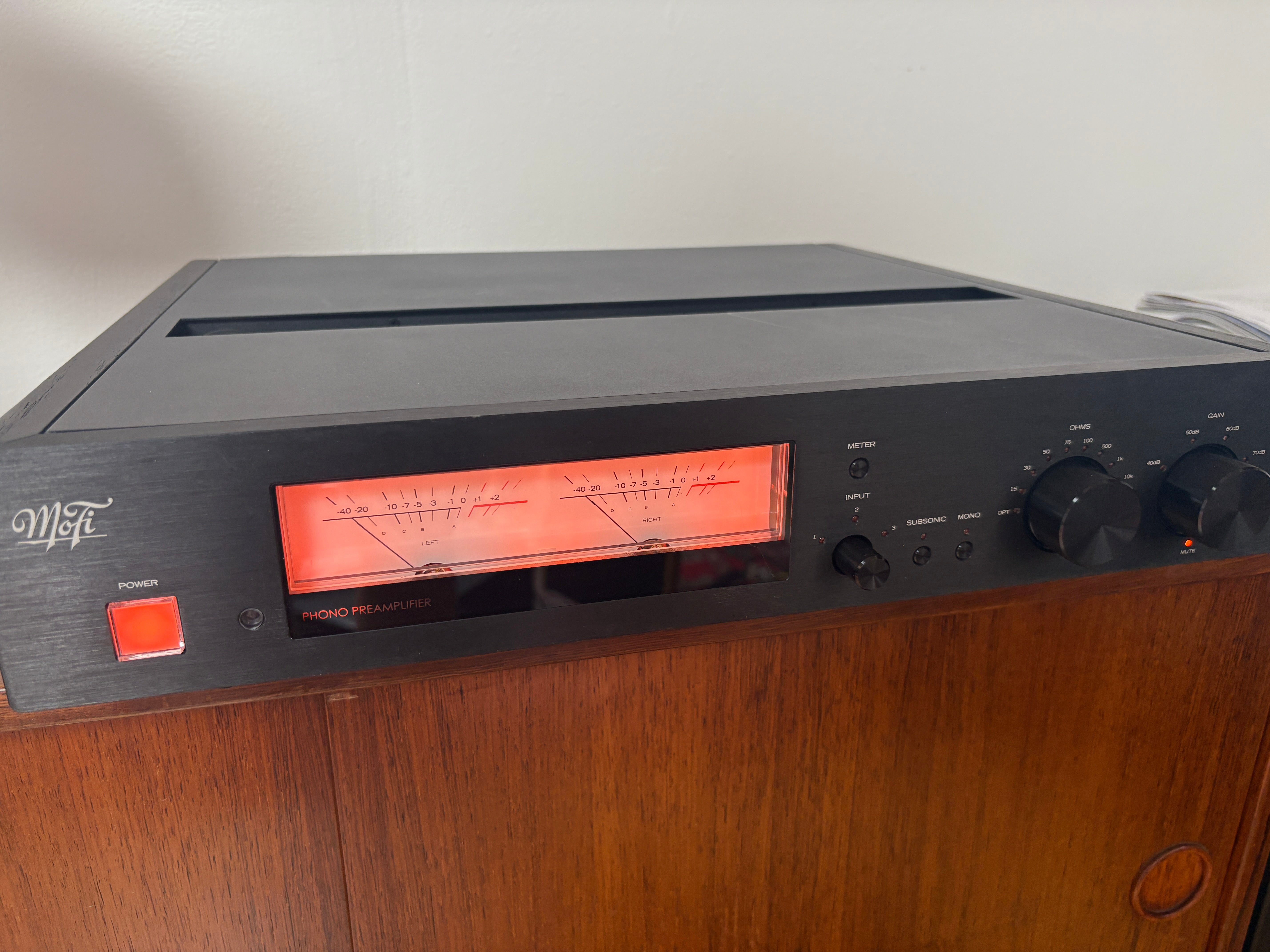

Dual-function VU Meter
The high-quality, fast and accurate VU meters not only visually monitor the output voltage, but are also ideal for precise adjustment of the needle azimuth.

Entrances

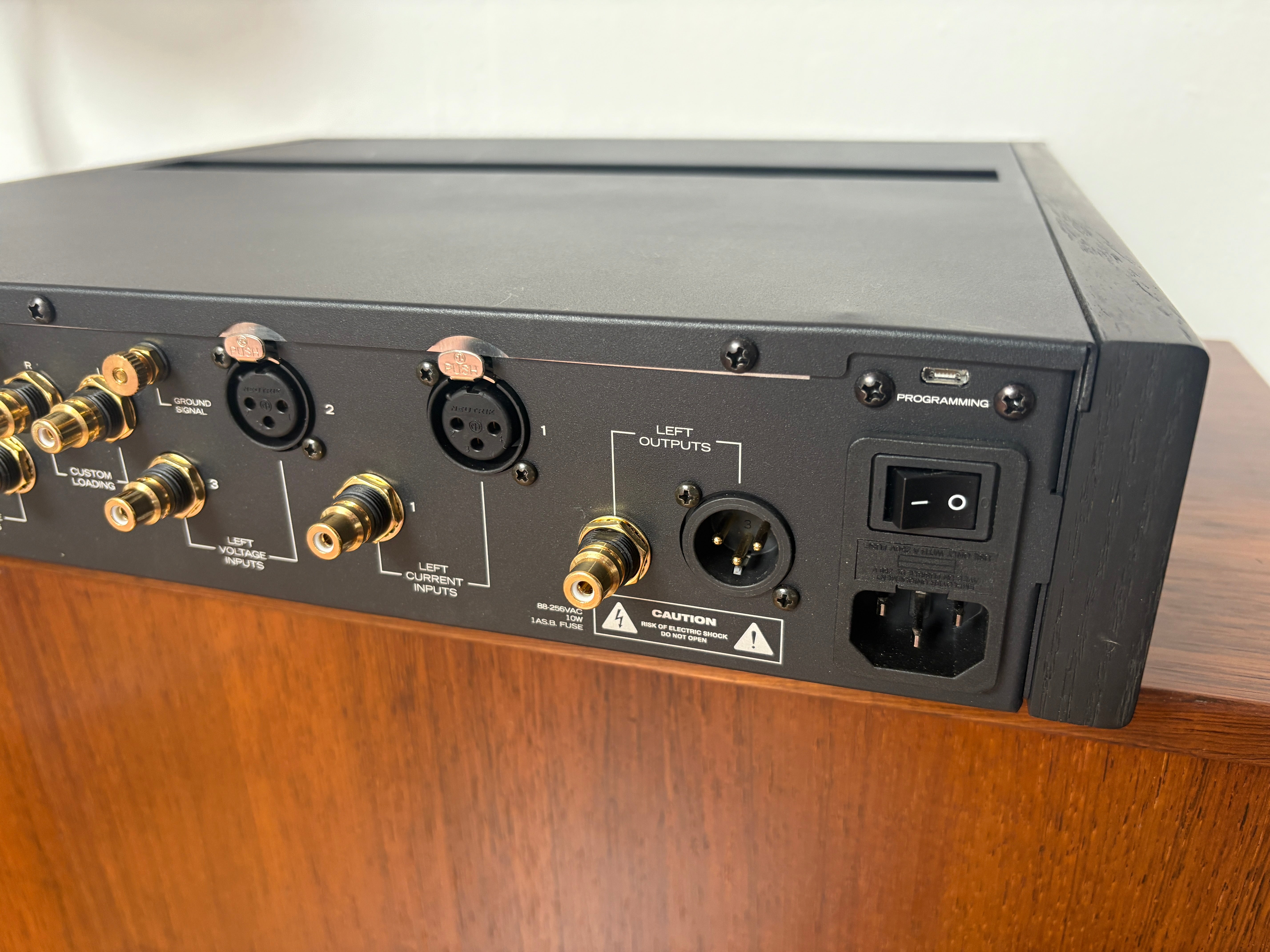

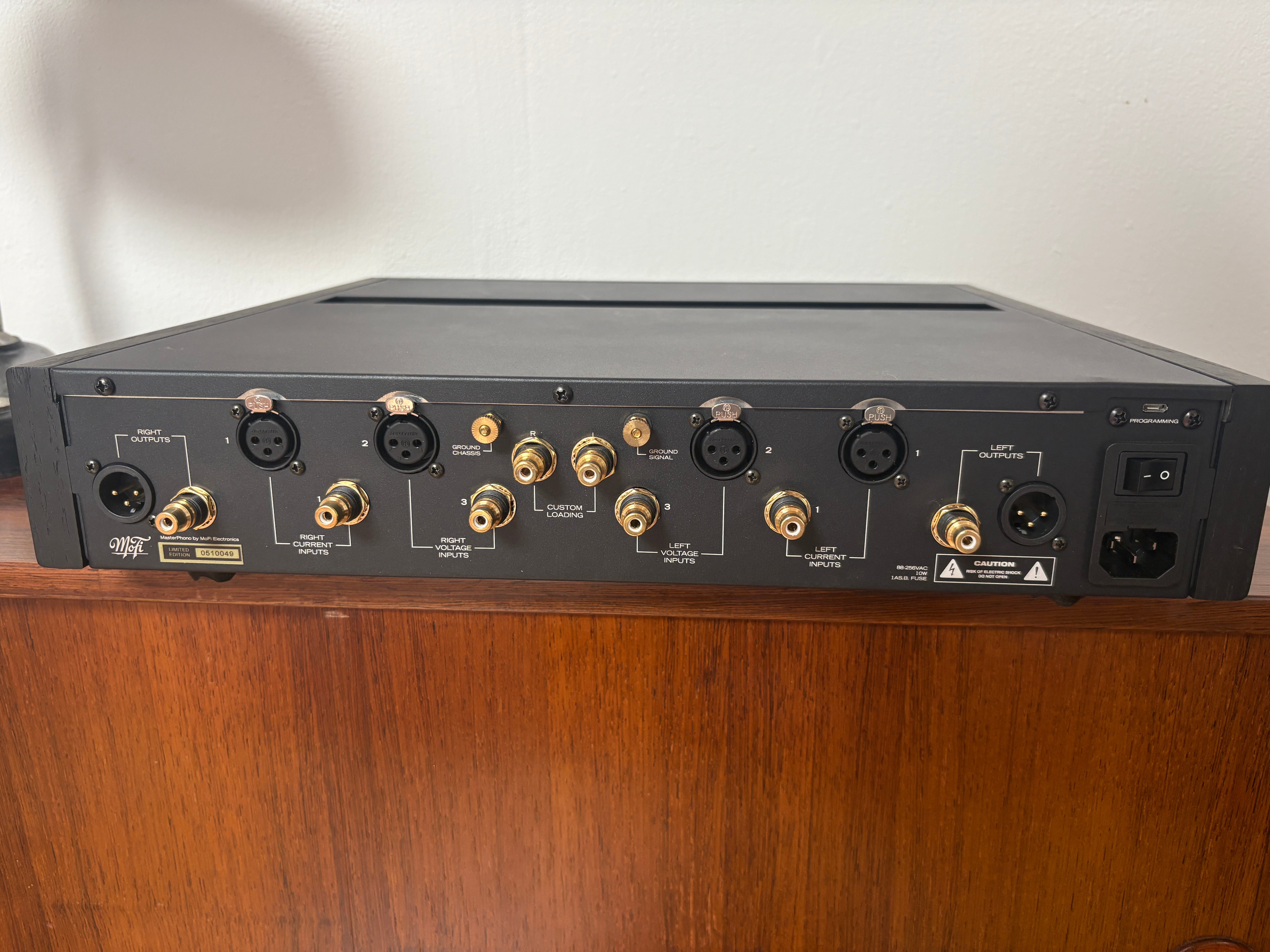

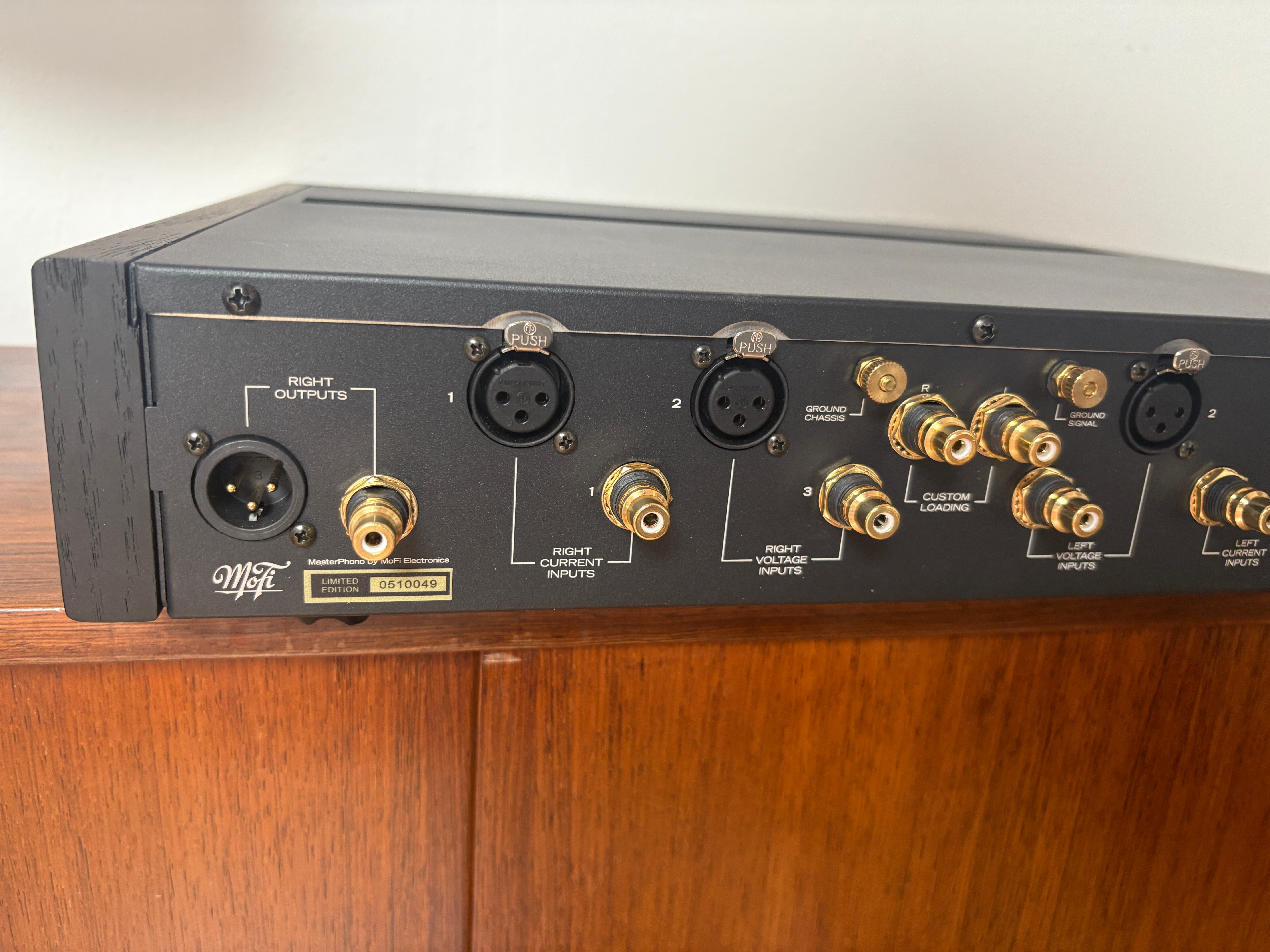

The MasterPhono has two fundamentally different input types. In addition to the standard voltage-controlled input, the MoFi MasterPhono offers a special current-controlled input. Both input types are available in either a fully balanced XLR or standard RCA version.

Exits
A fully balanced XLR output and an RCA output are available.

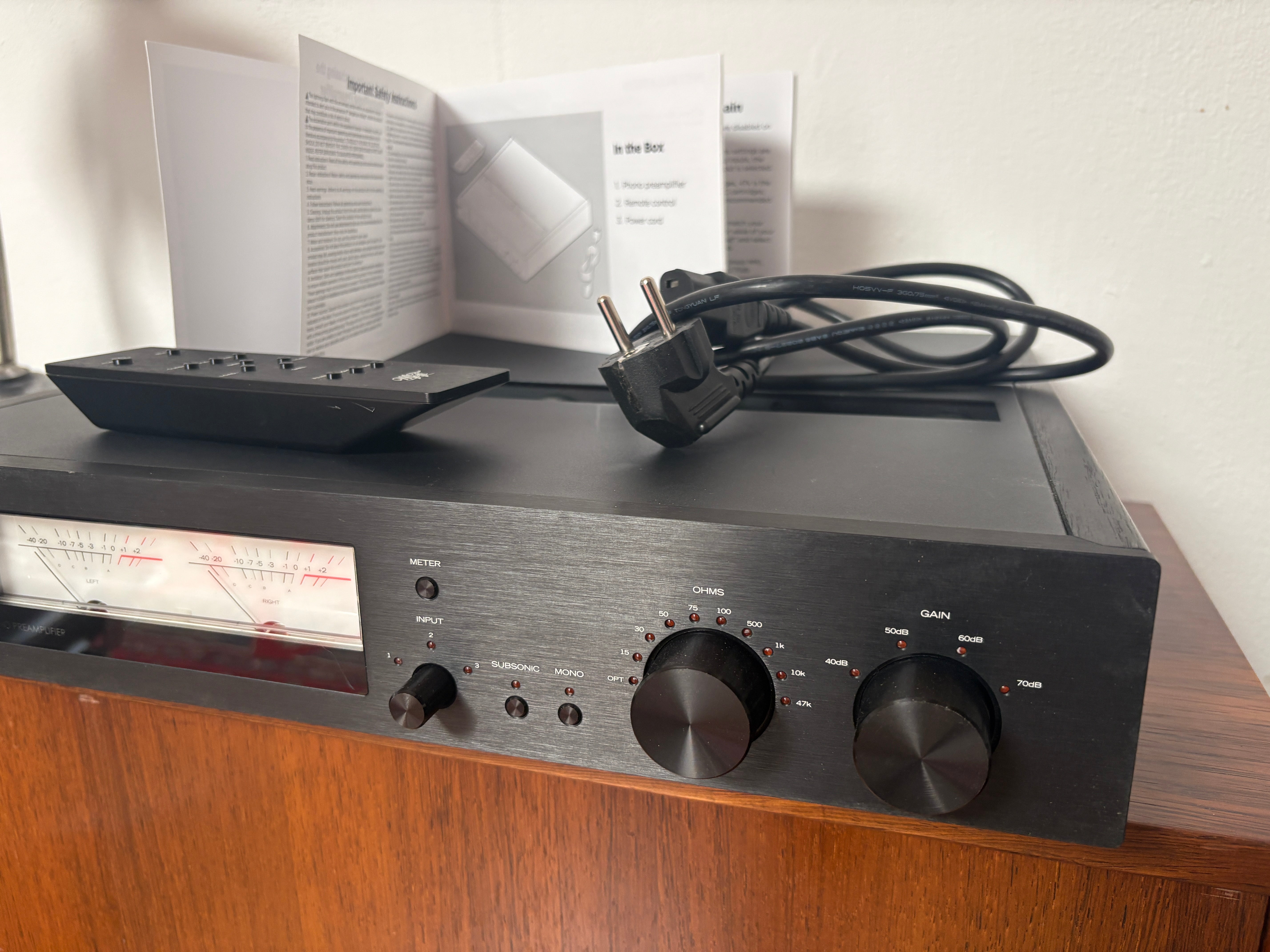

Remote control

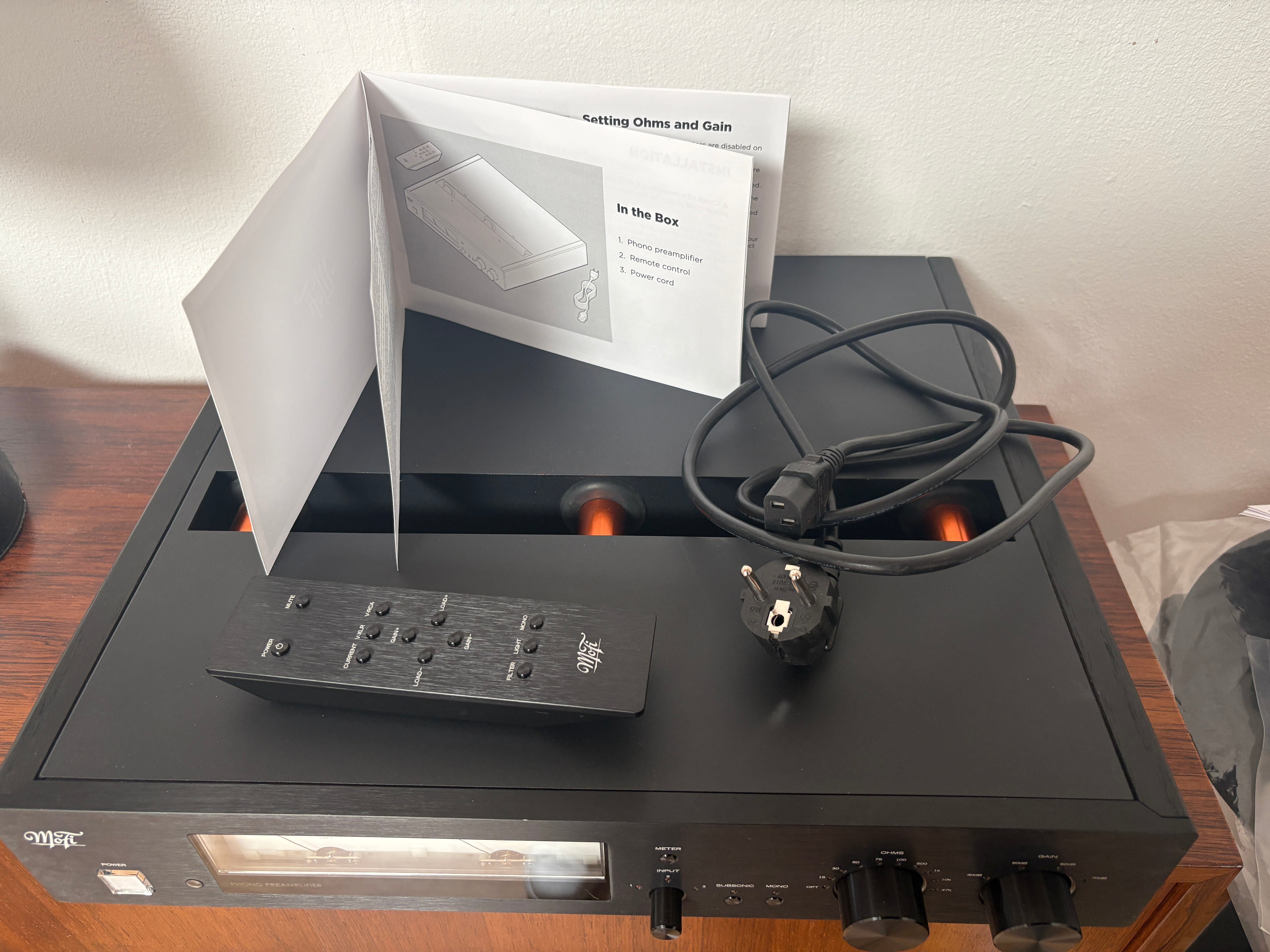

Input selection, gain adjustment, termination selection, mono switching, subsonic filter and mute function can be controlled manually on the device or via the included remote control.

Fully symmetric circuit design
The MoFi MasterPhono features a fully symmetrical, DC-coupled, servo-controlled circuit design.

Technical data:

Reinforcement:
Selectable gain for MM or MC 40db, 50db, 60db, 70db

THD:
10mV@1KHZ MM low: 0.005% A-weighted
10mV@1KHZ MM high: 0.005% A-weighted
1mV@1KHZ MC low: 0.010% A-weighted
1mV@1KHZ MC high: 0.013% A-weighted

Termination resistance:
15 Ohm, 30 Ohm, 50 Ohm, 75 Ohm, 100 Ohm, 500 Ohm, 1K Ohm, 10K Ohm, 47K Ohm+150pF and "Custom"

Maximum output:
@1% THD, 10 Volts RMS

RIAA Accuracy:
+/- 0.05 dB

Frequency response:
10 Hz-50 kHz ±0.20 dB

Signal to Noise Ratio:
93 dB (MM), 85 dB (MC)

Dimensions (W x H x D):
43.2 x 8.9 x 40 cm

Weight:
6.8 kg

Michael Fremer writes in "The Tracking Angel" in 2023:
"The American-made MoFi MasterPhono is among the most versatile, easy-to-use, and fun-to-use phono preamplifiers available today.
And it's also among the most enjoyable to play for its price and beyond. Highly recommended."
