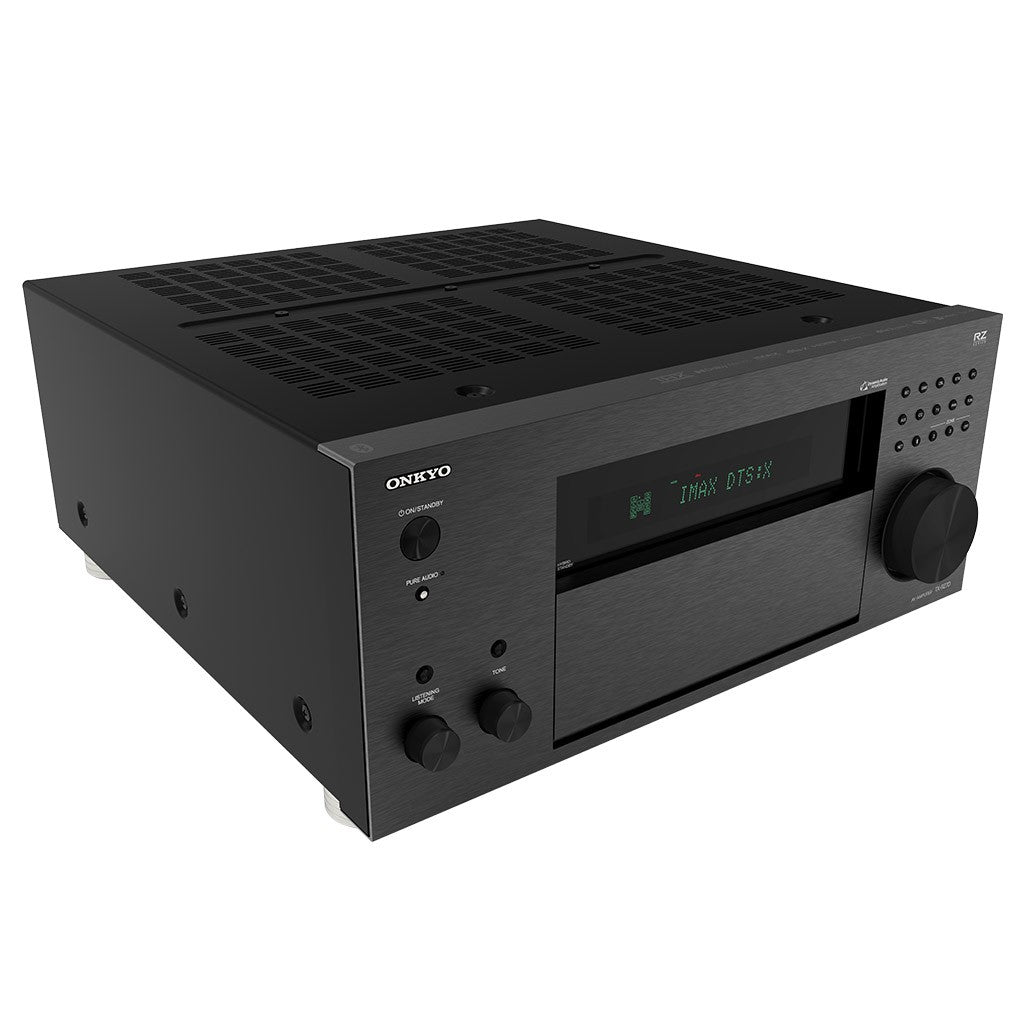

Onkyo TX-RZ70 - THX Certified 11.2-Channel AV Receiver

The TX-RZ70 is our most complete audio/video amplifier. It delivers incredibly pure sound, exceptional imaging, and the latest technologies to power the heart of your audio system. With high-resolution audio/video playback, you'll enjoy your favorite movies, music, and games like never before.

Smart AV Amplifier, 11.2-channel 8K/4K Ultra HD integrated Audio/Video amplifier with top-level Audiophile, Videophile and Gaming performance, top of the range Onkyo - advanced construction with perfectly symmetrical layout, ultra-efficient dissipation system, Audiophile-quality power transistors, shielded power supply stage with proprietary high-current and low-noise power transformer, high-capacity Audio-Grade Custom-Made Dynamic Power capacitor bank (2x 18000uF) - 3D passthrough video resolution up to 8K/120p (7680x4320 px, 24/25/30/48/50/60 Hz, 4:4:4/4:2:2/4.2.0, 8/10/12 bit) and 4K/120p (4096/3840x2160 px, 24/25/30/48/50/60/100/120 Hz, 4:4:4/4:2:2/4.2.0, 8/10/12 bit) - 11 channels of Class AB amplification with 210 Watts RMS power per channel into 6 Ohms (250 Watts per channel, 1 kHz, THD 10%, one channel driven / 140 Watts per channel, THD 0.08%, 11 channels driven FTC) with DAA (Onkyo Dynamic Audio Amplification) system featuring HCPS (High Current Power Supply), Non-Phase Shift Amp and VLSC (Vector Linear Shaping Circuitry) technologies - digital/analog conversion circuitry based on 32-bit ESS Sabre ES9026Pro DAC chip with native support for formats up to DSD1024 and PCM 32-bit / 384 kHz - calibration and correction software state-of-the-art room acoustics with built-in Dirac Live® Room Calibration Full Bandwidth license (optional Dirac Live Bass Control), with the option to switch between the proprietary AccuEQ Room Calibration software - officially certified IMAX Enhanced Mode and THX Certified Select2 - dedicated processing for Gaming content with ultra-fast, crystal-clear and lag-free low-latency 8K and 4K/120UHD image reproduction - upscaling of 1080p content to 4K/8K resolution - Pure Audio Mode and Direct Mode to reproduce sound with maximum fidelity and purity - independent tone control circuitry for each channel (excluding Zone 3) - Klipsch Optimized Mode, with carefully calibrated crossover values, for a perfect match with Klipsch speakers - AccuReflex phase-matching technology to ensure consistent phase output for Dolby Atmos-Enabled channels - advanced adjustable Vocal Enhancer function capable of increasing the intelligibility of dialogues and items - HDMI 2.1 HDCP 2.3 Full Bandwidth 40GBPS interfaces with eARC/ARC (Enhanced/Audio Return Channel), VRR (Variable Refresh Rate), QFT (Quick Frame Transport), ALLM (Auto Low Latency Mode), DSC (Display Stream Compression) technologies, high dynamic range streams HDR10+, HDR10, Dolby Vision, HLG, BT.2020 and extended support for the highest performing and widespread stereo (DSD 2.8 MHz, PCM 24 bit / 192 kHz), multi-channel (PCM 7.1 24/192) and Bitstream (Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS Express, DTS:X, IMAX DTS, IMAX DTS:X, Auro-3D) - technologies and services latest generation streaming, with official Roon Tested and Roon Ready support, Chromecast Built-In, Apple AirPlay 2, Spotify, Amazon Music HD, Tidal, Deezer, Pandora, TuneIn - compatibility with Wi-Fi Multi-Room streaming DTS Play-Fi and Sonos Certified, with the ability to pair simultaneously and independently with three Sonos Ports in three different zones - integration with Smart Home ecosystems (including Apple AirPlay 2, Amazon Alexa, Google Home) with support for Siri, Ok Google Assistant, Alexa, Josh voice commands - compatibility with the most efficient and advanced control and automation systems, including Crestron, Control4, RTI, Savant, URC, Elan, Domotz, AVRC Pro, Luxul, Simply Reliable, WorkHorse - built-in MM Phono stage and headphone amplifier - stereo and multi-channel SACD playback via HDMI - USB port with compatibility for high-capacity storage formatted with FAT/FAT32 file system - playback from network Music Server and USB storage of formats high resolution DSD DSF/DSDIFF (.dsf/.dff 2.8 MHz, 5.6 MHz, 11.2 MHz), PCM up to 24 bit / 192 kHz (Apple Lossless ALAC 24/96 .m4a/.mp4, FLAC, AIFF, WAV) and PCM 16 bit / 44.1 kHz (MP3, WMA, WAV, AIFF, AAC .aac/.m4a/.mp4/.3gp/.3g2, FLAC, LPCM, Apple Lossless ALAC .m4a/.mp4) - HDMI ports: 7x inputs (6x 2.1 8K/4K 40Gbps, 1x 2.0 4K 9Gbps ​​on front panel) / 3x outputs (1x Main In/Out 2.1 eARC/ARC 8K/4K 40Gbps, 1x 2.1 8K/4K 40Gbps, 1x 2.0 4K 18Gbps) - analog video inputs: 1x set Component Pr/Pb/Y RCA, 2x Composite RCA - S/PDIF digital audio inputs: 2x electric coaxial RCA, 2x optical Toslink - unbalanced stereo analog audio inputs: 4x set L/R RCA, 1x set L/R Phono MM RCA - 13x unbalanced multichannel analog preamp outputs RCA (2x dedicated independent subwoofer outputs) - 2x sets of unbalanced stereo analog audio outputs RCA Zone 2 / Zone B and Zone 3 - 13x pairs of multichannel power output terminals for speakers with nominal impedances between 4 and 16 Ohm, including 1x set L/R Zone 2 and 1x shared L/R Zone 3 / Height 2 set to convey the signal to separate rooms and with the option of dedicating Height 1 and 2 outputs to bi-amplification of the front and/or center speakers - Bluetooth transceiver with bi-directional technology, with transmission of 24-bit audio streams with Qualcomm aptX HD, aptX, AAC, SBC codecs - separate and isolated wireless and wired network communication modules to reduce high-frequency noise and prevent it from interfering with the audio signal - Bluetooth transceiver with bi-directional technology, with transmission of 24-bit audio streams with Qualcomm aptX HD, aptX, AAC, SBC codecs - network interfaces with Quad Core 1.8 GHz NXP Wi-Fi chip (IEEE 802.11 Dual Band a/b/g/n/ac 5 GHz/2.4 GHz) and Ethernet RJ45 (10BASE-T/100BASE-TX) - headphone output with jack socket 6.3 mm on the front panel, compatible with headphones with impedance ranging from 8 to 600 Ohm - 3.5 mm jack microphone input, RS-232 serial control port, 3.5 mm jack IR socket for external sensors, 12 V trigger output with 3.5 mm jack - advanced configuration via OSC menu or from a computer via web browser - remote control and measurement microphone included - optional rack mounting bracket, sold separately - Black finish - dimensions (W x H x D) 435 x 201.5 x 480 mm - weight 22 kg
