Primare NP5 Prism MKII

Intelligent device capable of providing control and connectivity technology to any audio device with a digital input.

AirPlay 2, Bluetooth, Chromecast built-in, Roon Ready, Spotify Connect.

MQA support. Voice control via Google Home and Google Assistant devices.

Control a network NAS with 24/192kHz PCM and DSD128 streaming, via the dedicated Prisma App.

Volume control and input selection for Primare models equipped with RS232 via the Prisma App.

Inputs: Ethernet (LAN), Wireless (WLAN) and USB-A socket.

Digital outputs: RCA SPDIF and Optical TOSLINK, selectable at 48, 96 or 192kHz. RS232.

Dimensions (WxHxD): 143x36x125mm.

Primare Prisma is a connection and control platform, integrating various technologies. The Prisma application is mainly used to configure the operational functions of any Prisma product and control networked hard drives. The associated streaming services are all managed directly by their respective developers, ensuring complete transparency for updating the operating system and music services.

• AirPlay 2
• Bluetooth
• Roon Ready
• MQA
• Spotify Connect
• Chromecast built-in
  - More than 160 streaming services, including Roon
  - Easy connection to the network using the Google Home app
  - Voice control via Google Home and Google Assistant devices
• Multi-room/multi-zone with control via various platforms: AirPlay 2, Spotify Connect, Chromecast built-in and Prisma

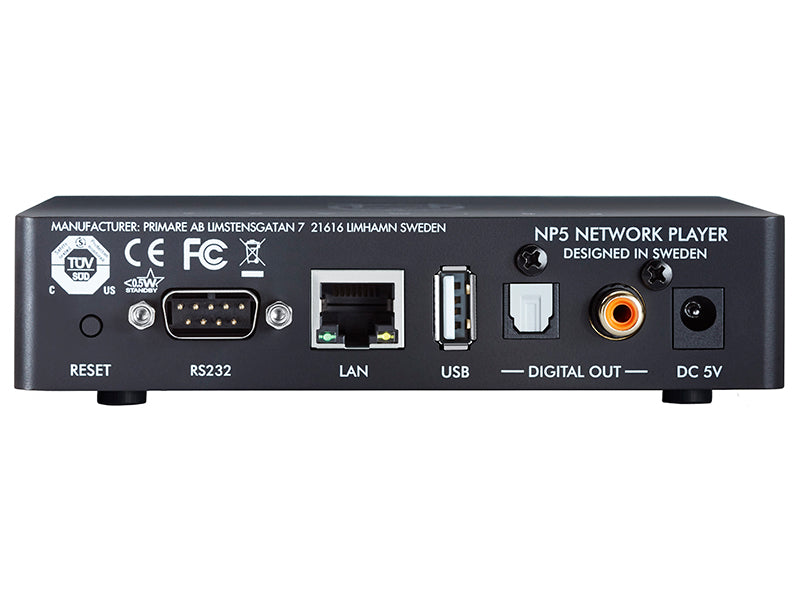

• Inputs: Ethernet (LAN), Wireless (WLAN) and USB-A socket
• Digital Outputs: RCA SPDIF and Optical TOSLINK, selectable at 48, 96 or 192kHz for connection to any DAC
• RS232 socket for control via Prisma APP of previous Primare devices: Volume, Mute, Power on/off, input selection, previous/next
• Network NAS Reader to Play High Resolution 24/192kHz PCM and DSD128 Audio Files

Technical features:

• Digital outputs: coaxial, RCA; optical, TOSLINK
• Output sampling rate, selectable: 48, 96 or 192kHz/24bit
• Digital Input: 1 x USB-A up to 192kHz/24bit; DSD128 (5.6MHz)

• Network Connections
  1 x Ethernet LAN socket
  2 x Internal antennas for Bluetooth and Wi-Fi
  LAN: 10/100Mbit Ethernet
  WLAN: IEEE 802.11 a/b/g/n/ac compliant; 2.4/5GHz; b, g, n modes

• Audio Formats
  WAV, LPCM, AIFF, FLAC, ALAC, WMA, OGG: up to 192kHz/24bit
  MP3, MP4 (AAC): Up to 48kHz/16bit, VBR & CBR 320kbps
  DSD: DSD128 (5.6MHz), MQA

• Streaming
  AirPlay 2
  Bluetooth®
  Chromecast built-in
  MQA
  Roon Ready (pending software update)
  Spotify Connect®
  DLNA/UPnP

• Control: RS232
• Power consumption: Standby <2.9W; Operating <3.6W
• Dimensions (LxWxH)
  143x125x36mm with connectors
  143x120x36mm without connectors
• Weight: 0.5 kg
