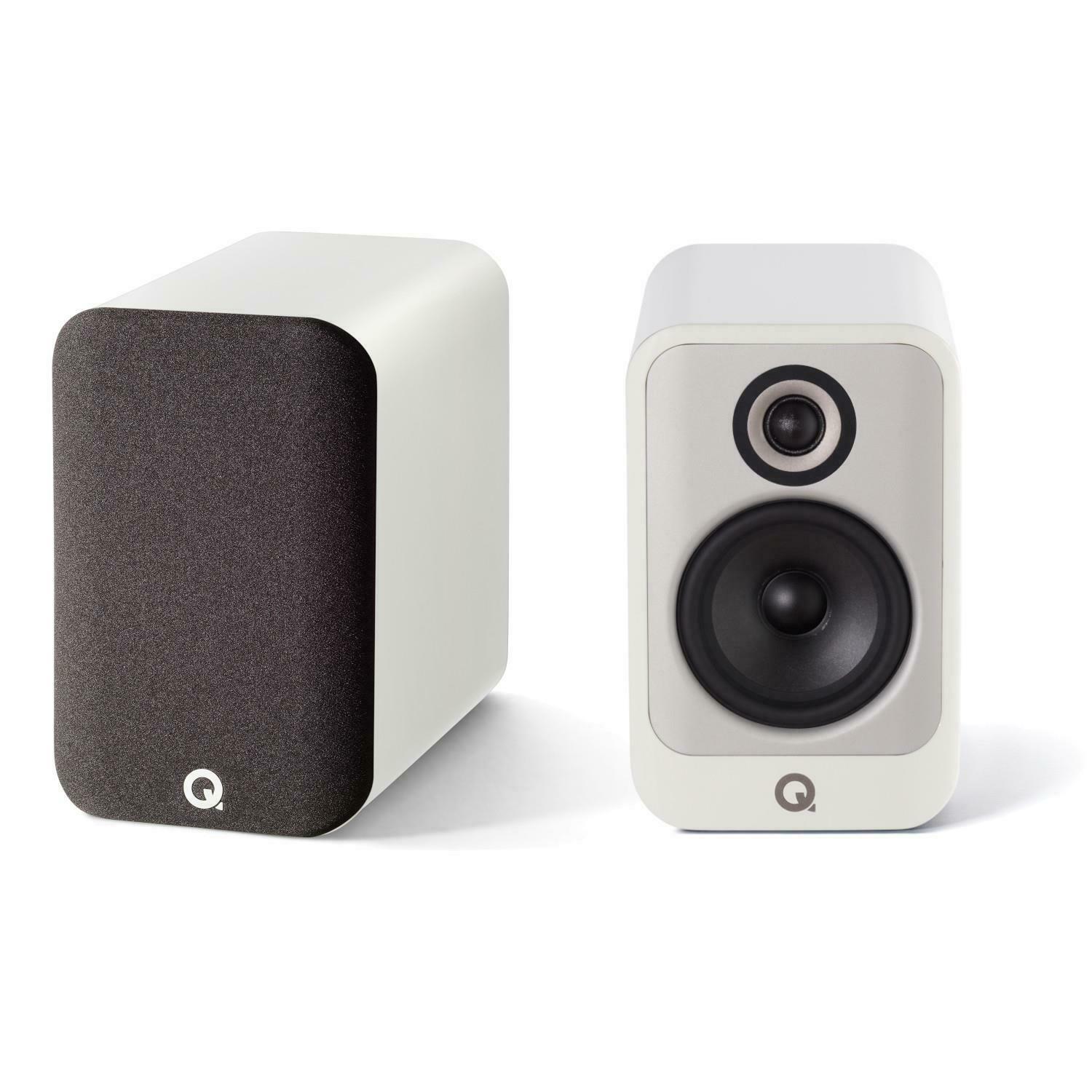

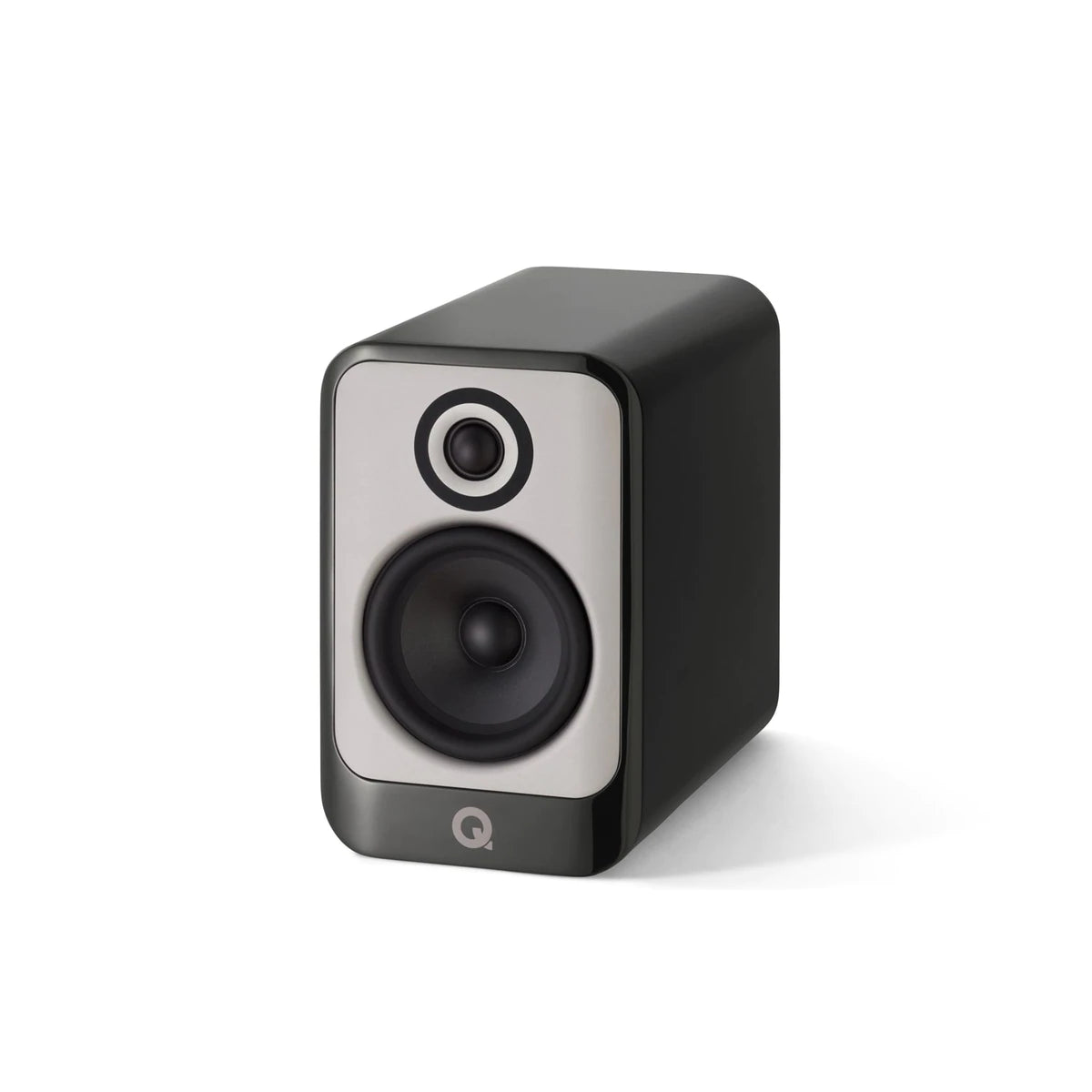

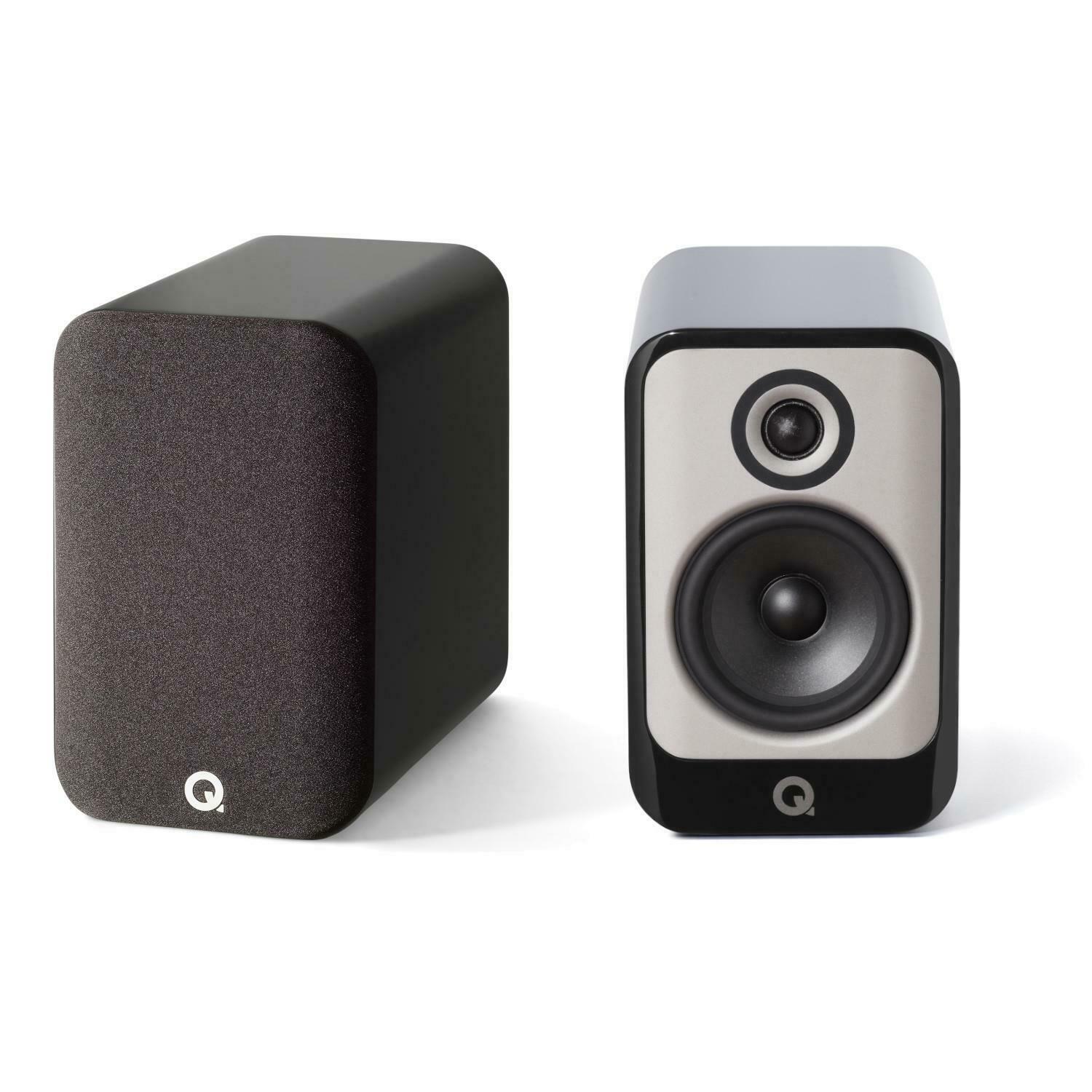

QAcoustics CONCEPT 30

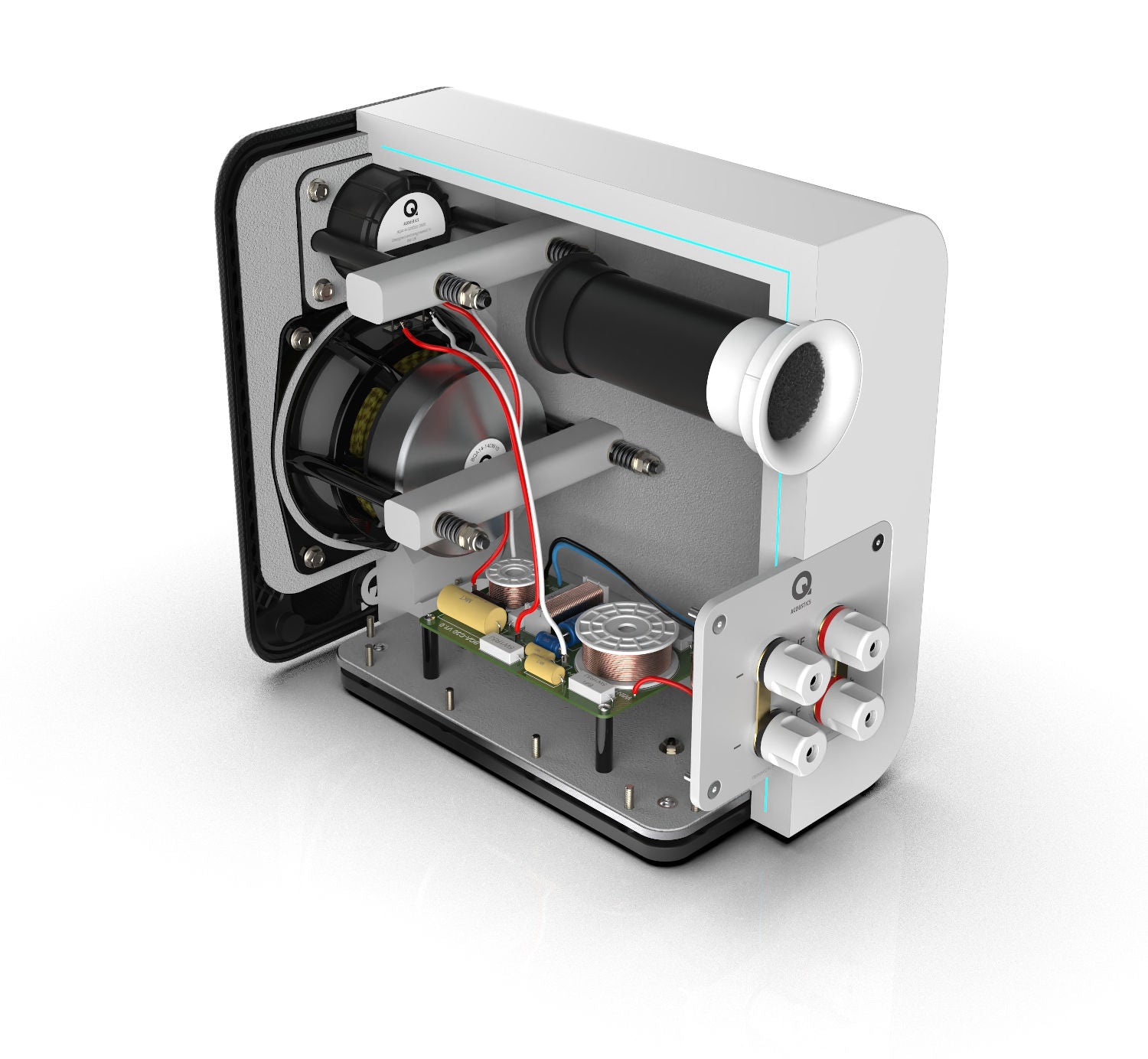

Gelcore™ cabinet construction reduces cabinet noise at higher frequencies.
P2P™ (Point to Point™) internal bracing stiffens the cabinet to minimize low-frequency vibrations.

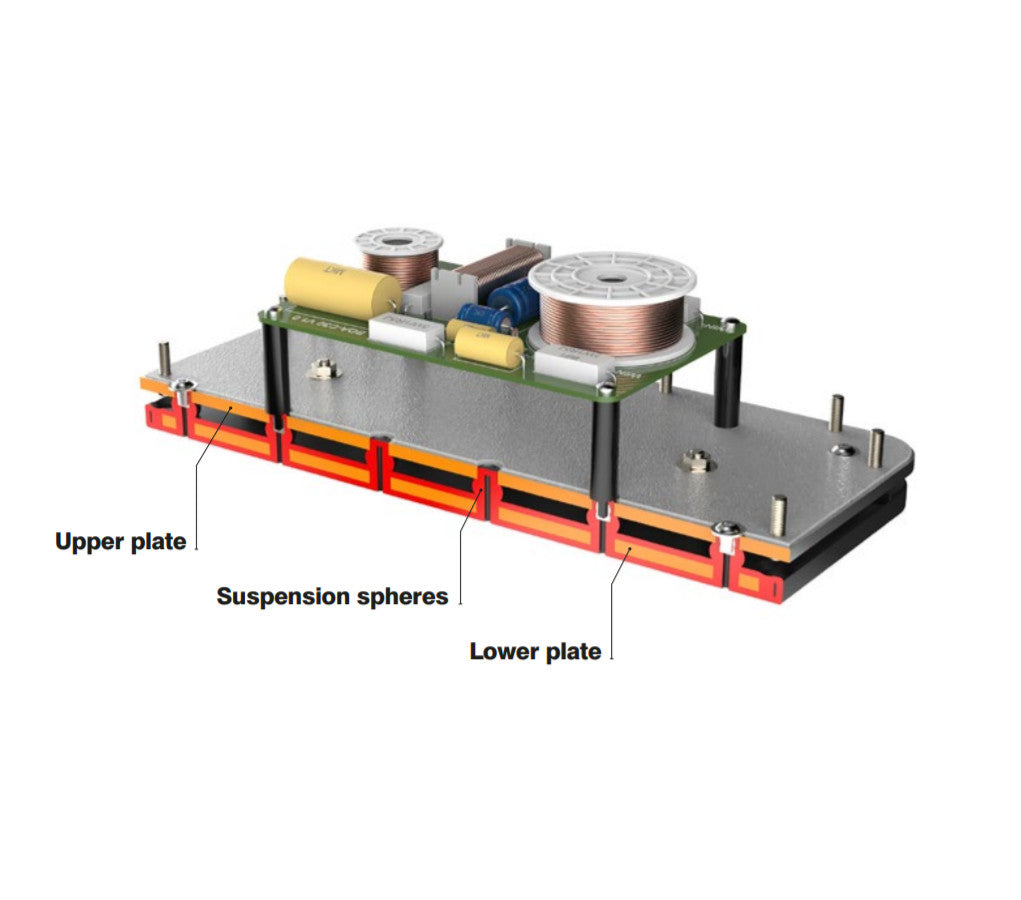

The isolation suspension base eliminates unwanted internal and external vibrations.
The driver assembly is mounted to the front aluminum baffle using pre-loaded pins to ensure proper acoustic sealing, damping vibrations and minimizing structural coupling of the assembly in the main cabinet.
Optimized mid/bass driver and tweeter design for increased power handling.
The high frequency driver is completely hermetically sealed and mechanically isolated (floating) from the front baffle to protect against internal resonances of the mid/bass driver.
The crossover design is mounted on the isolation base, to minimize any microphone pickup and away from the electromagnetic fields radiated by the drive units.
No artificial colouring
Every element of acoustic innovation in Concept 30 is geared toward designing the quietest cabinet possible. Insensitive to internal and external resonances, these speakers deliver focused stereo imaging, accurate audio, and an extended holographic soundstage to emulate a live performance in your home.
All of our anti-resonance innovations allow the cutting-edge complement of free-firing drivers to get on with the job of delivering the most realistic and immersive sound ever heard at this price.
Specifications
Bass unit 1 x 125 mm (5.0 inches)
1 x 25mm (0.9 inch) high unit
Frequency response (-6dB) 54 Hz - 30 kHz
Nominal impedance 6 Ω
Minimum impedance 3.9 Ω
Sensitivity (2.83 V @ 1 kHz) 87 dB/w/m
Recommended amplifier power 25-100W
Crossover frequency 2.4 kHz
Distortion (120Hz - 20kHz, @2.83Vrms) <0.2%
Effective volume 7.0 L
Dimensions (per speaker / HxWxD) 284 x 180 x 319 mm (11.2 x 7.1 x 12.6 inches)
Weight (per speaker) 7.9 kg (17.4 lbs)
In the box
2 Concept 30 speakers
2 foam caps
1x User Manual
