Rotel Michi S5 - Stereo Power Amplifier

Rotel Michi S5 Stereo Power Amplifier
The Michi S 5 stereo amplifier delivers 500 watts per channel into 8 ohm loads with best-in-class performance. The dual-mono construction uses independent, oversized toroidal transformers for each channel, manufactured in-house, ensuring exceptional low-end with maximum control and precision of every detail, all in a sleek new design.

DIMENSIONS (WXDXH)
485 × 238 × 465mm
19" × 9.375" × 18.25"

FRONT PANEL HEIGHT
220mm

DIET
230V, 50Hz

ABSORPTION
1200W

STANDBY POWER CONSUMPTION
Normal: <0.5W
Network enabled: <2W

NET WEIGHT
59.9kg

BTU (4ohm, to 1/8th power)
3450 BTU/h

CONTINUOUS OUTPUT POWER
500 watts per channel (8ohm)
800 watts per channel (4ohm)

TOTAL HARMONIC DISTORTION)
<0.008%

FREQUENCY RESPONSE
20Hz - 20kHz (+0dB, -0.15dB)
10Hz - 100kHz (+0dB, -0.4dB)

S/N RATIO (IHF “A” weighted)
120dB

I EARN
Unbalanced inputs (RCA): 28dB
Balanced inputs (XLR): 24dB

Product Description

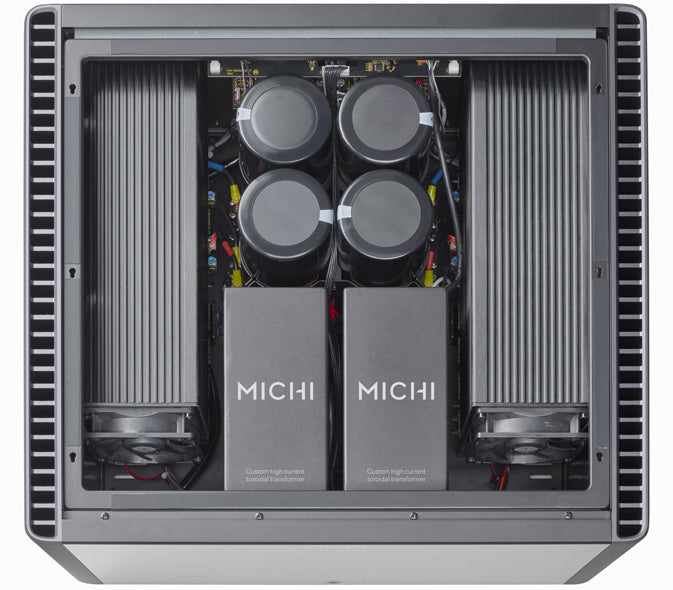

The Michi S5 stereo power amplifier is the best Class AB linear amplifier in its class, capable of delivering 500 watts into 8 ohms and over 800 watts into 4 ohms. Dual-mono construction features oversized 2,200 VA independent toroidal transformers for each channel, manufactured in-house and encased in individual epoxy-filled enclosures to eliminate noise and vibration. A set of four English-made 188,000 uF filter capacitors ensures exceptional low-end control and precision of every detail, while 32 high-current devices in the output stages ensure smooth power delivery under the most demanding load conditions.

Excellent audio performance is achieved by combining careful design with meticulous tuning. This is demonstrated by the S5 preamplifier, where countless hours of design, testing, and critical evaluation of the most important components have resulted in the accuracy and fidelity of reproduction worthy of the Michi brand.

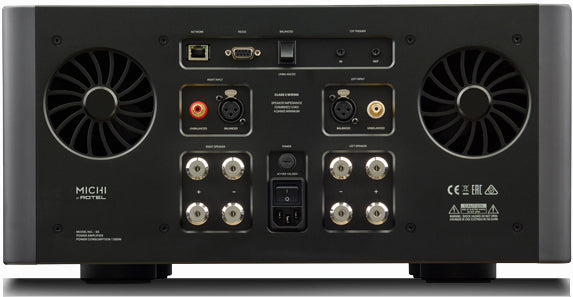

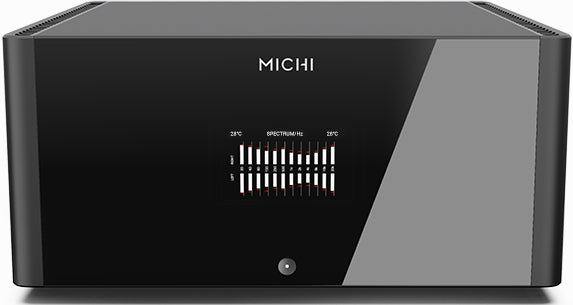

This amplifier features a sleek design, a color front display, and exclusive dual rhodium-plated, high-current output terminals. The included remote control allows for easy setup and control, while RS232 and Ethernet interfaces facilitate integration with all popular automation systems.

Other Specifications

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
350

DIFFUSER IMPEDANCE
minimum 4 ohms

INPUT SENSITIVITY
Unbalanced inputs (RCA): 2.6V
Balanced inputs (XLR): 4.2V

INPUT IMPEDANCE
Unbalanced inputs (RCA): 12.5kohm
Balanced inputs (XLR): 100kohm

CHANNEL SEPARATION / CROSSTALK
>65dB
