The beating heart of Frankie hybrid preamplifier, the line amplifier, is made up of 4 double 6DJ8 triodes in balanced SRPP configuration with active cascode mosfet current sink.
The circuit, with zero feedback, benefits from 4 separate power supplies regulated with discrete components. The volume control is once again our “golden ladder”, the attenuator developed internally and used in all our products.
This attenuator, consisting of fixed resistors switched by relays, has a precision and quality superior to common analog or digital potentiometers. The solid-state phono input is suitable for both MM and MC cartridges, benefits from a discrete FET input with very low noise, a completely passive RIAA network and balanced output.

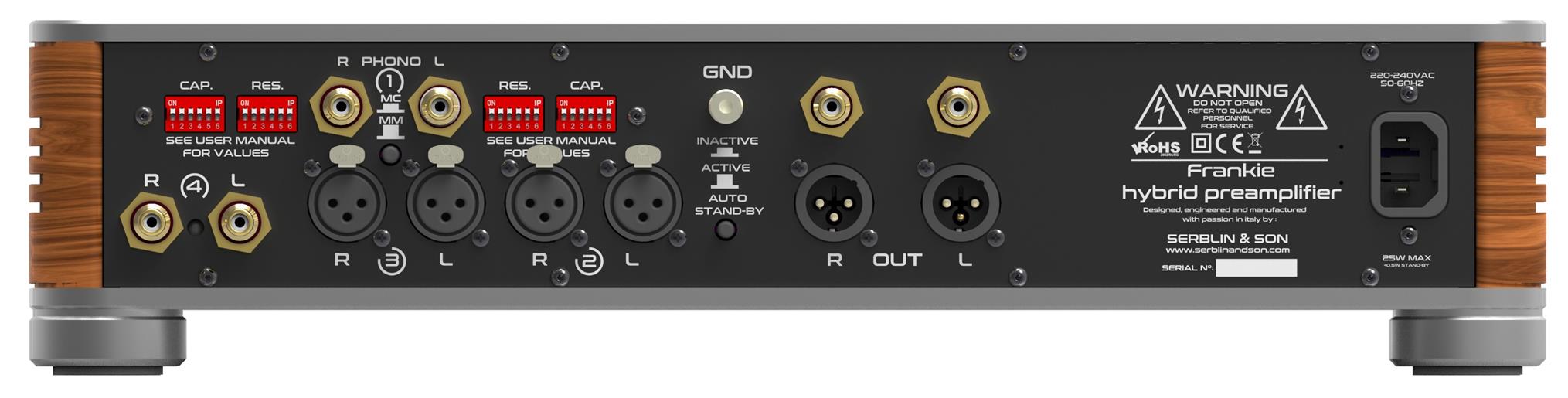

The dip switches on the rear panel provide a wide range of capacitance and resistance adjustments for the head interface.
Of course, the phono board has its own dedicated power supply. The preamplifier can be controlled both via the iOS and Android app and via infrared remote control simultaneously.
The Frankie hybrid preamp was designed to be the ideal partner to the Frankie monoblock .
The circuit, with zero feedback, benefits from 4 separate power supplies regulated with discrete components. The volume control is once again our “golden ladder”, the attenuator developed internally and used in all our products.
This attenuator, consisting of fixed resistors switched by relays, has a precision and quality superior to common analog or digital potentiometers. The solid-state phono input is suitable for both MM and MC cartridges, benefits from a discrete FET input with very low noise, a completely passive RIAA network and balanced output.
The dip switches on the rear panel provide a wide range of capacitance and resistance adjustments for the head interface.
Of course, the phono board has its own dedicated power supply. The preamplifier can be controlled both via the iOS and Android app and via infrared remote control simultaneously.
The Frankie hybrid preamp was designed to be the ideal partner to the Frankie monoblock .

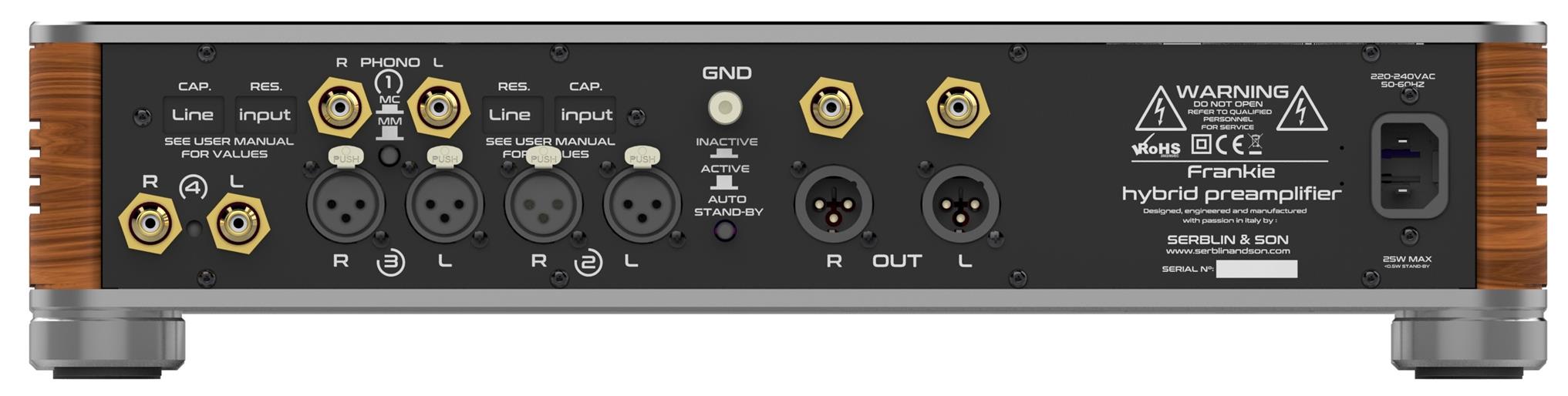

The preamplifier is available with integrated MM/MC phono card or with additional RCA line input card as shown in the images.
The choice of one or the other solution when purchasing the unit can be easily reviewed at a later time
The choice of one or the other solution when purchasing the unit can be easily reviewed at a later time

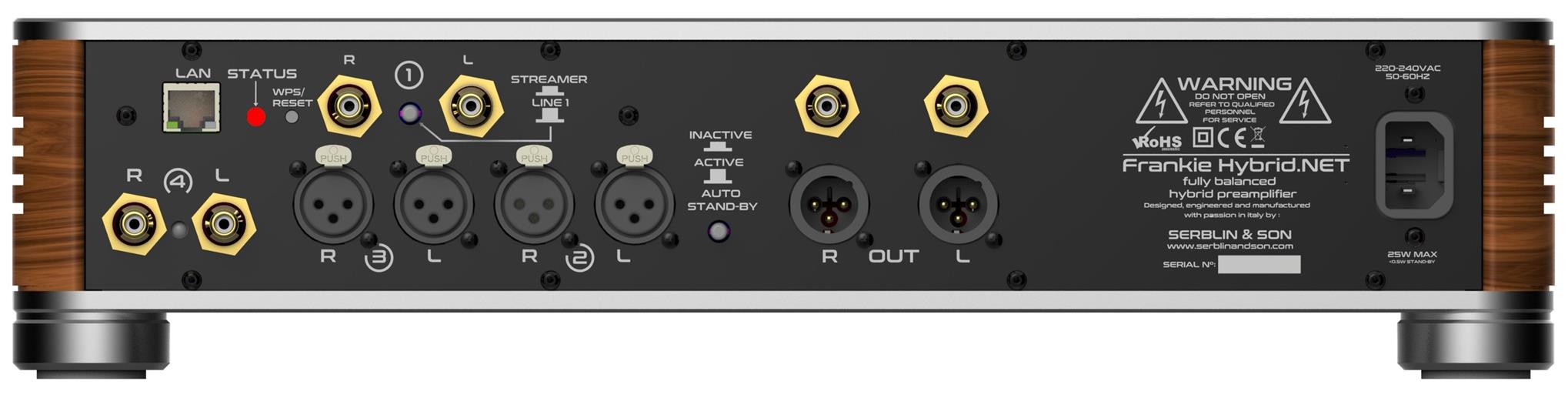

A “NET” version is also available which contains the same streamer module used in the Frankie Plus integrated amplifier with WiFi/Lan/Bluetooth (AptX) 2.4/5.0ghz, AirPlay2, UPnP/DLNA, OpenHome, Spotify Connect, Tidal, Qobuz HTTP, HTTPS, internet radio functions.
Technical data
- SRPP balanced circuit with double triodes
- Inputs: 2x XLR line, 1x RCA line, 1x Phono MM/MC
- Outputs: 1x XLR, 1x RCA.
- Auto standby after approximately 20 minutes of no input signal (can be disabled with a button on the rear panel).
- Standby power consumption < 0.5w (compliant with Ecodesign Directive 2009/125/EC)
- Remote control: Android & iOS App + infrared remote control included.
- Power supply (220-240v/50-60hz)
- Dimensions mm: 430 x 317 x 78 (LxDxH) including protruding parts
- Net weight: 10kg
