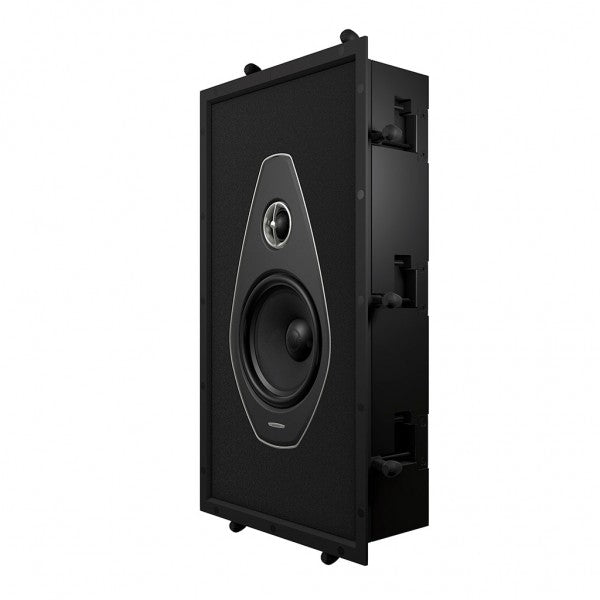

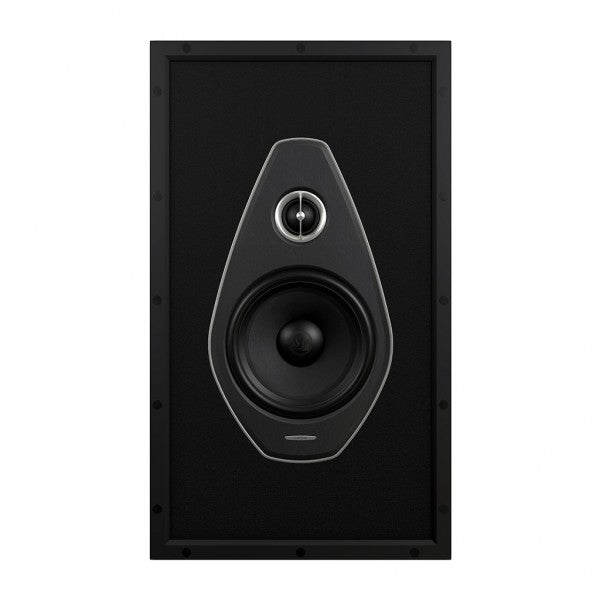

Sonus Faber Palladio PW-662 Level 6 - In-Wall Speaker

Palladium PW-662 Level 6

This line of in-wall and ceiling speakers directly recalls
the Olympica Nova Collection in the choice of materials, in the electroacoustic project and in the design.

They represent a unique choice in the Custom Installation panorama: the first built-in speakers that furnish.

PALLADIO: THE NEW CUSTOM INSTALLATION
In the panorama of modern architectural speakers, a solution was missing that could provide a product with a warm and enveloping sound that guaranteed an approach aimed at high artisanal quality, also suitable for less traditional listening environments. With Palladio Collection we achieve this goal: to bring the emotion of a natural musical experience everywhere, in a total sound immersion thanks to versatile and, moreover, aesthetically valuable solutions.

THE VOICE OF SONUS FABER
It is the typical vocality of our loudspeakers in the reproduction of medium and high frequencies: a natural sound obtained thanks to the use of those design solutions that are our signature. The 29 mm silk dome tweeter is equipped with DAD (Damped Apex Dome™) technology, just like in the transducers of traditional passive speaker lines. The speakers dedicated to the reproduction of the medium and medium-low range use membranes made of natural fiber and cellulose pulp, the special Sonus faber recipe.

LEVEL 6 AND OLYMPICA NOVA: CUSTOM SOUND
The Level 6 models make use of construction standards typical of the higher Sonus faber ranges, in particular with regards to the choice of materials.
The brand's style is recognizable not only in the leather covering of the Sonus faber Voce, but also in the Premium Kit, an additional accessory for the PL-664 and PW-662 models.

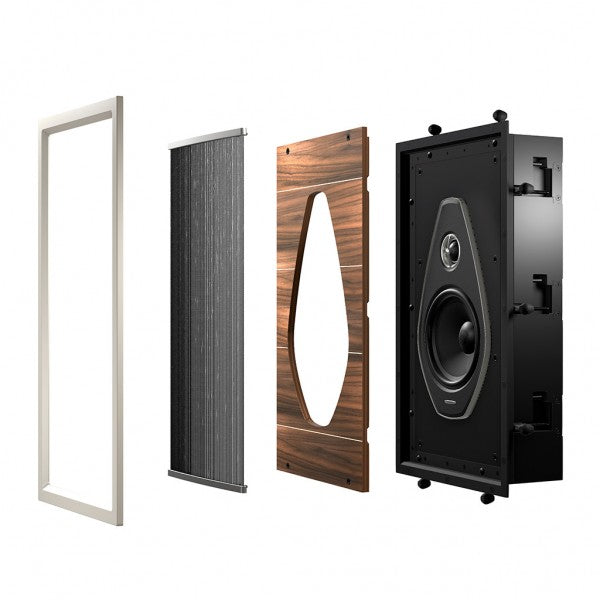

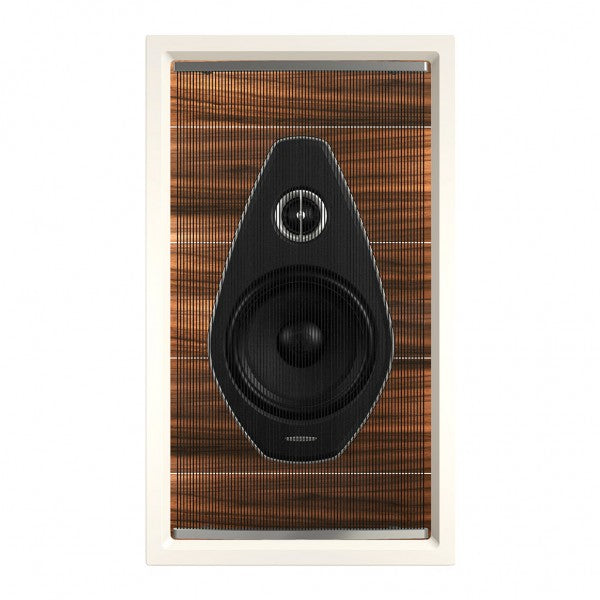

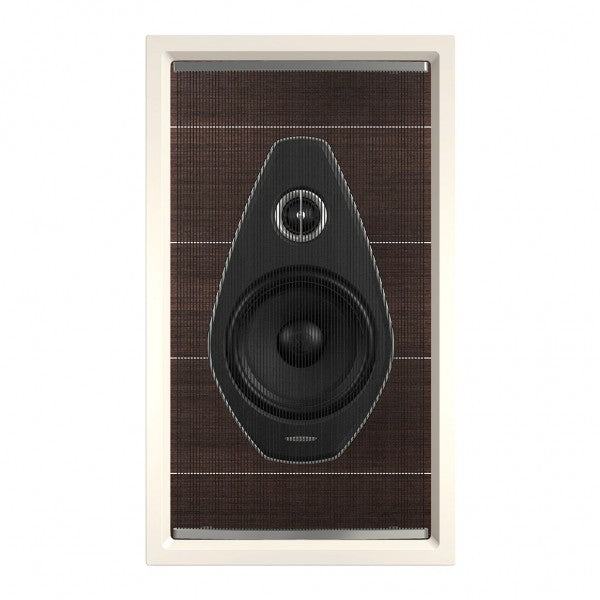

The kit is composed of three elements: a wooden front panel in walnut or wenge essence with maple inlays; a paintable magnetic frame, to cover the aluminum edges and make the speaker perfectly integrated into any environment; the cable tensioner mask, an iconic design element of the most prestigious Sonus faber ranges.

A VERSATILE DESIGN
3 models (PC-664P, PL-664, PW-662) are supplied with wooden cabinets in order to increase their versatility of use, especially in cases where acoustic insulation is particularly critical.
The rear cabinet of these speakers ensures better acoustic isolation from other environments and, at the same time, allows more precise control of the acoustic loading of the speaker. The PL-664 model is designed to be installed both horizontally and vertically according to different needs by simply repositioning the mid-high section. The wooden panel is available in two versions to allow both orientations.

EASY TO INSTALL AND CUSTOMIZE
All models are accompanied by a magnetic metal frame without edges that allows the speaker to disappear into the environment. For the ceiling models, a second square magnetic frame is available to allow greater freedom of choice. The frame is suitable for painting, making the installation completely customizable. From the installation point of view, the fixing system with clamps allows anchoring on plasterboard surfaces quickly and safely. All the ceiling models of the Palladio collection (except PC-664P and PC-563P) can be completed with the pre-assembly kit, an optional accessory for installations in new buildings.

Technical specifications

SYSTEM
2 way in wall.
Sealed box enclosure

LOUDSPEAKER
DAD™ driver tweeter: 29 mm / 1.1''
Midrange: -
Woofer: 165mm / 6.5''

POWER OUTPUT
40 – 200W
Undistorted signal

DIMENSIONS
Frame outer: 496 x 288 mm / 19.5 x 11.3''
Cut out: 473 x 265 / 18.6 x 10.4'''
Depth behind surface: 100 mm / 4''
Protrusion: 15mm / 0.59''
