Stax
STAX SRM-700T - Tube Headphone Amplifier - New - CALL FOR PRICE
SRM-700T - Tube Headphone Amplifier - New!
The "6SN7" GT tubes are used for the output stage, while the customized low-noise dual FET transistors are used for the primary stage. The 6SN7 tubes, which are derived from the original 6FQ7 tubes, are characterized by simple and powerful performance. For this hybrid amplifier, the high-quality load resistor with non-inductive winding from VISHAY Co. is used. As a result, the warm and spacious sound of the tubes has been further improved, with the addition of precision and dynamic reproduction.
Specifications
● Type: FET - Tube Hybrid Amplifier
● 6SN7 valves
● Frequency response: DC - 100kHz (with a SR - 009S)
● Gain: 60dB
● Harmonic distortion: 0.01% or less (1kHz/100Vrms output)
● Input impedance : 50k Ω (RCA), 50k Ω x 2 (XLR)
● Maximum output voltage : 340Vrms (1kHz)
● Bias : PRO 580V
● Operating temperature/humidity: 0 - 35 degrees C / less than 90% (non-condensing)

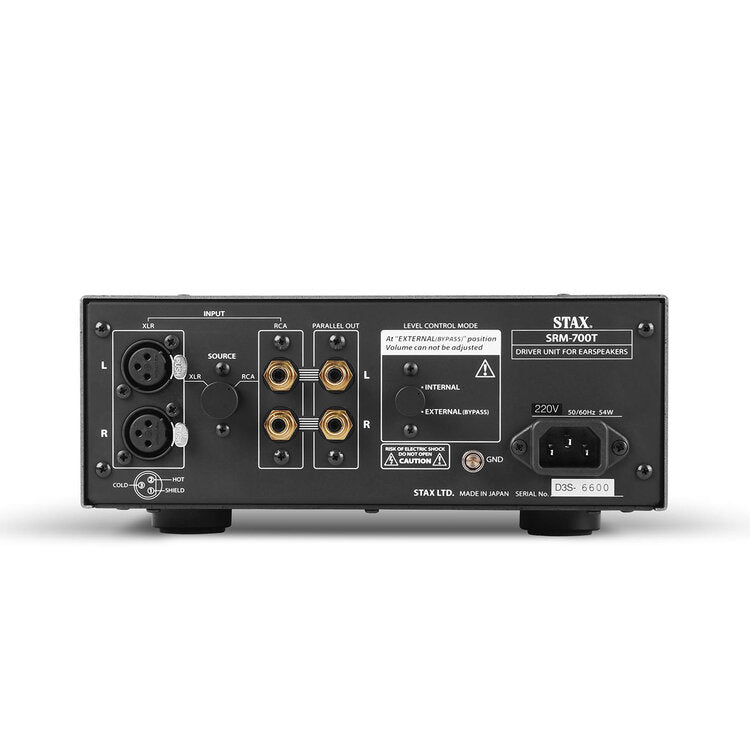

● Inputs: RCA x 1, XLR x 1
● Output: RCA parallel
● Consumption: 54W
● Dimensions: 240 (W) x 103 (H) x 393 (D) mm
● Weight: 5.7kg
